Запчасти Case IH 1010 (09A-20) - REEL DRIVE SHIELD (09) - CHASSIS/ATTACHMENTS

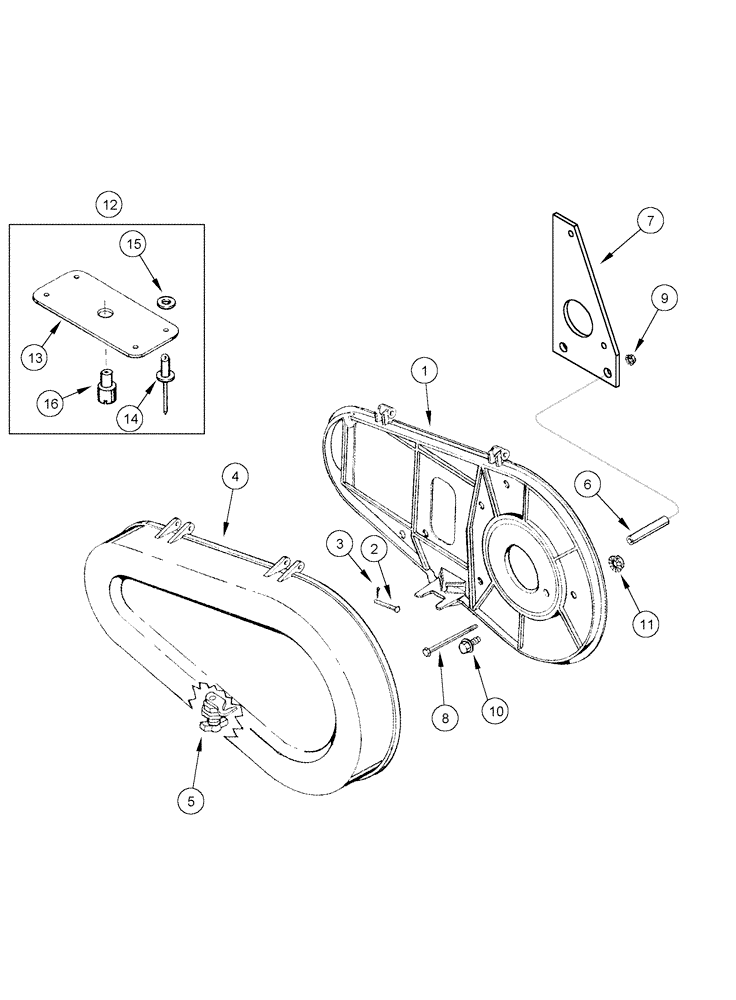

Схема запчастей Case IH 1010 - (09A-20) - REEL DRIVE SHIELD (09) - CHASSIS/ATTACHMENTS
15
4
9
6
16
5
13
12
14
2
8
3
7
1
10
11

Артикул

Название

Примечание

Количество

1

258980A1

SUPPORT

reel drive shield, inner

1шт.

2

86624075

HEADED PIN,6.35mm OD x 44.45mm L

2шт.

3

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

4

258981A1

SHIELD

reel drive

1шт.

5

291944A1

LATCH

reel drive shield

1шт.

6

465593R1

SPACER,12.5mm ID x 17.14mm OD x 63.5mm L

1шт.

7

280262A1

SUPPORT

shield, outer

1шт.

8

280275

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

1шт.

9

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

10

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

11

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

12

NSS

NOT SOLD SEPARAT

Package, Latch

1шт.

Australia Only

1шт.

Includes 13 - 16

1шт.

13

291637A1

SUPPORT

shield latch access

1шт.

14

151-506

RIVET,Pop, 1/8" x .400", Stainless

4шт.

15

292035A1

WASHER

rivet back-up

4шт.

16

291945A1

LATCH

reel drive shield

1шт.

Выбрано товаров: 18
