(09A-16) - PICKUP REEL 6 BAT WITH STEEL TINES - AUXILIARY

Запчасти Case IH 1010 (09A-16) - PICKUP REEL 6 BAT WITH STEEL TINES - AUXILIARY (09) - CHASSIS/ATTACHMENTS

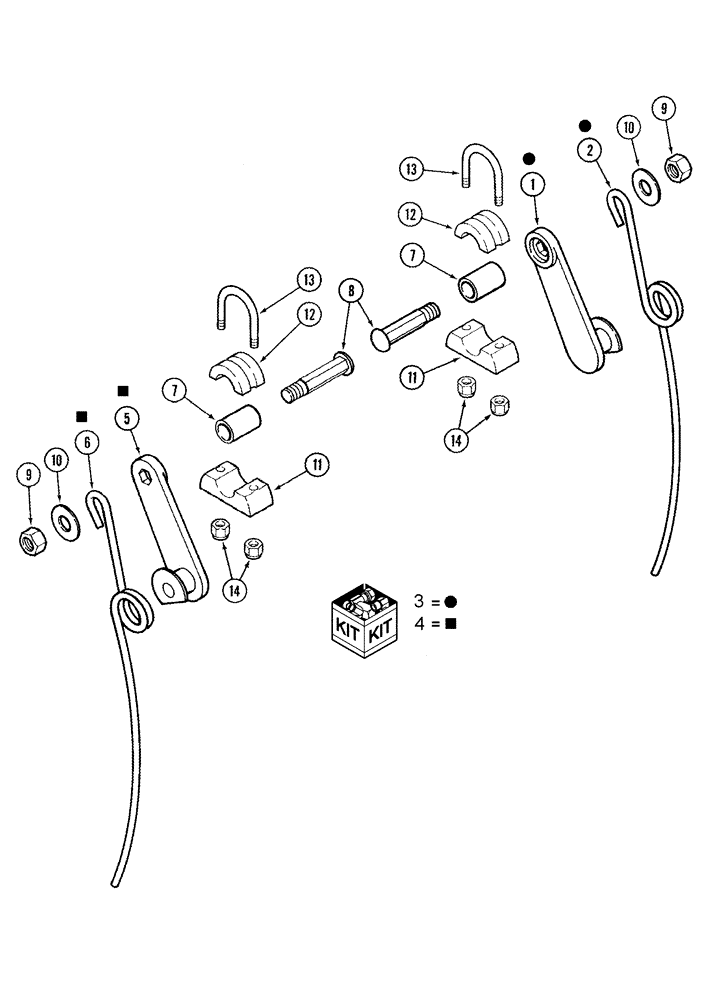

Схема запчастей Case IH 1010 - (09A-16) - PICKUP REEL 6 BAT WITH STEEL TINES - AUXILIARY (09) - CHASSIS/ATTACHMENTS
4
8
13
14
7
4
2
11
12
10
10
14
3
5
3
6
4
9
1
13
7
3
12
11
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

592627R21

STRAP

finger

1шт.

2

167652C1

TINE,Coiled, 1 Prong, 437mm L

LH

1шт.

3

167605C91

TINE

auxiliary pickup, LH

6шт.

Includes 1, 2

1шт.

4

167606C91

TINE

auxiliary pickup, RH

6шт.

Includes 5, 6

1шт.

5

592627R21

STRAP

finger

1шт.

6

167651C1

TORSION SPRING

RH

1шт.

7

598246R1

SPACER

9/16 ID x 1 1/4"

12шт.

7

1316568C1

SPACER

.51 X .84 X 1.12 tube

12шт.

Used With 52 Inch Reel

1шт.

8

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

round head hex shank, special, 1/2 NF x 2 1/2"

12шт.

8

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

Used With 52 Inch Reel

1шт.

9

827386C1

FLANGE NUT

hex flange, 1/2" NF

12шт.

9

9411648

LOCK NUT,1/2"-20, GC

1шт.

Used With 52 Inch Reel

1шт.

10

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

12шт.

10

495-81024

WASHER,17/32" x 1 1/4" x .060"

12шт.

10

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

12шт.

Used With 52 Inch Reel

1шт.

11

598234R1

BASE

bearing

36шт.

Used With 52 Inch Reel

1шт.

12

598235R1

BEARING CAP,1.025"

BEARING

36шт.

Used With 52 Inch Reel

1шт.

13

598236R1

U-BOLT,U, 1/4" - 20

BOLT "U" 1/4 x 2"

36шт.

Used With 52 Inch Reel

1шт.

14

280129

NUT,1/4"-20

72шт.

Used With 52 Inch Reel

1шт.
