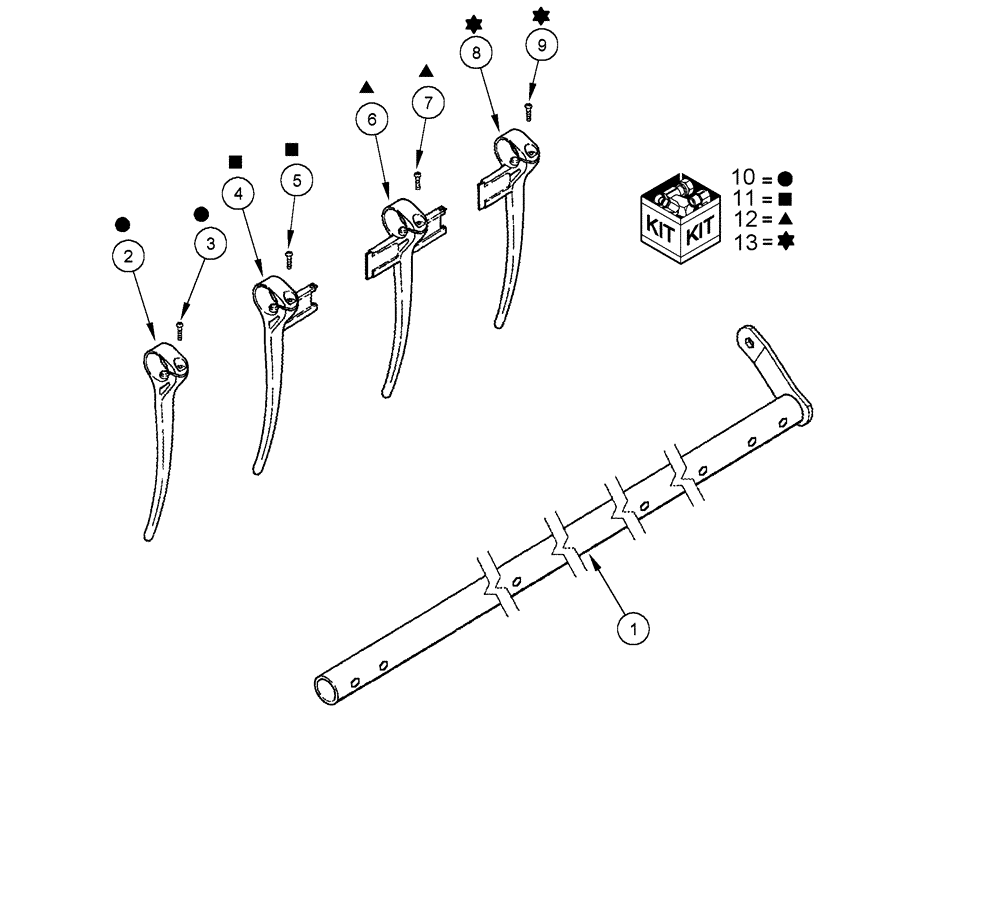

Запчасти Case IH 1010 (09A-15) - PICKUP REEL - BAT AND PLASTIC TINES (FINGERS) - ASN JJC0305000 (09) - CHASSIS/ATTACHMENTS

1

427425A1

TUBE

bat 15.0 foot plastic tine

6шт.

1

427427A1

TUBE

bat 17.5 foot plastic tine

6шт.

1

427428A1

TUBE

bat 20.0 foot plastic tine

6шт.

1

427429A1

TUBE

bat 22.5 foot plastic tine

6шт.

1

427430A1

TUBE

bat 25.0 foot plastic tine

6шт.

1

427431A1

TUBE

bat 30.0 foot plastic tine

6шт.

2

NSS

NOT SOLD SEPARAT

Tines (Fingers)

10шт.

3

126173A1

SELF-TAP SCREW

hex washer head, slotted, special, 3.5 x 1.3 x 16 mm

10шт.

4

NSS

NOT SOLD SEPARAT

Tines (Fingers)

10шт.

5

126173A1

SELF-TAP SCREW

hex washer head, slotted, special, 3.5 x 1.3 x 16 mm

10шт.

6

NSS

NOT SOLD SEPARAT

Tines (Fingers)

10шт.

7

126173A1

SELF-TAP SCREW

hex washer head, slotted, special, 3.5 x 1.3 x 16 mm

10шт.

8

NSS

NOT SOLD SEPARAT

Tines (Fingers)

10шт.

9

126173A1

SELF-TAP SCREW

hex washer head, slotted, special, 3.5 x 1.3 x 16 mm

10шт.

10

410859A1

PACKAGE, REPAIR

reel tine end

1шт.

Includes 2, 3

1шт.

11

410858A1

PACKAGE, REPAIR

reel tine RH

1шт.

Includes 4, 5

1шт.

12

410856A1

PACKAGE, REPAIR

reel tine full

1шт.

Includes 6, 7

1шт.

13

410857A1

PACKAGE, REPAIR

reel tine LH

1шт.

Includes 8, 9

1шт.
