Запчасти Case IH 1010 (09A-13) - PICKUP REEL BAT AND STEEL TINE ASSY - BSN JJC0304999 (09) - CHASSIS/ATTACHMENTS

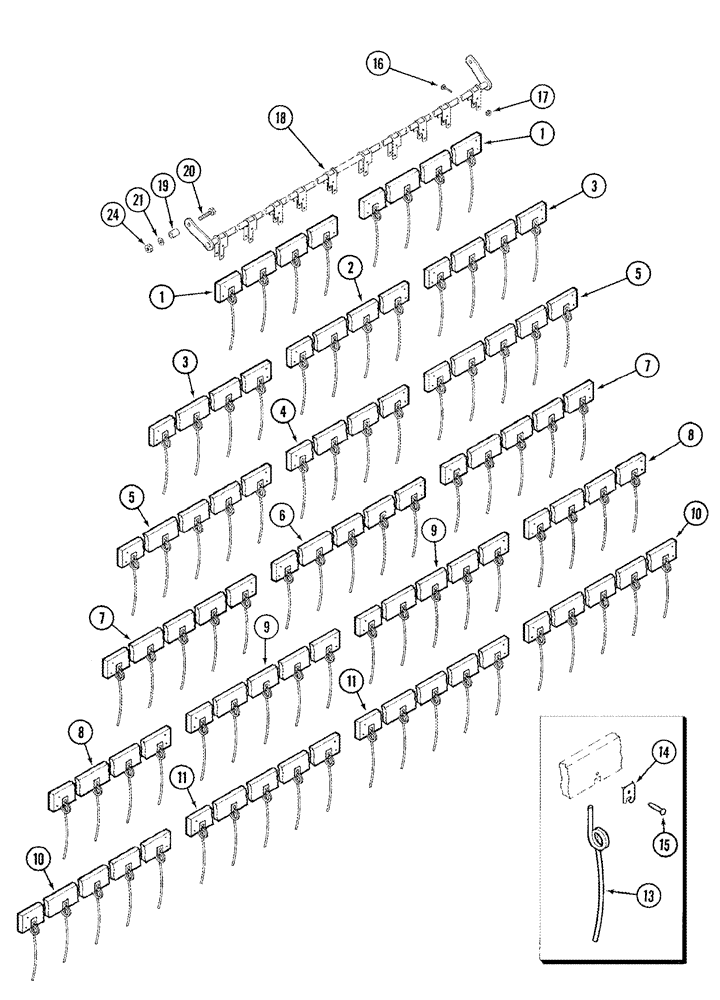

Схема запчастей Case IH 1010 - (09A-13) - PICKUP REEL BAT AND STEEL TINE ASSY - BSN JJC0304999 (09) - CHASSIS/ATTACHMENTS
3
15
10
13
17
11
8
2
7
7
21
14
6
3
10
20
9
16
11
1
5
24
8
18
4
1
9
5
19

Артикул

Название

Примечание

Количество

1

1326605C91

BAT

with steel tines (15.0 foot)

12шт.

Includes 13, 14, 15

1шт.

2

1316258C91

BAT

with steel tines (17.5 foot)

6шт.

Includes 13, 14, 15

1шт.

3

1316259C91

BAT

with steel tines (17.5 and 20.0 foot)

12шт.

Includes 13, 14, 15

1шт.

4

1316259C91

BAT

with steel tines (17.5 and 20.0 foot)

6шт.

Includes 13, 14, 15

1шт.

5

1316260C91

BAT

with steel tines (20.0 foot)

12шт.

Includes 13, 14, 15

1шт.

6

1316265C91

BAT

with steel tines (22.5 foot)

6шт.

Includes 13, 14, 15

1шт.

7

185864C91

BAT

with steel tines (22.5 foot)

12шт.

Includes 13, 14, 15

1шт.

8

598170R91

BAT

with steel tines (25.0 foot)

12шт.

Includes 13, 14, 15

1шт.

9

167676C91

BAT

with steel tines (25.0 foot)

12шт.

Includes 13, 14, 15

1шт.

10

1316264C91

BAT

with steel tines (30.0 foot)

12шт.

Includes 13, 14, 15

1шт.

11

1316265C91

BAT

with steel tines (22.5 foot)

12шт.

Includes 13, 14, 15

1шт.

13

598171R1

TINE,Coiled, 1 Prong, 283mm L

tooth

1шт.

14

592616R1

CLIP

1шт.

15

23055R1

RIVET,Tr Hd, 3/16" x 1"

1шт.

16

412-422

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1 3/8", Gr 2

1шт.

17

230-4114

NUT,1/4"-20, GA

1шт.

18

1326604C1

SHAFT

bat (15.0 foot)

6шт.

18

1316267C1

SHAFT

bat (17.5 foot)

6шт.

18

1316268C1

SHAFT

bat (20.0 foot)

6шт.

18

1316269C1

SHAFT

bat (22.5 foot)

6шт.

18

1316270C1

SHAFT

bat (25.0 foot)

6шт.

18

1316271C1

SHAFT

bat (30.0 foot)

6шт.

19

1316568C1

SPACER

.51 X .84 X 1.12 tube

12шт.

52 Inch Reel With Steel Tines

1шт.

20

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

52 Inch Reel With Steel Tines

1шт.

21

495-81024

WASHER,17/32" x 1 1/4" x .060"

12шт.

24

86992215

LOCK NUT,1/2"-13, GC

12шт.

Выбрано товаров: 39
