Запчасти Case IH 1010 (09A-12) - PICKUP REEL 6 BAT WITH PLASTIC OR STEEL TINES - ASN JJC0305000 (09) - CHASSIS/ATTACHMENTS

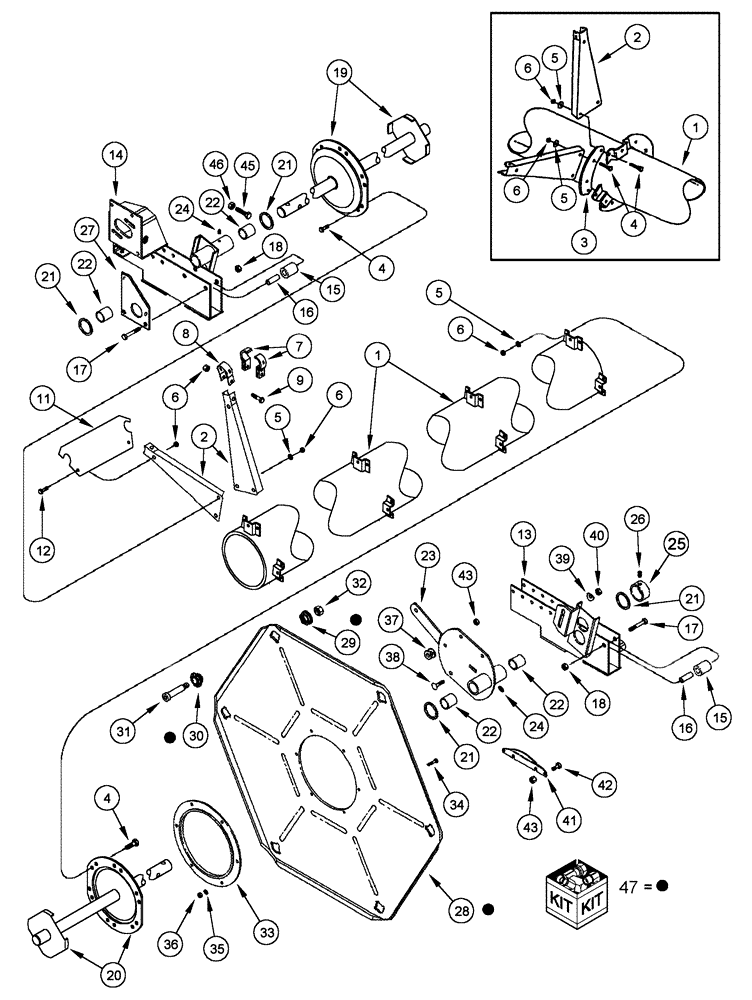

Схема запчастей Case IH 1010 - (09A-12) - PICKUP REEL 6 BAT WITH PLASTIC OR STEEL TINES - ASN JJC0305000 (09) - CHASSIS/ATTACHMENTS
18
6
5
23
21
32
6
6
40
34
6
39
11
33
15
35
47
2
27
24
5
29
19
24
12
47
46
30
22
6
28
37
1
42
7
8
5
14
17
21
17
21
3
4
22
20
43
18
31
41
45
22
38
4
21
9
22
1
26
16
2
47
36
15
5
16
25
4
13
43
47

Артикул

Название

Примечание

Количество

1

427452A1

SHAFT

15.0 foot center tube

1шт.

1

427454A1

SHAFT

17.5 foot center tube

1шт.

1

427455A1

SHAFT

20.0 foot center tube

1шт.

1

427456A1

SHAFT

22.5 foot center tube

1шт.

1

427457A1

SHAFT

25.0 foot center tube

1шт.

1

427458A1

SHAFT

30.0 foot center tube

1шт.

2

1347083C1

ARM

reel

1шт.

3

427418A1

PLATE

spider arm anchor

1шт.

4

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

5

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

6

87030549

NUT,M10 x 1.5, Cl 10

1шт.

7

1347084C1

CLAMP,50.8 mm ID x 25.4 mm

reel arm

1шт.

8

1347085C1

STRAP

bearing

1шт.

9

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

11

1989433C2

SHIELD

RH end

6шт.

12

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

13

277363A1

BRACKET

pickup reel support, LH

1шт.

14

277361A2

BRACKET

pickup reel support, RH

1шт.

14

277358A2

BRACKET

pickup reel support, RH

1шт.

15

1316328C1

SHIFTER ROLLER

reel support

4шт.

16

280505A1

SPACER

3/4"

3шт.

17

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

3шт.

18

86992215

LOCK NUT,1/2"-13, GC

3шт.

19

427411A1

SHAFT

driving end, 15.0, 20.0 and 22.5 foot

1шт.

19

291313A1

SHAFT

drive end HCC ML LVL2 pickup reel

1шт.

20

427412A1

SHAFT

driven end 8" OD

1шт.

21

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

4шт.

22

167666C1

BUSHING

roller frame

4шт.

23

114938A2

FRAME

eccentric roller

1шт.

24

80720

LUBE NIPPLE,30 Degree, 1/8"-27 NPT x .91" lg

1шт.

25

114943A1

COLLAR

locking

1шт.

Includes 26

1шт.

26

878-1106

SET SCREW,Hex Skt, M10 x 6mm, Cup Pt

2шт.

27

280262A1

SUPPORT

shield, outer

1шт.

28

NSS

NOT SOLD SEPARAT

Shield

1шт.

29

114951A1

BEARING,52.4 mm OD x 14.5 mm

CUP tapered roller bearing (Female thread)

6шт.

30

114952A1

BEARING,52.4 mm OD x 25.7 mm

CONE tapered roller bearing (Male thread)

6шт.

31

114942A1

SCREW

socket head, shoulder, special

6шт.

32

100038

NUT,M12 x 1.75, Cl 8

6шт.

33

167661C1

RING,271.65mm ID x 320.68mm OD

eccentric control

1шт.

34

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

35

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

6шт.

36

43362

NUT,M8 x 1.25, Cl 10

6шт.

37

114941A1

BALL BEARING,38.23mm Idler Dia x 57.15mm OD x 44.5mm W

3шт.

38

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

1шт.

39

114944A1

BELLEVILLE WASHER

belleville, 12 mm

1шт.

40

337475

NUT,M12, Cl 10

1шт.

41

292108A1

SHIELD

eccentric roller plate HCC, Serial Range: -JJC0308544

2шт.

42

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

43

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

45

280234

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

1шт.

46

280431

NUT,1/2"-13, G5

1шт.

47

253430A1

SHIELD

Assembly, Qty 1 shield & 6 bearing/fastener sets

1шт.

Ref 28 to 32

1шт.
