Запчасти Case IH 1010 (09A-11) - PICKUP REEL WITH PLASTIC TINES - 22.5, 25.0 AND 30.0 FOOT HEADERS - BSN JJC0305000 (09) - CHASSIS/ATTACHMENTS

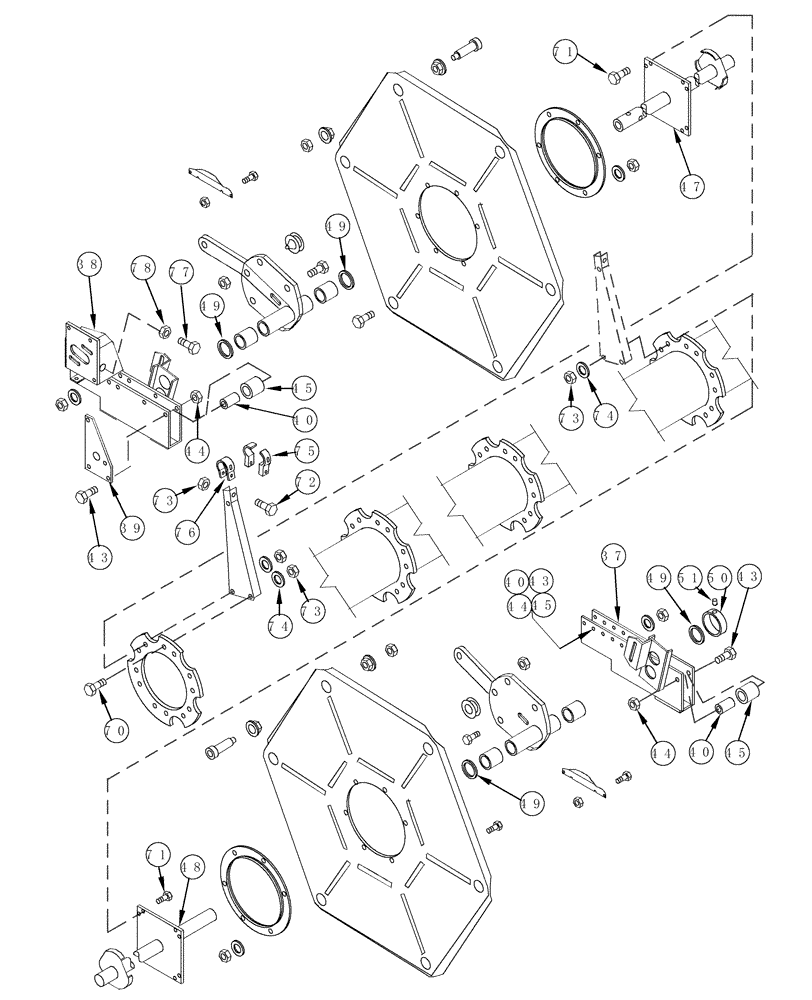

Схема запчастей Case IH 1010 - (09A-11) - PICKUP REEL WITH PLASTIC TINES - 22.5, 25.0 AND 30.0 FOOT HEADERS - BSN JJC0305000 (09) - CHASSIS/ATTACHMENTS
71
38
49
44
73
37
40
74
40
44
78
45
73
48
71
72
44
39
76
49
73
74
45
70
45
43
47
43
49
50
49
51
40
75
43
77

Артикул

Название

Примечание

Количество

37

277363A1

BRACKET

pickup reel support, LH

1шт.

38

277358A2

BRACKET

pickup reel support, RH

1шт.

39

280262A1

SUPPORT

shield, outer

1шт.

40

280505A1

SPACER

3/4"

5шт.

43

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

5шт.

44

86992215

LOCK NUT,1/2"-13, GC

5шт.

45

1316328C1

SHIFTER ROLLER

reel support

4шт.

47

1989428C2

SHAFT

driving end

1шт.

48

1989425C2

SHAFT

driven end

1шт.

49

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

4шт.

50

114943A1

COLLAR

locking

1шт.

Includes 51

1шт.

51

878-1106

SET SCREW,Hex Skt, M10 x 6mm, Cup Pt

2шт.

70

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

71

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

72

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

73

87030549

NUT,M10 x 1.5, Cl 10

1шт.

74

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

75

1347084C1

CLAMP,50.8 mm ID x 25.4 mm

reel arm

1шт.

76

1347085C1

STRAP

bearing

1шт.

77

280234

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

1шт.

78

280431

NUT,1/2"-13, G5

1шт.

Выбрано товаров: 22
