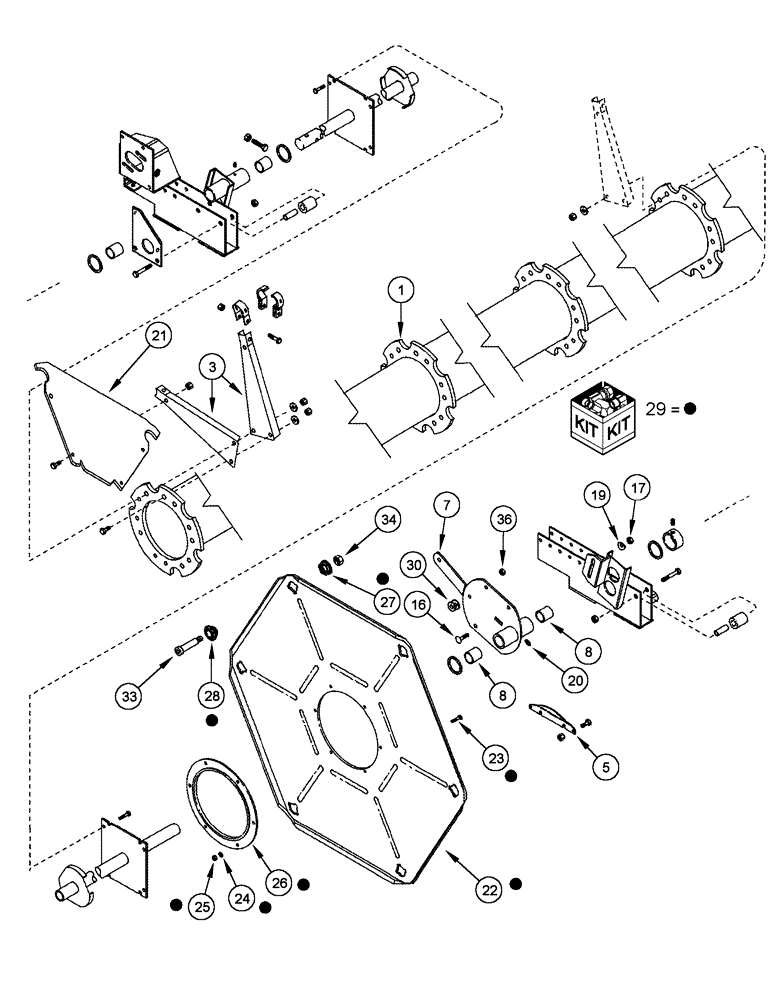

Запчасти Case IH 1010 (09A-08) - PICKUP REEL WITH PLASTIC TINES - 15.0, 17.5 AND 20.0 FOOT HEADERS - BSN JJC0305000 (09) - CHASSIS/ATTACHMENTS

1

1989399C1

SHAFT

center tube (15.0 foot)

1шт.

1

1989401C1

SHAFT

center tube (17.5 foot)

1шт.

1

1994811C1

SHAFT

center tube (20.0 foot)

1шт.

3

1347083C1

ARM

reel

1шт.

5

292108A1

SHIELD

eccentric roller plate HCC

2шт.

7

114938A2

FRAME

eccentric roller

1шт.

8

167666C1

BUSHING

roller frame

2шт.

16

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

1шт.

17

337475

NUT,M12, Cl 10

1шт.

19

114944A1

BELLEVILLE WASHER

belleville, 12 mm

1шт.

20

80720

LUBE NIPPLE,30 Degree, 1/8"-27 NPT x .91" lg

1шт.

21

1989433C2

SHIELD

RH end

6шт.

21

283590A1

GUARD

sheet, non eccentric end, Australia and Europe

6шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

24

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

6шт.

25

43362

NUT,M8 x 1.25, Cl 10

6шт.

26

167661C1

RING,271.65mm ID x 320.68mm OD

eccentric control

1шт.

27

114951A1

BEARING,52.4 mm OD x 14.5 mm

CUP tapered roller bearing (Female thread)

6шт.

28

114952A1

BEARING,52.4 mm OD x 25.7 mm

CONE tapered roller bearing (Male thread)

6шт.

29

253430A1

SHIELD

Assembly, Qty 1 shield & 6 bearing/fastener sets

1шт.

Includes 22 - 28

1шт.

30

114941A1

BALL BEARING,38.23mm Idler Dia x 57.15mm OD x 44.5mm W

3шт.

33

114942A1

SCREW

socket head, shoulder, special

6шт.

34

100038

NUT,M12 x 1.75, Cl 8

6шт.

36

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.
