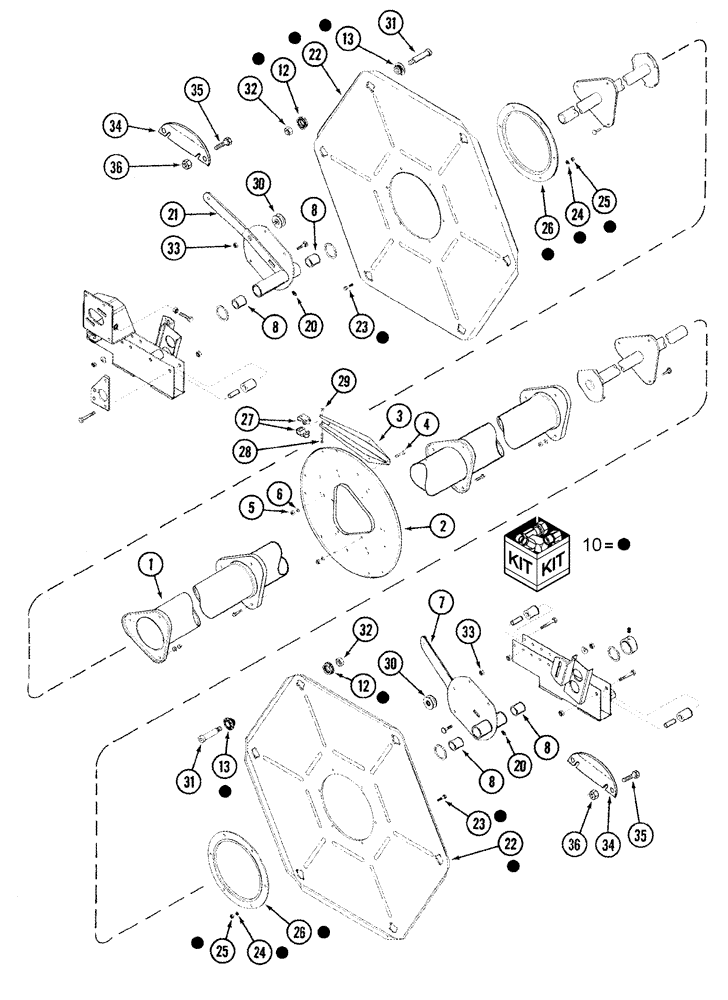

Запчасти Case IH 1010 (09A-05) - PICKUP REEL 6 BAT WITH STEEL TINES - BSN JJC0304999 (09) - CHASSIS/ATTACHMENTS

1

1326602C1

SHAFT

center (15.0 foot)

1шт.

1

1316273C1

SHAFT

center (17.5 foot)

1шт.

1

1316274C1

SHAFT

center (20.0 foot)

1шт.

1

1316275C1

SHAFT

center (22.5 foot)

1шт.

1

1316276C1

SHAFT

center (25.0 foot)

1шт.

1

1316277C1

SHAFT

center (30.0 foot)

1шт.

2

167653C1

PLATE

reel arm (15.0 and 17.5 foot)

1шт.

2

180248C1

PLATE

reel arm (20.0, 22.5, 25.0 and 30.0 foot)

1шт.

3

1326650C1

ARM

reel

1шт.

4

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

5

9635082

NUT,5/16" - 18, Gr 5

1шт.

6

80681

LOCK WASHER,5/16"

1шт.

7

114938A2

FRAME

eccentric roller

1шт.

8

167666C1

BUSHING

roller frame

4шт.

10

253430A1

SHIELD

Assembly, Qty 1 shield & 6 bearing/fastener sets

1шт.

Includes 22, 23, 24, 25, 26, 12, 13

1шт.

12

114951A1

BEARING,52.4 mm OD x 14.5 mm

CUP tapered roller bearing (Female thread)

12шт.

13

114952A1

BEARING,52.4 mm OD x 25.7 mm

CONE tapered roller bearing (Male thread)

12шт.

20

80720

LUBE NIPPLE,30 Degree, 1/8"-27 NPT x .91" lg

2шт.

21

175571A3

HOUSING

eccentric roller

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

2шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

24

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

12шт.

25

43362

NUT,M8 x 1.25, Cl 10

12шт.

26

167661C1

RING,271.65mm ID x 320.68mm OD

eccentric control

2шт.

27

1326656C1

BEARING

reel arm

1шт.

28

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1шт.

29

280129

NUT,1/4"-20

1шт.

30

114941A1

BALL BEARING,38.23mm Idler Dia x 57.15mm OD x 44.5mm W

6шт.

31

114942A1

SCREW

socket head, shoulder, special

12шт.

32

100038

NUT,M12 x 1.75, Cl 8

12шт.

33

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

34

292108A1

SHIELD

eccentric roller plate HCC

4шт.

35

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

36

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.
