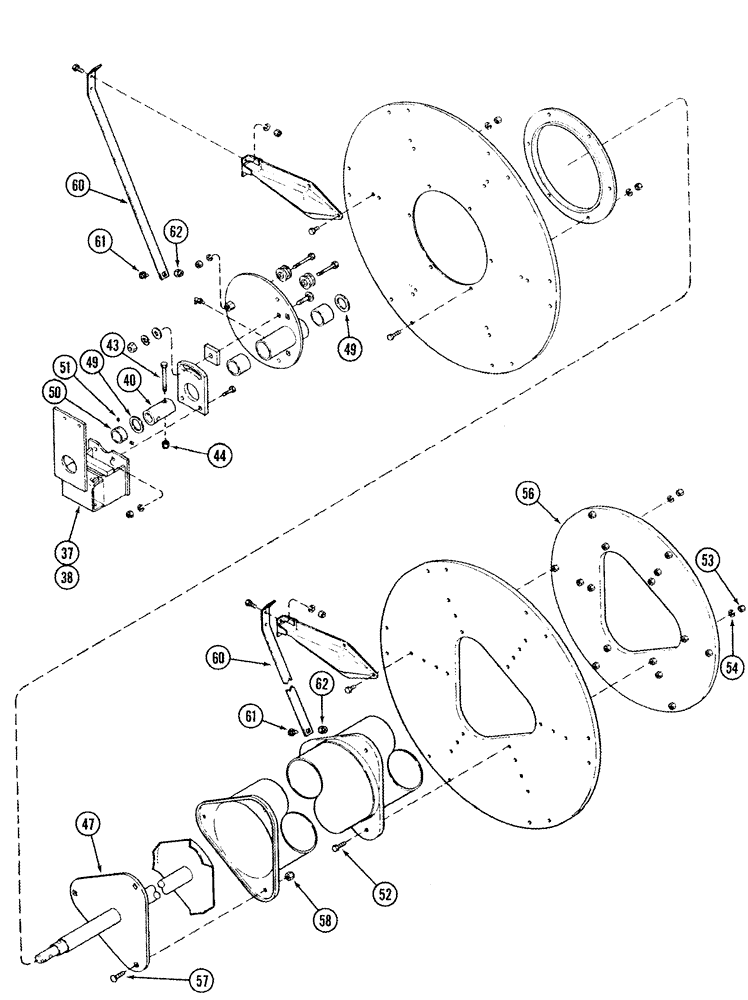

Запчасти Case IH 1010 (09A-04) - PICKUP REEL 6 BAT - 52 INCH REEL WITH STEEL TINES (09) - CHASSIS/ATTACHMENTS

37

180380C1

BRACKET

adjusting, LH

1шт.

Not Shown

1шт.

38

179231C2

BRACKET

adjusting, RH

1шт.

Shown

1шт.

40

167612C1

SPACER

driven hub

2шт.

43

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

44

86992215

LOCK NUT,1/2"-13, GC

4шт.

47

180251C1

SHAFT

driving end

2шт.

49

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

4шт.

50

180400C91

COLLAR

W/SET SCREW

2шт.

Includes 51

1шт.

51

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

2шт.

52

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

53

9635082

NUT,5/16" - 18, Gr 5

1шт.

54

80681

LOCK WASHER,5/16"

1шт.

56

180603C1

PLATE

stiffening

4шт.

57

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

58

88902

NUT,3/8"-16

1шт.

60

180787C1

SUPPORT

reel arm brace

36шт.

61

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

36шт.

62

280129

NUT,1/4"-20

36шт.
