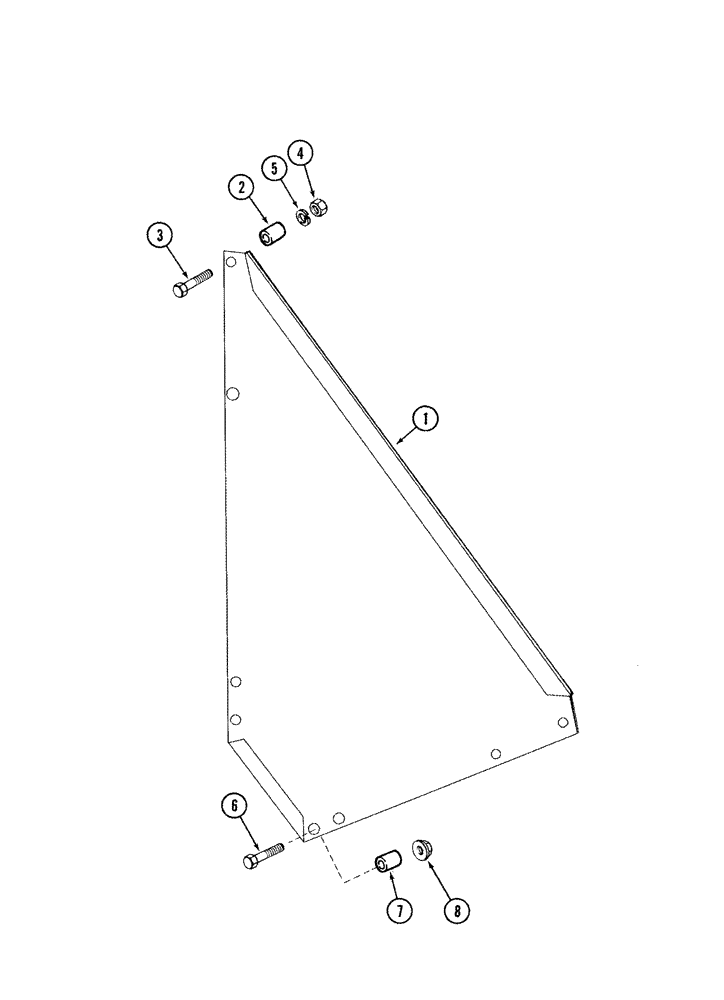

Запчасти Case IH 1010 (09A-02) - REEL END GUARD 5 BAT (09) - CHASSIS/ATTACHMENTS

1

126798A1

SHIELD

reel end, Serial Range: -JJC0308544

10шт.

2

297129A1

SPACER

bat reel

20шт.

3

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

20шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

20шт.

5

80682

LOCK WASHER,1/4"

20шт.

6

477-73124

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/2"

10шт.

7

295125A1

SPACER

bat reel

10шт.

8

145458

SERRATED NUT,5/16"-18 GR 5 ZND

10шт.
