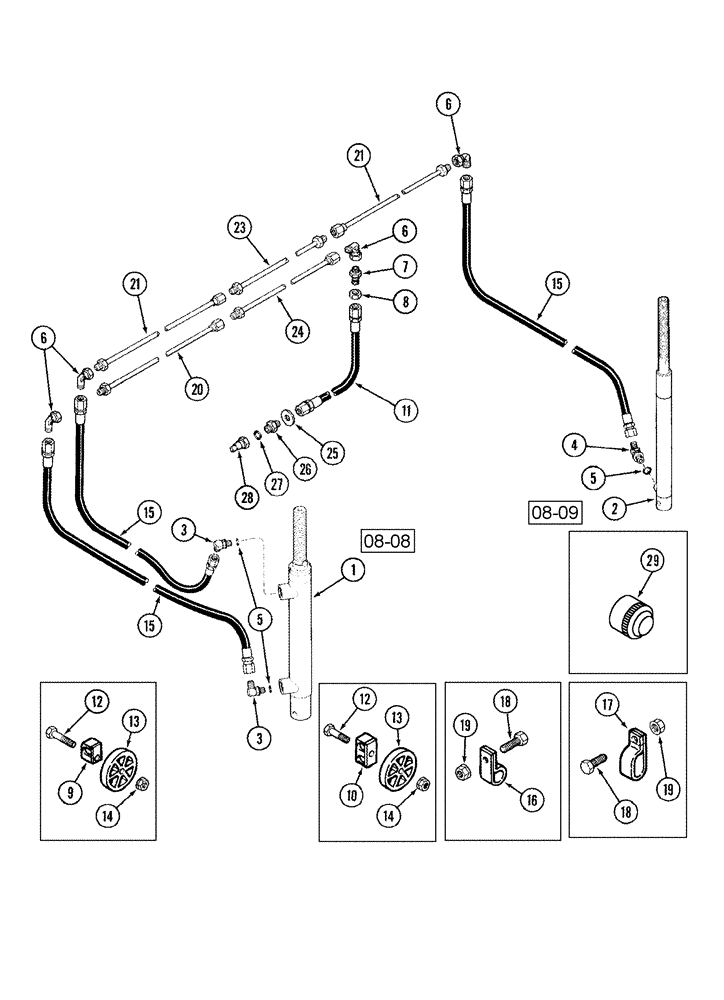

Запчасти Case IH 1010 (08-04) - REEL LIFT HYDRAULIC SYSTEM - 15.0, 17.5 AND 20.0 FOOT (08) - HYDRAULICS

1

128723A2

HYDRAULIC CYLINDER

1 1/2" x 9 3/8", Reel Lift Master, Serial Range: -JJC0308544

1шт.

See Figure 08-09

1шт.

128723A3R

REMAN-HYD CYLINDER

1010 (P.I.N. JJC0300001 TO JJC0308544), Serial Range: -JJC0308544 (1/04-10/04), Reman for New PN 128723A2

1шт.

128723A3C

CORE-HYD CYLINDER

Return Number

1шт.

2

128726A1

HYDRAULIC CYLINDER

1 x 9 3/8", Reel Lift Slave, Serial Range: -JJC0308544

1шт.

See Figure 08-10

1шт.

128726A2R

REMAN-HYD CYLINDER

1010 P.I.N. JJC0300001 TO JJC0308544, Serial Range: -JJC0308544 (1/04-10/04), Reman for New PN 128726A1

1шт.

128726A2C

CORE-HYD CYLINDER

Return Number

1шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

4

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

6

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

4шт.

7

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

, Serial Range: -JJC0308544

1шт.

8

86525

LOCK NUT,Blkhd, 9/16"-18

1шт.

9

183821C1

CLAMP

tube, single, 3/8" OD tube

1шт.

10

183825C1

CLAMP

3/8" tubes

3шт.

11

1254527C2

HYDRAULIC HOSE

1/4" x 37" fl

1шт.

12

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

4шт.

13

1326572C1

SPACER

10 mm, long

4шт.

14

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

15

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

3шт.

16

86637979

CLAMP,20.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

17

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

18

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

2шт.

19

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

20

1338418C1

TUBE,0.375" OD, 2844 mm Length

reel lift

1шт.

15.0 and 17.5 foot

1шт.

20

1338421C1

TUBE,0.375" OD, 3080 mm Length

reel lift

1шт.

20.0 foot

1шт.

21

1316601C1

TUBE,0.375" OD, 1794 mm Length

reel lift

1шт.

15.0 foot

1шт.

21

1316604C1

TUBE,0.375" OD, 2556 mm Length

3/8" x 100"

1шт.

17.5 foot

1шт.

21

1338420C1

HYDRAULIC HOSE,0.375" OD, 3080 mm Length

reel lift

1шт.

20.0 foot

1шт.

23

1338419C1

TUBE,0.375" OD, 3027 mm Length

reel lift

1шт.

24

1338414C1

TUBE,0.375" OD, 275 mm Length

reel lift

1шт.

15.0 foot

1шт.

24

1338416C1

TUBE,0.375" OD, 652 mm Length

reel lift

1шт.

17.5 foot

1шт.

24

1316596C1

TUBE,0.375" OD, 1033 mm Length

reel lift

1шт.

20.0 foot

1шт.

25

1541804C1

WASHER

black, special

1шт.

26

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

1шт.

27

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

1шт.

29

251635A1

CAP

fitting aluminum 3/8" with seal

4шт.
