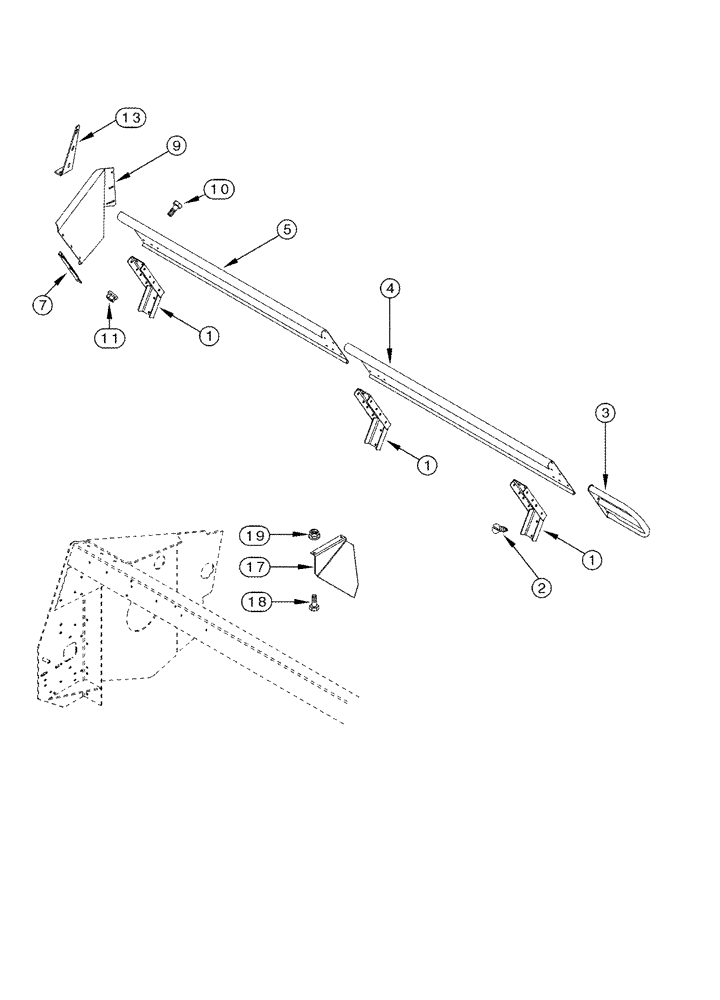

Запчасти Case IH 1010 (09D-12) - SHIELDS - LEFT HAND SIDE (09) - CHASSIS/ATTACHMENTS

1

255412A2

SUPPORT

backsheet

1шт.

2

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

3

255416A2

TUBE,349, 276 mm Length

center

1шт.

4

257147A2

SHIELD

762 mm (30")

1шт.

15.0, 20.0 and 22.5 Foot Headers

1шт.

4

278345A2

SHIELD

1143 mm (45")

1шт.

17.5 Foot Header

1шт.

4

255407A2

SHIELD

1524 mm (60")

1шт.

25.0 and 30.0 Foot Headers

1шт.

5

257147A2

SHIELD

762 mm (30")

1шт.

20.0 and 22.5 Foot Headers

1шт.

5

278345A2

SHIELD

1143 mm (45")

1шт.

22.5 Foot Header

1шт.

5

255407A2

SHIELD

1524 mm (60")

1шт.

30.0 Foot Header

1шт.

7

295582A1

BRACKET

corner LH

1шт.

9

295584A1

SHEET

corner, LH

1шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

1шт.

11

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

13

295587A1

BRACKET

front LH

1шт.

17

259465A2

SHEET

guard, corner lower, LH

1шт.

18

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

5шт.

19

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.
