Запчасти Case IH 1010 (08-03) - REEL FORE AND AFT HYDRAULIC SYSTEM - 22.5, 25.0 AND 30.0 FOOT (08) - HYDRAULICS

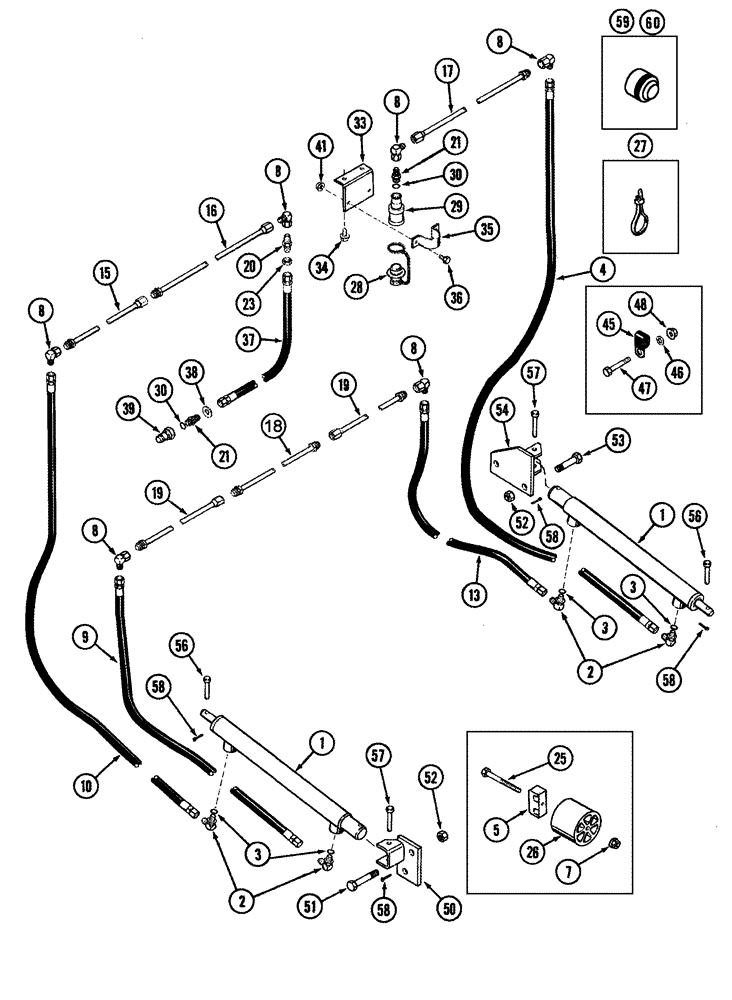

Схема запчастей Case IH 1010 - (08-03) - REEL FORE AND AFT HYDRAULIC SYSTEM - 22.5, 25.0 AND 30.0 FOOT (08) - HYDRAULICS
19
29
59
9
8
23
3
46
21
45
38
51
54
58
20
33
16
2
30
28
19
50
60
57
18
48
26
5
8
52
58
36
41
39
25
4
1
7
56
10
35
52
53
13
37
27
57
2
8
34
47
30
8
1
8
3
58
15
58
21
3
56
8
17

Артикул

Название

Примечание

Количество

1

276971A1

CYLINDER,Double Acting, 18.97mm Rod, 206mm Stroke

bat reel, fore and aft

2шт.

See figure 8-07

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

4шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

4

1284278C1

HYDRAULIC HOSE

1/4" x 41" fl

1шт.

4

1277506C1

HYDRAULIC HOSE,6.35mm ID x 1195mm L

Pick-up Reel

1шт.

5

183825C1

CLAMP

3/8" tubes

6шт.

7

9626558

FLANGE NUT,Flg, 1/4"-20

6шт.

8

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

6шт.

9

141425A2

HOSE,0.25" ID x 57.00", SAE 100R1

1/4" x 57"

1шт.

10

812382C1

HYDRAULIC HOSE

1/4" x 50" fl

1шт.

10

147876C1

HYDRAULIC HOSE

1/4" x 45" fl, 3/8" fjic x 3/8" fjic

1шт.

13

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

1шт.

15

1316598C1

TUBE,0.375" OD, 1613 mm Length

reel lift

1шт.

22.5 and 25.0 foot

1шт.

15

1338421C1

TUBE,0.375" OD, 3080 mm Length

reel lift

1шт.

30.0 foot

1шт.

16

1338420C1

HYDRAULIC HOSE,0.375" OD, 3080 mm Length

reel lift

1шт.

22.5 and 25.0 foot

1шт.

16

1338420C1

HYDRAULIC HOSE,0.375" OD, 3080 mm Length

reel lift

1шт.

30.0 foot

1шт.

17

1316602C2

TUBE,0.375" OD, 2229 mm Length

fore and aft

1шт.

22.5 foot

1шт.

17

138338A1

TUBE,0.375" OD, 2609 mm Length

fore and aft

1шт.

25.0 foot

1шт.

17

1338420C1

HYDRAULIC HOSE,0.375" OD, 3080 mm Length

reel lift

1шт.

30.0 foot, Longer Tube

1шт.

17a

1338414C1

TUBE,0.375" OD, 275 mm Length

reel lift

1шт.

Not Shown

1шт.

15.0 foot

1шт.

18

1316597C1

TUBE,0.375" OD, 1413 mm Length

reel lift

1шт.

22.5 foot

1шт.

18

1316601C1

TUBE,0.375" OD, 1794 mm Length

reel lift

1шт.

25.0 foot

1шт.

18

1316604C1

TUBE,0.375" OD, 2556 mm Length

3/8" x 100"

1шт.

30.0 foot

1шт.

19

1316603C1

TUBE,0.375" OD, 2655 mm Length

reel lift

2шт.

22.5 foot

1шт.

19

1316605C1

HYD TUBE,0.375" OD, 3035 mm Length

3/8" x 119 1/2"

2шт.

25.0 foot

1шт.

19

1338420C1

HYDRAULIC HOSE,0.375" OD, 3080 mm Length

reel lift

2шт.

30.0 foot

1шт.

20

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

21

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

2шт.

23

86525

LOCK NUT,Blkhd, 9/16"-18

1шт.

25

280317

BOLT,Hex, 1/4" - 20 x 3", Gr 5

6шт.

26

1326573C1

SPACER

45 mm long

6шт.

27

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

28

1954133C1

PLUG

plug assembly

1шт.

29

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

30

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

33

1316779C2

SUPPORT

1шт.

34

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

2шт.

35

1321398C3

CLAMP

quick disconnect

1шт.

36

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

37

1254527C2

HYDRAULIC HOSE

1/4" x 37" fl

1шт.

38

1541792C1

WASHER

red, special

1шт.

39

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

1шт.

41

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

45

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

2шт.

46

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

47

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

48

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

50

1316318C3

SUPPORT

bracket RH cylinder, Serial Range: -JJC0308544

1шт.

51

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

52

86992215

LOCK NUT,1/2"-13, GC

4шт.

53

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

54

280387A1

SUPPORT

bracket LH cylinder mount, Serial Range: -JJC0308544

1шт.

56

439-5628

HEADED PIN,3/8" x 1 3/4"

2шт.

57

86624081

HEADED PIN,9.53mm OD x 57.15mm L

2шт.

58

80756

COTTER PIN,1/8" x 3/4"

4шт.

59

251635A1

CAP

fitting aluminum 3/8" with seal

5шт.

60

251637A1

CAP

fitting aluminum 5/8" with seal

1шт.
