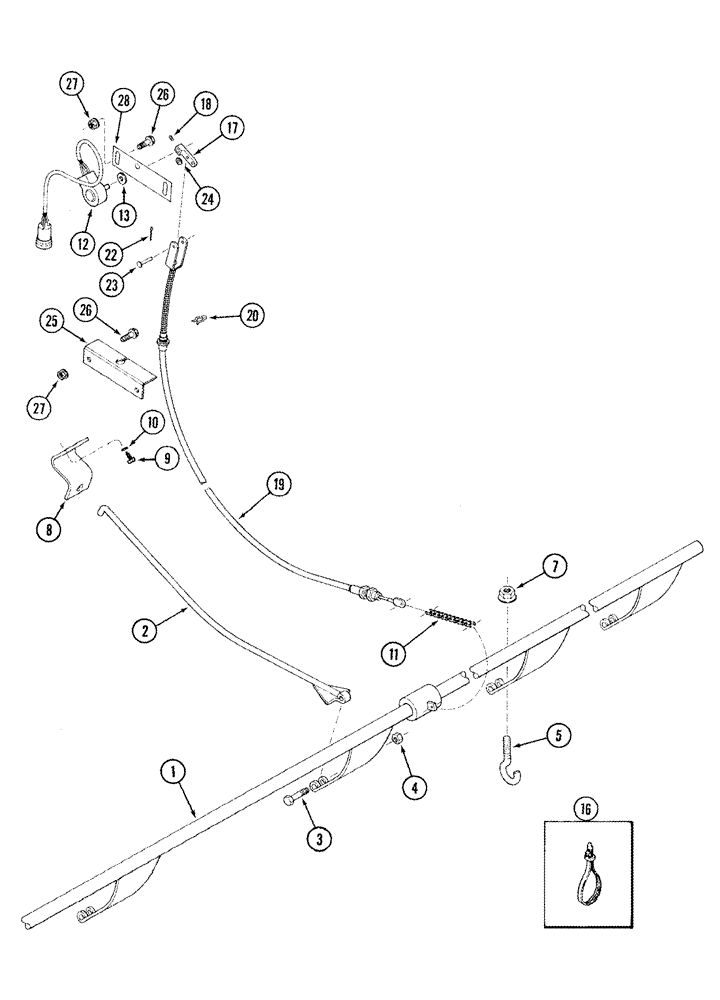

Запчасти Case IH 1010 (09D-09) - CONTROL HEADER HEIGHT (09) - CHASSIS/ATTACHMENTS

1

1320654C1

FINGER BAR

15.0 foot

1шт.

1

1320655C1

FINGER BAR

17.5 foot, Serial Range: -JJC0308544

1шт.

1

1320656C1

FINGER BAR

20.0 foot, Serial Range: -JJC0308544

1шт.

1

1320904C1

FINGER BAR

22.5 foot

1шт.

2

1320903C1

ROD

finger

1шт.

3

326-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

1шт.

4

232-4114

LOCK NUT,1/4"-20, GC

1шт.

5

1316391C1

EYEBOLT

special

1шт.

7

1313463C1

FLANGE NUT

hex small flange, 7/16" NC

1шт.

8

1320601C1

ROD

support, guide, Serial Range: -JJC0308544

1шт.

9

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

1шт.

10

80681

LOCK WASHER,5/16"

1шт.

11

174266C1

CHAIN (AG)

1шт.

12

127360A2

POTENTIOMETER

Height Control

1шт.

12

245885C93

POTENTIOMETER

1шт.

Adapt 1995 and Later Headers to 1600 Series Combines

1шт.

12

1301147C91

POTENTIOMETER

For Combines with Electro Hydraulic

1шт.

For 1400 Series Combines with Electro-Hydraulics

1шт.

13

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

16

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

17

1968782C1

ARM

potentiometer control

1шт.

Alternate with 131175A1

1шт.

17

131175A1

ARM

potentiometer control

1шт.

Alternate with 1968782C1

1шт.

18

483-1084

SET SCREW,Hex Soc, #8-32 x 1/4"

1шт.

19

1314088C2

CABLE PULLING GRIP

height control

1шт.

20

148151

COTTER PIN,Hairpin, 716"

, Serial Range: -JJC0308544

1шт.

22

280236

COTTER PIN,1/16" x 1/2"

1шт.

23

27329R1

CLEVIS PIN,4.78mm OD x 29.26mm L

1шт.

24

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

9шт.

25

1308301C2

BRACKET

height control cable, Serial Range: -JJC0308544

1шт.

26

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

27

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

28

1308299C5

STRAP

1шт.
