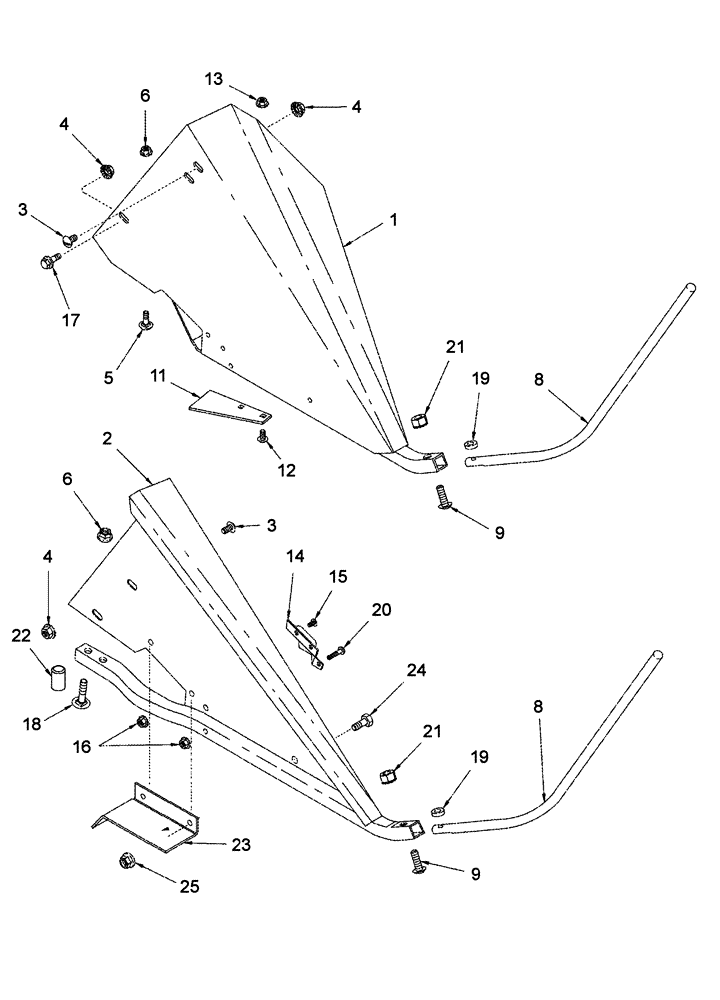

Запчасти Case IH 1010 (09D-05) - DIVIDERS BSN JJC0303999 (09) - CHASSIS/ATTACHMENTS

1

132645A1

DIVIDER

support, LH

1шт.

2

131684A4

DIVIDER

support, RH

1шт.

2

368945A1

DIVIDER

RH, Serial Range: -JJC0308544

1шт.

4

247780

SERRATED NUT,Flg, USR, 3/8"-16

5шт.

5

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

4шт.

6

86512371

SERRATED NUT,Flg, USR, 1/2"-13

6шт.

8

131686A1

ROD

divider

2шт.

9

477-73124

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/2"

2шт.

11

1316704C1

LARGE PLATE

PLATE, LARGE divider, LH

1шт.

12

135270

SERRATED SCREW,5/16" - 18 x 3/4"

2шт.

13

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

14

1326343C1

DEFLECTOR

divider RH

1шт.

15

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

2шт.

16

523282

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

17

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

1шт.

18

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

2шт.

19

700121908

SPACER

1/4 X 3/8"

2шт.

20

340-12524

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/2"

1шт.

21

231-5315

FLANGE NUT,Flg, 5/16"-18

2шт.

22

573713R1

SPACER,3/4" Tube x 11/16"

2шт.

23

301106A1

SHIELD

cutter bar RH, Serial Range: -JJC0308544

1шт.

24

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

2шт.

25

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

3

86624125

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

4шт.
