Запчасти Case IH 1010 (09D-03) - MAIN FRAME 22.5, 25.0 AND 30.0 FOOT HEADER (PART 1 OF 2) (09) - CHASSIS/ATTACHMENTS

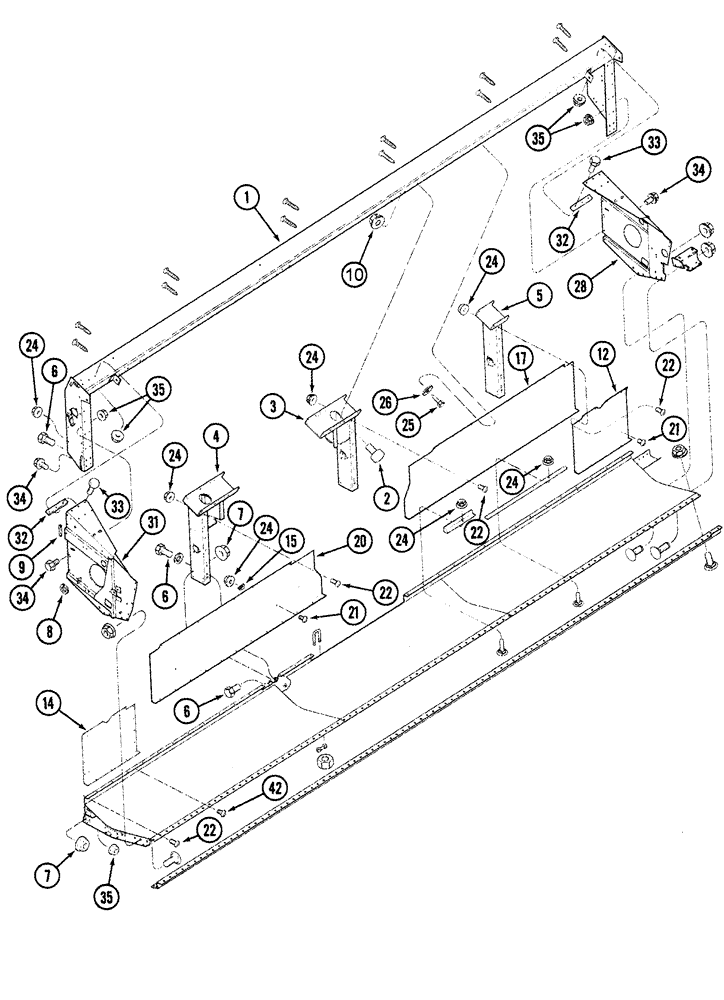

Схема запчастей Case IH 1010 - (09D-03) - MAIN FRAME 22.5, 25.0 AND 30.0 FOOT HEADER (PART 1 OF 2) (09) - CHASSIS/ATTACHMENTS
34
21
24
33
22
4
1
35
8
24
26
28
6
34
35
6
14
3
24
5
42
15
12
33
17
24
22
20
7
10
9
22
32
2
7
21
24
22
34
24
31
35
6
25
24
32

Артикул

Название

Примечание

Количество

1

126002A3

BEAM

main 22.5 foot, Serial Range: -JJC0308544

1шт.

1

126004A3

BEAM

main 25.0 foot, Serial Range: -JJC0308544

1шт.

1

126005A3

BEAM

main 30.0 foot, Serial Range: -JJC0308544

1шт.

2

87034823

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

20шт.

3

1307374C7

POST

vertical LH, Serial Range: -JJC0308544

1шт.

4

1307375C7

POST

vertical RH, Serial Range: -JJC0308544

1шт.

5

1307376C6

POST

intermediate LH, Serial Range: -JJC0308544

1шт.

5

128414A4

POST

intermediate RH, Serial Range: -JJC0308544

1шт.

6

87034823

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

, Serial Range: -JJC0308544

40шт.

7

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

14шт.

8

135370A1

PROTECTION STRIP

194 mm (7-5/8 in), Cut From 1330108CX

1шт.

Cut From 1330108CX

1шт.

9

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

76 mm (3") long, cut from 1330108CX bulk

1шт.

Cut From 1330108CX

1шт.

10

87301492

SERRATED NUT,Flg, USR, 1/2"-13, G8

, Serial Range: -JJC0308544

40шт.

12

1307093C1

SHEET

back LH 22.5 foot, Serial Range: -JJC0308544

1шт.

12

1307095C1

SHEET

back LH 25.0 foot, Serial Range: -JJC0308544

1шт.

12

1307097C1

SHEET

back LH 30.0 foot, Serial Range: -JJC0308544

1шт.

14

1307094C1

SHEET

back RH 22.5 foot, Serial Range: -JJC0308544

1шт.

14

1307096C1

SHEET

back RH 25.0 foot, Serial Range: -JJC0308544

1шт.

14

1307098C1

SHEET

back RH 30.0 foot, Serial Range: -JJC0308544

1шт.

15

133973A1

ANGLE

shield chain, Serial Range: -JJC0308544

4шт.

17

1326062C93

SHIELD

backsheet center LH

1шт.

Includes Decal

1шт.

20

1326063C94

SHIELD

backsheet center RH

1шт.

Includes Decal

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

39шт.

24

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

25

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

1шт.

26

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

1шт.

28

130816A5

SUPPORT

endsheet header LH

1шт.

Includes 32

1шт.

31

130817A4

SUPPORT

endsheet RH

1шт.

Includes 32

1шт.

32

1313966C1

BAR

shim

2шт.

33

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

6шт.

34

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

16шт.

35

247780

SERRATED NUT,Flg, USR, 3/8"-16

22шт.

42

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

Выбрано товаров: 40
