Запчасти Case IH 1010 (09D-02) - MAIN FRAME 15.0, 17.5 AND 20.0 FOOT HEADER (PART 2 OF 2) (09) - CHASSIS/ATTACHMENTS

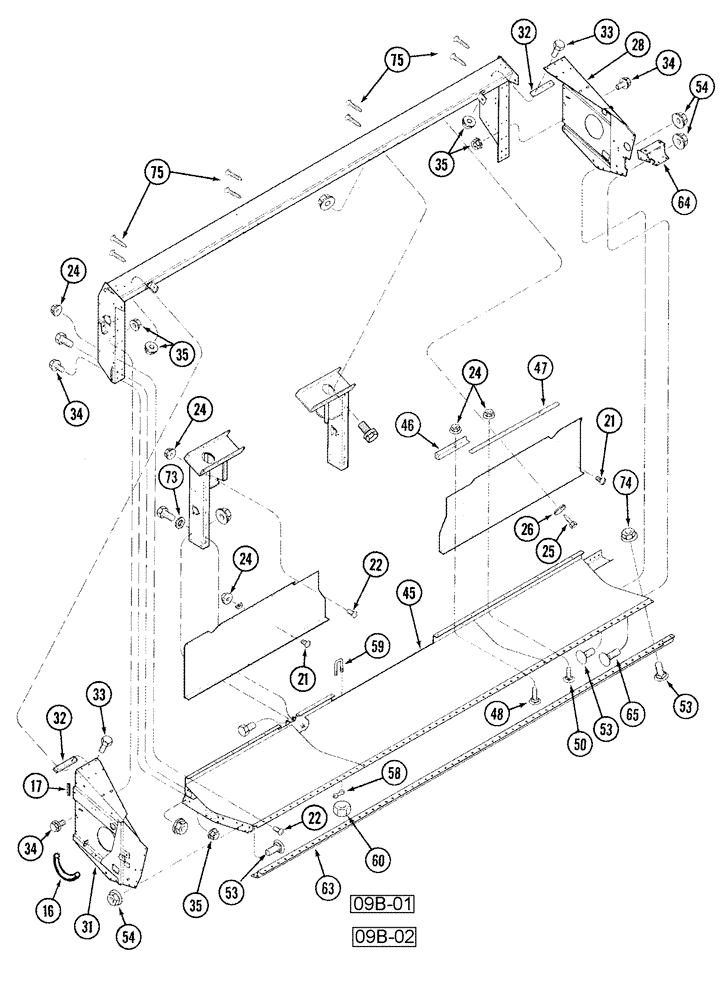

Схема запчастей Case IH 1010 - (09D-02) - MAIN FRAME 15.0, 17.5 AND 20.0 FOOT HEADER (PART 2 OF 2) (09) - CHASSIS/ATTACHMENTS
75
54
53
47
32
34
09b-02
09b-01
59
24
24
26
48
28
25
35
34
24
32
65
33
58
17
35
63
53
35
45
16
73
53
54
33
74
21
50
21
60
31
34
75
46
24
64
22
22

Артикул

Название

Примечание

Количество

16

135370A1

PROTECTION STRIP

194 mm (7-5/8 in), Cut From 1330108CX

1шт.

Cut From 1330108CX

1шт.

17

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

76 mm (3") long, cut from 1330108CX bulk

1шт.

Cut From 1330108CX

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

27шт.

24

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

25

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

1шт.

26

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

1шт.

28

130816A5

SUPPORT

endsheet header LH

1шт.

Includes 32

1шт.

31

130817A4

SUPPORT

endsheet RH

1шт.

Includes 32

1шт.

32

1313966C1

BAR

shim

2шт.

33

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

6шт.

34

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

16шт.

35

247780

SERRATED NUT,Flg, USR, 3/8"-16

24шт.

45

132965A1

BEAM

lower 15.0 foot

1шт.

45

132964A1

BEAM

lower 17.5 foot, Serial Range: -JJC0308544

1шт.

45

132963A1

BEAM

lower 20.0 foot, Serial Range: -JJC0308544

1шт.

46

1316564C1

ANGLE

finger shaft, Serial Range: -JJC0308544

2шт.

47

189825C2

STRIPPER

auger, adjustable, Serial Range: -JJC0308544

1шт.

48

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

50

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

53

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

11шт.

53

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

22шт.

54

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

54

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

20шт.

58

1307371C1

LATCH

bar feeder dogbone, Serial Range: -JJC0308544

2шт.

59

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

BOLT "U" 5/8"-11, 4.6" ID Height, 2.18" ID Width

2шт.

60

86520346

NUT,5/8"-11, GB

4шт.

63

REF

INSTRUCTION

Bar

1шт.

See Figure(s) 09B-01, 09B-02

1шт.

64

125450A1

SUPPORT

knife box

1шт.

65

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

73

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

2шт.

74

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

75

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

Выбрано товаров: 38
