Запчасти Case IH 1010 (09D-01) - MAIN FRAME 15.0, 17.5 AND 20.0 FOOT HEADER (PART 1 OF 2) (09) - CHASSIS/ATTACHMENTS

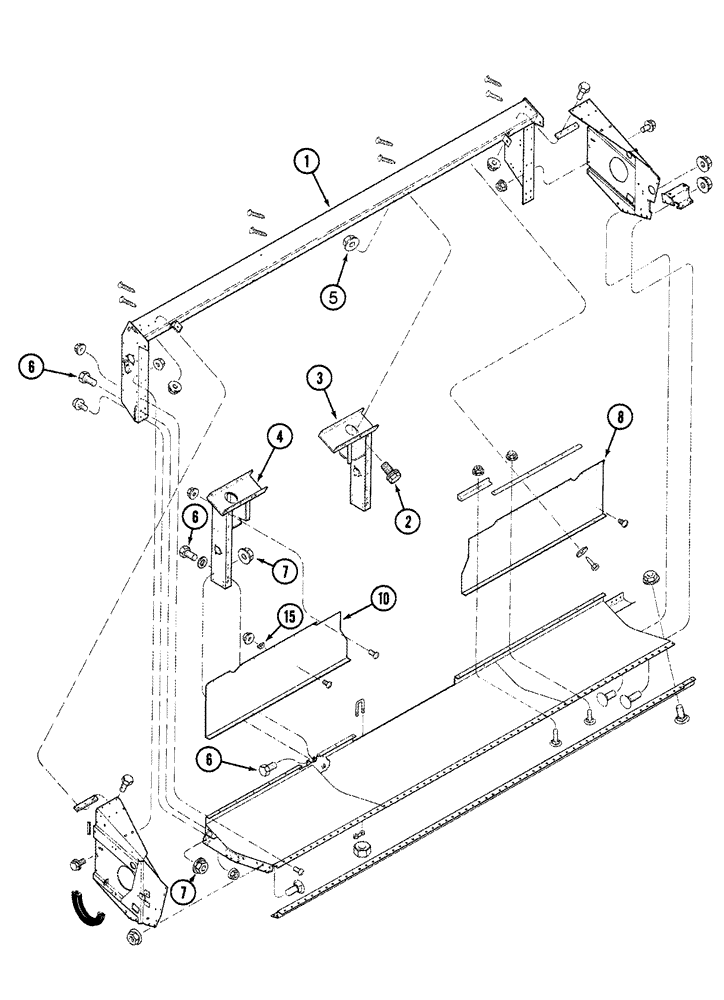

Схема запчастей Case IH 1010 - (09D-01) - MAIN FRAME 15.0, 17.5 AND 20.0 FOOT HEADER (PART 1 OF 2) (09) - CHASSIS/ATTACHMENTS
5
2
8
24
10
3
6
7
1
7
6
15
6

Артикул

Название

Примечание

Количество

1

125995A3

BEAM

main 15.0 foot

1шт.

1

125999A3

BEAM

main 17.5 foot, Serial Range: -JJC0308544

1шт.

1

126000A3

BEAM

main 20.0 foot, Serial Range: -JJC0308544

1шт.

2

87034823

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

, Serial Range: -JJC0308544

12шт.

3

1307374C7

POST

vertical LH, Serial Range: -JJC0308544

1шт.

4

1307375C7

POST

vertical RH, Serial Range: -JJC0308544

1шт.

5

87301492

SERRATED NUT,Flg, USR, 1/2"-13, G8

, Serial Range: -JJC0308544

12шт.

6

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

22шт.

7

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

18шт.

8

1326056C93

SHIELD

back with decal, LH 15.0 foot

1шт.

Includes Decal

1шт.

8

1326058C93

SHIELD

backsheet 17.5 foot LH

1шт.

Includes Decal

1шт.

8

1326060C93

SHIELD

backsheet 20.0 foot LH

1шт.

Includes Decal

1шт.

10

1326057C94

SHIELD

back with decal, RH 15.0 foot

1шт.

Includes Decal

1шт.

10

1326059C94

SHIELD

backsheet 17.5 foot RH

1шт.

Includes Decal

1шт.

10

1326061C94

SHIELD

backsheet 20.0 foot RH

1шт.

Includes Decal

1шт.

15

133973A1

ANGLE

shield chain, Serial Range: -JJC0308544

4шт.

Выбрано товаров: 22
