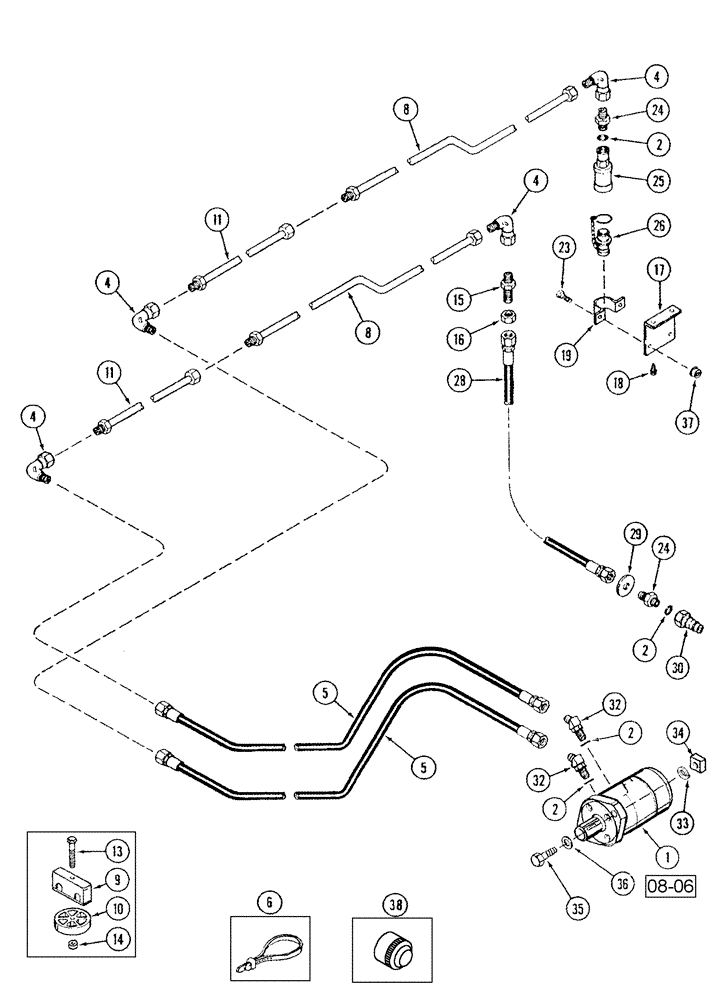

Запчасти Case IH 1010 (08-01) - REEL DRIVE MOTOR SYSTEM (08) - HYDRAULICS

1

130409A1

MOTOR, HYDRAULIC

reel drive

1шт.

See Figure 08-06

1шт.

87036557R

REMAN-HYD MOTOR

1010 P.I.N. JJC0300001 TO JJC0308544 (1/04-10/04); Reman for new PN 130409A1

1шт.

87036557C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

4

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

4шт.

5

130000A1

HOSE

1524 mm (60 inch) long, hydraulic, 3/8 ID (Bat reel)

2шт.

5

131057A1

HOSE

1270 mm (50") long, hydraulic, 3/8 ID (Pick-up reel)

2шт.

6

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

2шт.

8

1338406C1

TUBE,0.5" OD, 2820 mm Length

reel drive

2шт.

9

1301178C1

CLAMP

tube

1шт.

10

1326572C1

SPACER

10 mm, long

1шт.

11

1338408C1

TUBE,0.5" OD, 563 mm Length

reel drive (15.0 foot)

2шт.

11

1316443C1

TUBE,0.5" OD, 943 mm Length

reel dive, 17.5 foot

2шт.

11

1338410C1

TUBE,0.5" OD, 1324 mm Length

reel drive (20.0 foot)

2шт.

11

1338411C1

TUBE,0.5" OD, 1705 mm Length

reel drive (22.5 foot)

2шт.

11

1338412C1

TUBE,0.5" OD, 2086 mm Length

reel drive (25.0 foot)

2шт.

11

1338413C1

TUBE,0.5" OD, 2848 mm Length

reel drive (30.0 foot)

2шт.

13

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

14

9626558

FLANGE NUT,Flg, 1/4"-20

1шт.

15

264654

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

16

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

17

1316779C2

SUPPORT

1шт.

18

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

2шт.

19

1321398C3

CLAMP

quick disconnect

1шт.

23

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

24

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

25

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

25a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Between Ref 25 and 26

1шт.

26

1954133C1

PLUG

plug assembly

1шт.

28

1316829C1

HOSE

965 mm (38") long, hydraulic, 3/8" ID

1шт.

29

1345266C1

WASHER

lock, white, special

1шт.

30

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

1шт.

32

9610689

ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring

2шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

34

129-857

SQUARE NUT,Sq, 1/2"-13

2шт.

35

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

36

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

37

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

38

251636A1

CAP

fitting aluminum 1/2" with seal

3шт.
