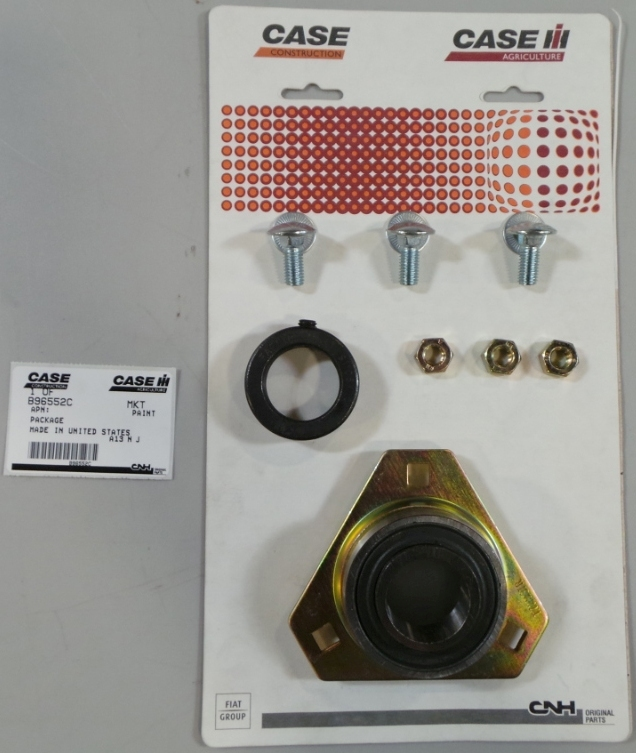

Запчасти Case IH 1010 (09C-11[02]) - KIT BEARING AUGER FINGER SHAFT (09) - CHASSIS/ATTACHMENTS

1

B96552C

PACKAGE

Incl 2 - 7

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

3

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

4

84330078

COLLAR,35.05mm ID x 55.6mm OD x 17.77mm L

1шт.

5

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

6

100016

NUT,M10 x 1.5, Cl 8

3шт.

7

86620026

FLANGED BEARING

2шт.
