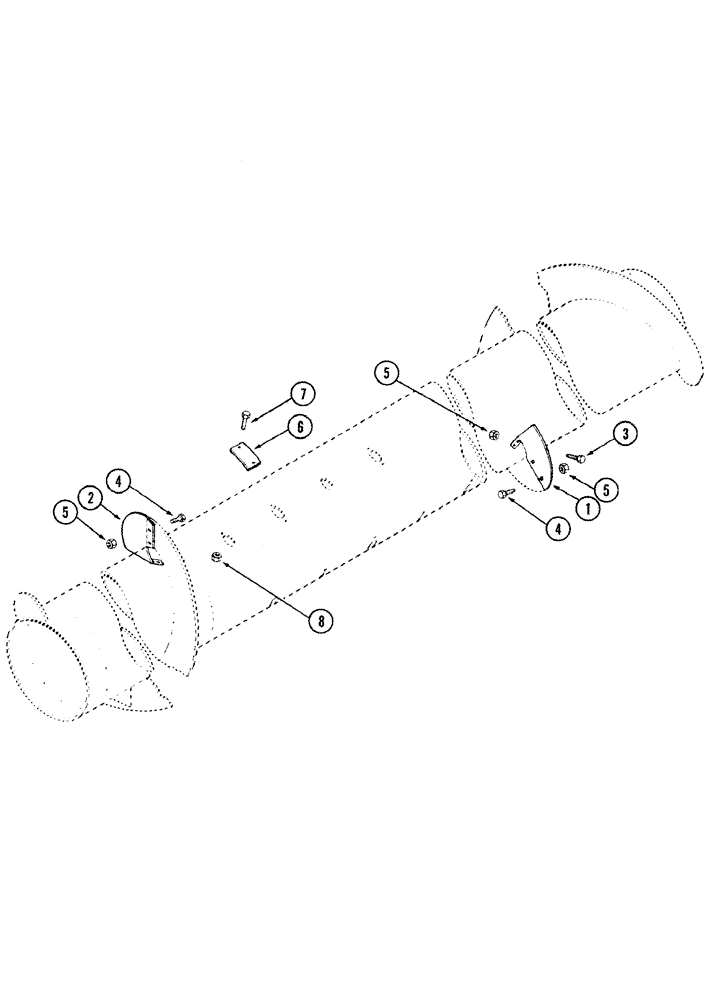

Запчасти Case IH 1010 (09C-03) - FLIGHT EXTENSION LONG (09) - CHASSIS/ATTACHMENTS

1

1308445C2

EXTENSION

auger flight LH

1шт.

2

1308446C2

EXTENSION

auger flight, RH

1шт.

3

30944

BOLT,Hex Flg, 1/2" - 13 x 1"

2шт.

4

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

5

232-5318

FLANGE NUT,Flg, 1/2"-13

6шт.

6

167823C1

COVER

2шт.

7

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

8

280129

NUT,1/4"-20

4шт.
