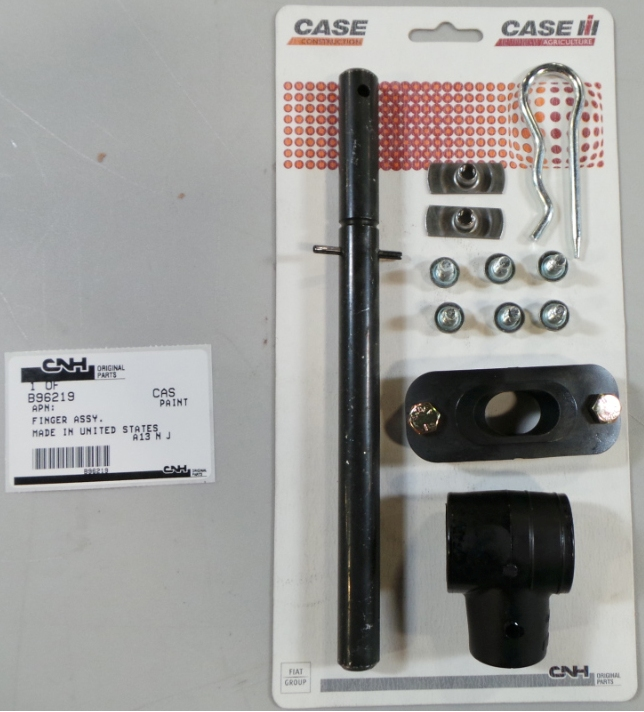

Запчасти Case IH 1010 (09C-02[02]) - KIT AUGER FINGER ASSY 1 PACK (09) - CHASSIS/ATTACHMENTS

1

B96219

FINGER ASSY.

Incl 2 - 9

1шт.

2

440430A1

FINGER

1шт.

3

87752079

COTTER PIN,3.17mm OD x 34.92mm L, Slotted

1шт.

4

84287636

GUIDE

1шт.

5

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

6

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

6шт.

7

185309A1

HAIR PIN COTTER

1шт.

8

1308425C1

HUB

1шт.

9

410726A1

NUT

2шт.
