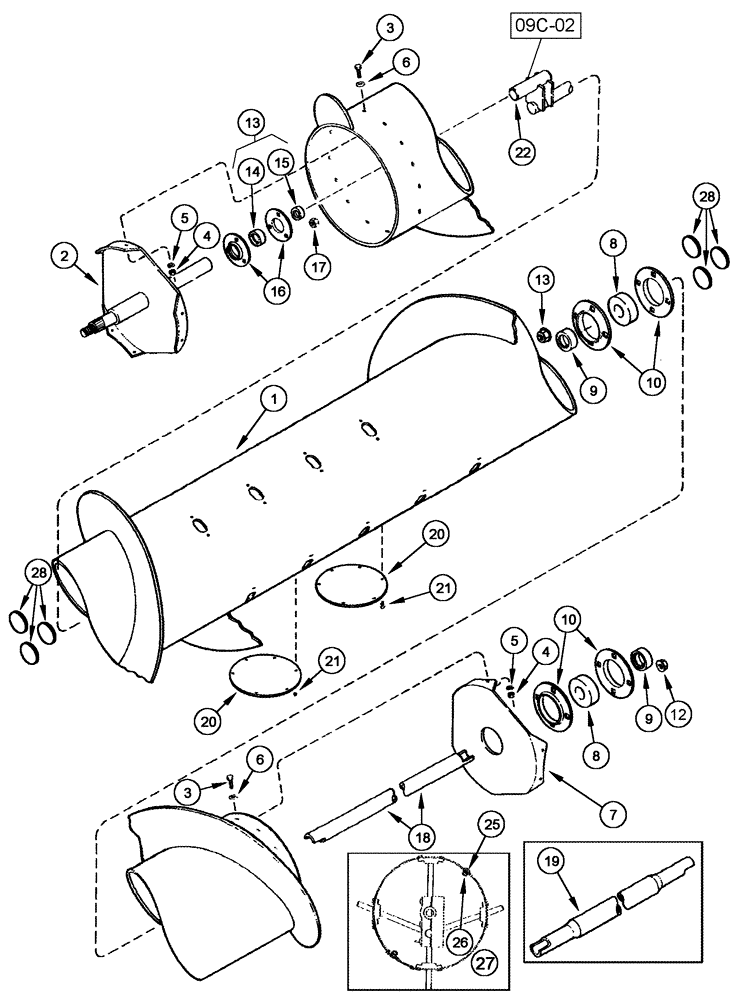

Запчасти Case IH 1010 (09C-01) - AUGER ASSEMBLY (NOT FULL FINGERED) (09) - CHASSIS/ATTACHMENTS

1

106001A2

AUGER

15.0 foot

1шт.

1

87502407

AUGER

17.5 foot, Start Serial: CBJ023001

1шт.

1

87502408

AUGER

20.0 foot, Start Serial: CBJ023001

1шт.

1

87502409

AUGER

22.5 foot, Start Serial: CBJ023001

1шт.

1

87502410

AUGER

25.0 foot, Start Serial: CBJ023001

1шт.

1

349016A1

AUGER

header 5 piece, 25.0 foot, Latin America Only

1шт.

1

87502411

AUGER

30.0 foot, Start Serial: CBJ023001

1шт.

1

359655A1

AUGER

header, 5 piece, with extension, Latin America Only

1шт.

2

106024A1

SHAFT

drive

1шт.

3

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

12шт.

4

280136

NUT,3/8"-16, G8

12шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

12шт.

6

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

7

1307256C1

RETAINER

auger LH

1шт.

8

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

auger shaft

2шт.

9

455112R11

COLLAR

locking, bearing, with set screw

2шт.

10

663562R1

FLANGE

bearing

4шт.

Alternate With 1307583C1

1шт.

10

1307583C1

FLANGED BEARING

bearing 80 mm 4 bolt

4шт.

Alternate With 663562R1

1шт.

12

232-5318

FLANGE NUT,Flg, 1/2"-13

8шт.

13

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

double flange mount

1шт.

Includes 14, 15

1шт.

14

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

double flange mount

1шт.

15

38260

COLLAR

lock 1" bore 1 1/2" OD

1шт.

16

937517R1

FLANGE

bearing

2шт.

17

231-5315

FLANGE NUT,Flg, 5/16"-18

3шт.

18

1307262C1

TUBE,38.087 mm OD, 1793 mm Length

finger adjusting (15.0 foot)

1шт.

18

1307263C1

TUBE,38.087 mm Diameter, 2174 mm Length

finger adjusting (17.5 foot)

1шт.

18

1307264C1

TUBE,38.087 mm Diameter, 2555 mm Length

finger adjusting (20.0 foot)

1шт.

18

1307265C1

TUBE,38.087 mm Diameter, 2936 mm Length

finger adjusting (22.5 foot)

1шт.

19

87438843

TUBE,38.087 mm OD x 3317 mm L

auger finger adjustment 25.0 foot, Start Serial: CBJ023001

1шт.

19

87438844

TUBE,38.087 mm OD x 4079 mm L

auger finger adjustment 30.0 foot, Start Serial: CBJ023001

1шт.

20

87450151

COVER

auger drum, Start Serial: CBJ023001

2шт.

21

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

12шт.

22

1316383C1

SHAFT

auger finger

1шт.

See Figure 09C-02

1шт.

25

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

26

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

27

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

2шт.

28

353-417

PLUG,Dome, 2.000" hole, Nylon

6шт.
