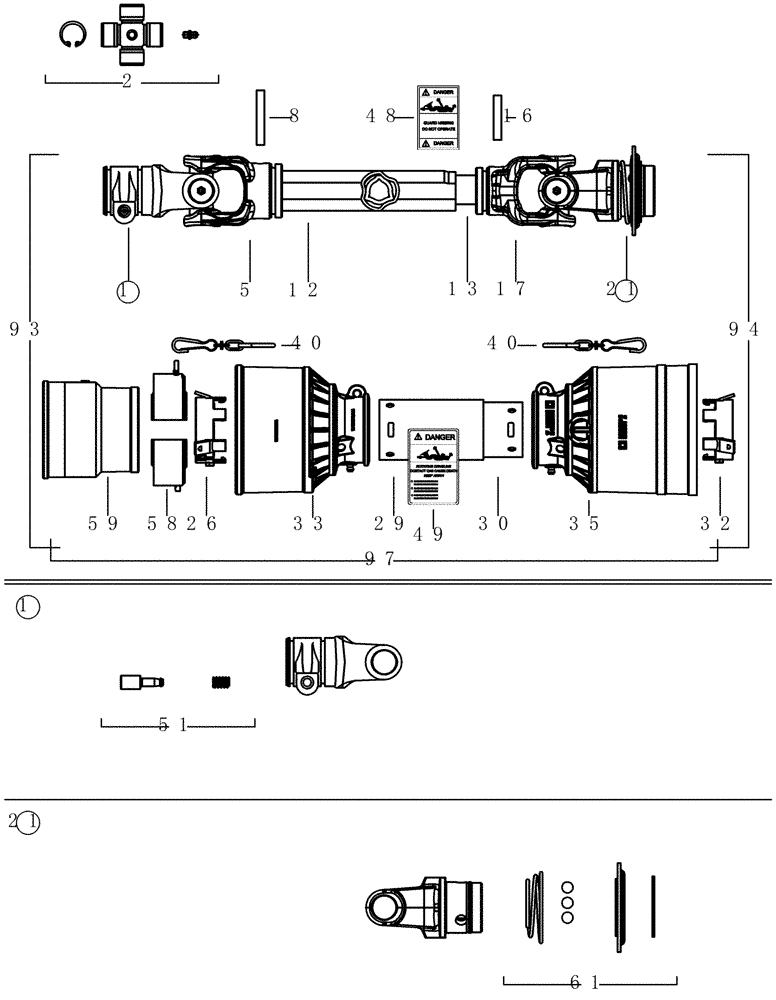

Запчасти Case IH 1010 (09B-18[02]) - KNIFE DRIVE SHAFT - BONDIOLI AND PAVESI - 22.5, 25.0 AND 30.0 FOOT HEADERS ASN CBJ044231 (09) - CHASSIS/ATTACHMENTS

0

87438828

SHAFT

assembly, pto driveline 22'-30'

1шт.

1

1325022C1

YOKE

UNIVERSAL JOINT YOKE outside

1шт.

2

84126876

UNIVERSAL JOINT

cross and bearing

2шт.

5

84125366

YOKE

outer tube

1шт.

8

86625846

PIN

spring

1шт.

12

84125425

TUBE,1295 mm Length

torque female

1шт.

13

84126879

SERVICE KIT,857 mm Length

tube male torque

1шт.

16

838-5845

LOCK PIN,M8 x 45, Slotted

1шт.

17

278649

YOKE

1шт.

21

87496837

YOKE

1 1/8" hex

1шт.

26

9807221

RING

bearing

1шт.

29

84125424

SHIELD

safety tube outer

1шт.

30

84125423

SHIELD

safety tube inner

1шт.

32

9807222

RING

bearing

1шт.

33

84126866

SHIELD

pto shaft safety

1шт.

35

84126865

SHIELD

pto shaft safety

1шт.

40

278645

CHAIN

2шт.

48

849472

DANGER DECAL

shield missing

1шт.

49

849471

DANGER DECAL

rotating driveline

1шт.

51

782083

LOCK PIN

And Spring

1шт.

58

84126864

RING

shield cone support

1шт.

59

84126864

RING

shield cone support

1шт.

61

84126842

YOKE

pto ball collar

1шт.

93

84125417

SHAFT

pto, half inboard

1шт.

94

84125395

SHAFT

pto, half inboard

1шт.

97

84125387

SHIELD

complete pto shaft kit

1шт.
