(09B-17) - KNIFE DRIVE SHAFT - BONDIOLI AND PAVESI - 15.0, 17.5 AND 20.0 FOOT HEADERS ASN CBJ044231

Запчасти Case IH 1010 (09B-17) - KNIFE DRIVE SHAFT - BONDIOLI AND PAVESI - 15.0, 17.5 AND 20.0 FOOT HEADERS ASN CBJ044231 (09) - CHASSIS/ATTACHMENTS

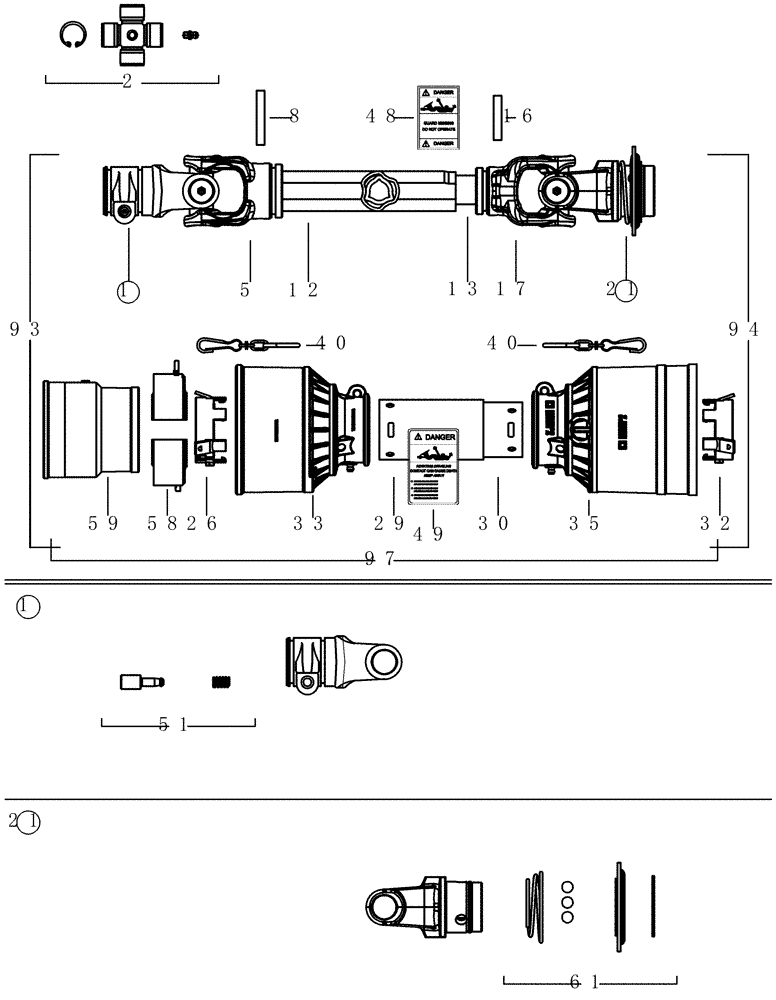

Схема запчастей Case IH 1010 - (09B-17) - KNIFE DRIVE SHAFT - BONDIOLI AND PAVESI - 15.0, 17.5 AND 20.0 FOOT HEADERS ASN CBJ044231 (09) - CHASSIS/ATTACHMENTS
2
1
26
97
61
93
48
12
13
94
5
1
32
40
16
40
33
29
8
21
21
51
49
59
30
35
17
58
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87438827

SHAFT

assembly, pto driveline 15'-20'

1шт.

1

1325022C1

YOKE

UNIVERSAL JOINT YOKE outside

1шт.

2

84126876

UNIVERSAL JOINT

cross and bearing

2шт.

5

84125366

YOKE

outer tube

1шт.

8

86625846

PIN

spring

1шт.

12

84125342

TUBE,735 mm Length

female torque

1шт.

13

9842396

TUBE

male

1шт.

16

838-5845

LOCK PIN,M8 x 45, Slotted

1шт.

17

278649

YOKE

1шт.

21

87496837

YOKE

1 1/8" hex

1шт.

26

9807221

RING

bearing

1шт.

29

84125352

SHIELD

safety tube outer

1шт.

30

84125331

SHIELD

safety tube inner

1шт.

32

9807222

RING

bearing

1шт.

33

84126866

SHIELD

pto shaft safety

1шт.

35

84126865

SHIELD

pto shaft safety

1шт.

40

278645

CHAIN

2шт.

48

849472

DANGER DECAL

shield missing

1шт.

49

849471

DANGER DECAL

rotating driveline

1шт.

51

782083

LOCK PIN

And Spring

1шт.

58

84126864

RING

shield cone support

1шт.

59

84126862

SHIELD

safety - cone

1шт.

61

84126842

YOKE

pto ball collar

1шт.

93

84125316

SHAFT

pto, half outboard

1шт.

94

84125309

SHAFT

pto, half inboard

1шт.

97

84125296

SHIELD

complete kit

1шт.
