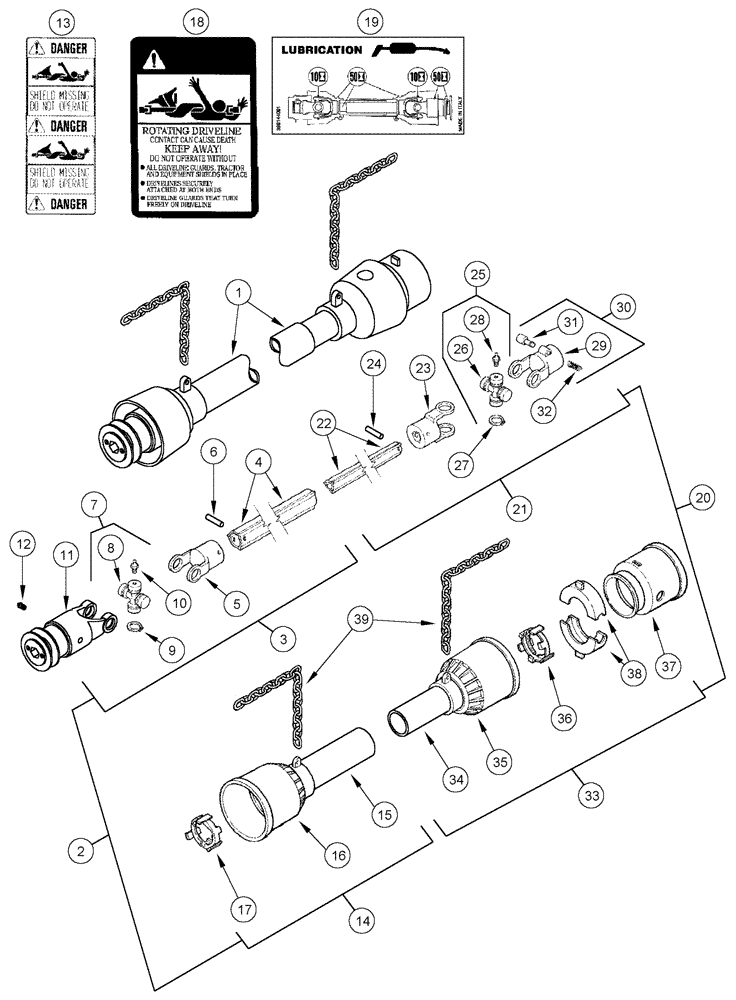

Запчасти Case IH 1010 (09B-16) - KNIFE DRIVE SHAFT BONDIOLI AND PAVESI - 15.0, 17.5 AND 20.0 FOOT HEADERS BEFORE 08/2008 (09) - CHASSIS/ATTACHMENTS

1

1313569C94

DRIVE SHAFT

PTO knife

1шт.

Includes 2 - 39

1шт.

2

86984228

DRIVE SHAFT

inboard half with shield, female

1шт.

Includes 3, 14

1шт.

3

86984229

SHAFT

female half

1шт.

Includes 4 - 13

1шт.

4

86984230

SHAFT

female

1шт.

5

1545200C1

YOKE

UNIVERSAL JOINT YOKE Female Tube

1шт.

6

838-5855

LOCK PIN,M8 x 55, Slotted

1шт.

7

1330586C1

REPAIR KIT

cross and bearing

1шт.

Includes 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Cross, Yoke with Bearings

1шт.

9

800-21240

SNAP RING,M240, Int

4шт.

10

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

11

368285A2

COLLAR

yoke, inboard shaft with coupler

1шт.

Includes 12

1шт.

12

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

13

1326528C1

DECAL

Danger, shield missing, do not operate

1шт.

14

86984231

INNER SHIELD

female half shaft

1шт.

Includes 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

Tube, Shield

1шт.

16

433495A1

SHIELD

PTO driveline quick attach coupler

1шт.

17

1544660C1

BEARING

shield support

1шт.

18

80672C1

DECAL

danger, rotating driveline

1шт.

19

433531A1

DECAL

PTO driveline lubrication

1шт.

19

433531A2

DECAL

PTO driveline lubrication

1шт.

20

86984232

SHAFT

outboard half with shield, male

1шт.

Includes 21, 33

1шт.

21

1326623C93

DRIVE SHAFT

male

1шт.

Includes 22 - 30

1шт.

22

86984233

SHAFT

male

1шт.

23

1545199C1

YOKE

UNIVERSAL JOINT YOKE inner shaft

1шт.

24

838-5845

LOCK PIN,M8 x 45, Slotted

1шт.

25

1330586C1

REPAIR KIT

cross and bearing

1шт.

Includes 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

Cross, Yoke with Bearings

1шт.

27

800-21240

SNAP RING,M240, Int

4шт.

28

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

29

1325022C1

YOKE

UNIVERSAL JOINT YOKE outside

1шт.

Includes 30

1шт.

30

782083

LOCK PIN

And Spring

1шт.

Includes 31, 32

1шт.

31

NSS

NOT SOLD SEPARAT

Pin, Latch

1шт.

32

NSS

NOT SOLD SEPARAT

Spring, Latch Pin Return

1шт.

33

1326630C92

OUTER SHIELD

inner male

1шт.

Includes 34 - 38

1шт.

34

NSS

NOT SOLD SEPARAT

Tube, Shield

1шт.

35

86985325

INNER SHIELD

PTO driveline cone with collar

1шт.

36

1544650C1

BEARING

Shield Support

1шт.

37

1326625C91

SHIELD

outer yoke

1шт.

Includes 38

1шт.

38

NSS

NOT SOLD SEPARAT

Bearing, Split

1шт.

39

1326632C1

CHAIN

safety

2шт.
