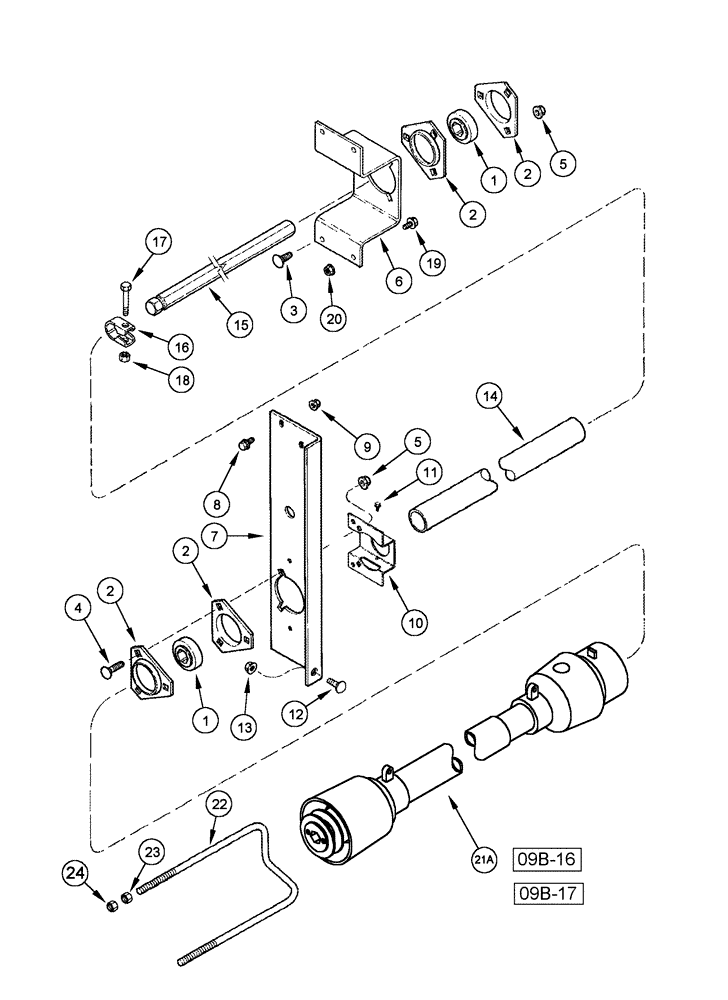

Запчасти Case IH 1010 (09B-12) - KNIFE JACKSHAFT DRIVE - 17.5 AND 20.0 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS

1

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

2шт.

2

86620026

FLANGED BEARING

bearing, Start Serial: CBJ023001

4шт.

3

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

4

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

3шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

6

87450190

SUPPORT

knife drive, Start Serial: CBJ023001

1шт.

7

87450191

SUPPORT

jackshaft, Start Serial: CBJ023001

1шт.

8

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

9

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

10

87450188

SUPPORT

plate shield, Start Serial: CBJ023001

1шт.

11

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

1шт.

12

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

13

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

14

125982A1

TUBE,48.26 mm OD, 448 mm Length

jackshaft 17.5 foot

1шт.

14

125983A1

TUBE,48.26 mm OD, 829 mm Length

jackshaft 20.0 foot

1шт.

15

125970A2

JACKSHAFT

17.5 foot

1шт.

15

125971A2

JACKSHAFT

20.0 foot

1шт.

16

87500159

CLAMP

tie rod, Start Serial: CBJ023001

1шт.

17

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

18

86992215

LOCK NUT,1/2"-13, GC

1шт.

19

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

3шт.

20

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

21a

1313569C94

DRIVE SHAFT

PTO knife, Serial Range: CBJ023001-CBJ044231

1шт.

See Figure 09B-16

1шт.

21a

87438827

SHAFT

assembly, pto driveline 15'-20', Start Serial: CBJ044231

1шт.

See Figure 09B-17

1шт.

22

138005A1

HANGER

drive line

1шт.

23

280431

NUT,1/2"-13, G5

2шт.

24

86992215

LOCK NUT,1/2"-13, GC

2шт.
