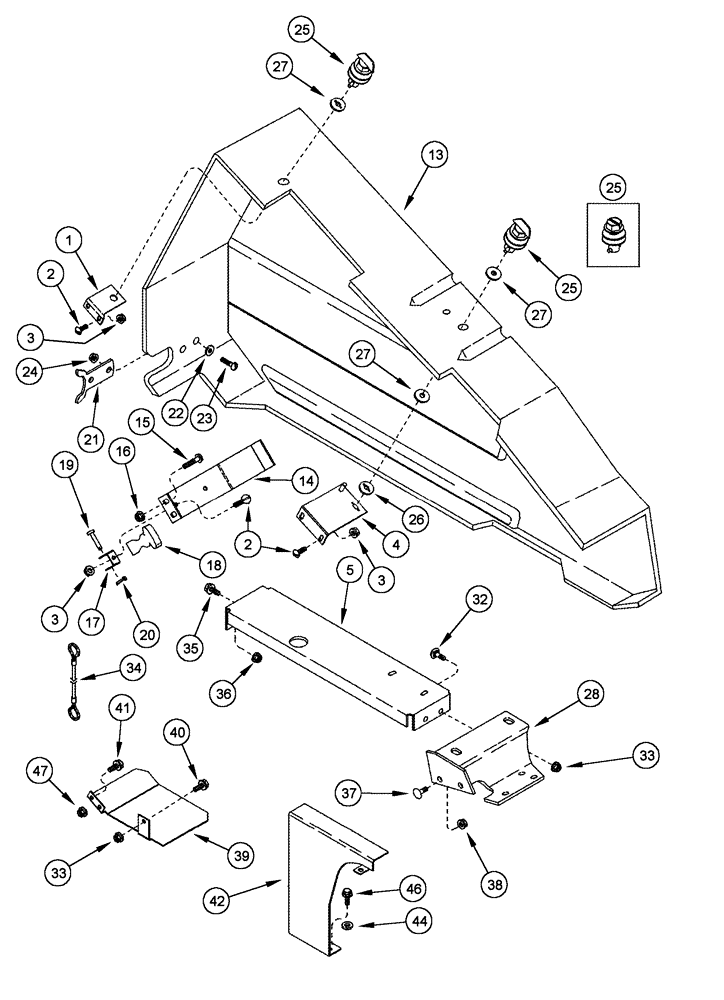

Запчасти Case IH 1010 (09B-10) - KNIFE DRIVE SHIELDS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
1316510C2
SUPPORT
upper shield
1шт.
2
135270
SERRATED SCREW,5/16" - 18 x 3/4"
4шт.
3
145458
SERRATED NUT,5/16"-18 GR 5 ZND
4шт.
4
1326758C1
SUPPORT
shield, upper front
1шт.
5
87450181
SHIELD
lower tray, Start Serial: CBJ023001
1шт.
13
1316691C4
SHIELD
LH drive
1шт.
14
87501771
SUPPORT
shield lower rear LH, Start Serial: CBJ023001
1шт.
15
477-73812
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
2шт.
16
247780
SERRATED NUT,Flg, USR, 3/8"-16
2шт.
17
87329241
BRACKET
Hook Anchor, Start Serial: CBJ023001
1шт.
18
494307C1
LATCH
hook
1шт.
19
439-1424
HEADED PIN,6.35mm OD x 38.1mm L
1шт.
20
80755
COTTER PIN,1/8" OD x 1" L
1шт.
21
86975624
LATCH HOOK
hood panel, Start Serial: CBJ023001
1шт.
22
88612
WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk
2шт.
23
70-1108
SCREW,Pan HD, #10 - 24 x 1/2"
2шт.
23
470-11012
SCREW,Pan HD, #10 - 24 x 3/4"
2шт.
24
523310
SERRATED NUT,Flng, #10 - 24, Gr 5
flange, #10-24
2шт.
25
1326408C2
STUD,25.4mm OD x 52.3mm L
stud, shield
2шт.
25
252117A1
FASTENER
shield
1шт.
Australia Only
1шт.
26
1326407C1
RETAINER
shield stud
4шт.
27
495-81023
WASHER,17/32" x 1 1/4" x .030"
1шт.
28
125450A1
SUPPORT
knife box
1шт.
32
477-73812
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
2шт.
33
247780
SERRATED NUT,Flg, USR, 3/8"-16
5шт.
34
126396A1
CABLE
shield anchor
1шт.
35
30944
BOLT,Hex Flg, 1/2" - 13 x 1"
1шт.
36
86512371
SERRATED NUT,Flg, USR, 1/2"-13
1шт.
37
88707
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd
2шт.
38
86512371
SERRATED NUT,Flg, USR, 1/2"-13
2шт.
39
87450179
SHIELD
knife drive lower rear, Start Serial: CBJ023001
1шт.
40
9706726
BOLT,Hex Flg, 3/8" - 16 x 1"
1шт.
41
523292
BOLT,1/4" - 20 x 1.03" OAL
2шт.
42
87450182
SHIELD
knife drive belt, Start Serial: CBJ023001
1шт.
44
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
46
9627879
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd
1шт.
47
523282
SERRATED NUT,Flg, USR, 1/4"-20
2шт.
Выбрано товаров: 38
