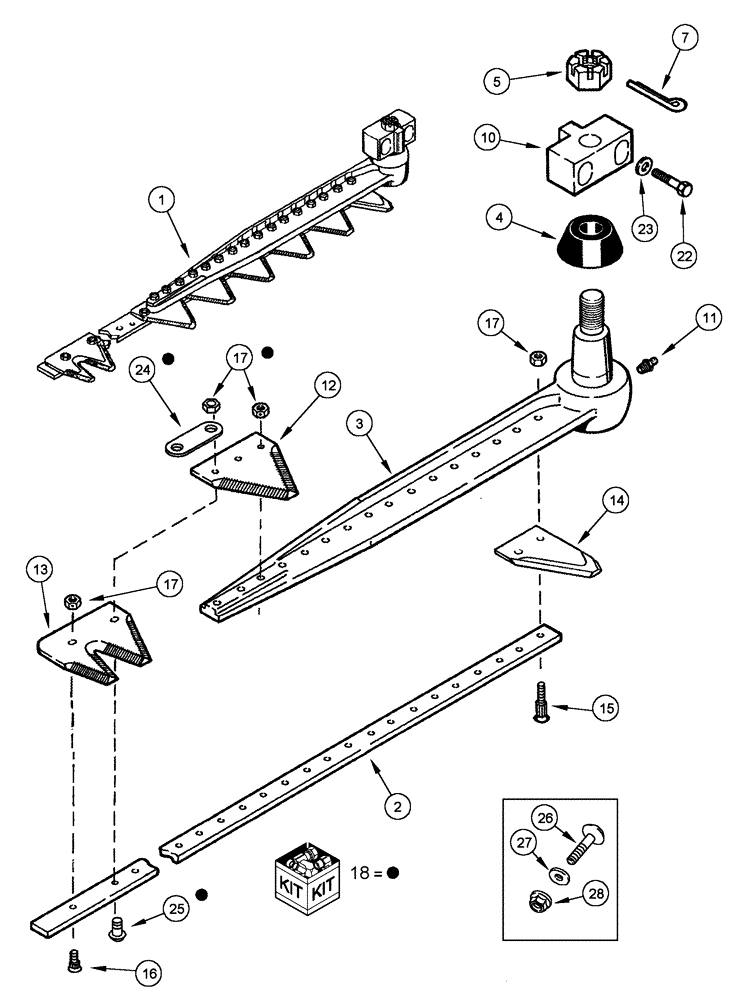

Запчасти Case IH 1010 (09B-07A) - KNIFE ASSEMBLY 3 INCH BOLTED FINE SERRATIONS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
451824A2
KNIFE ASSY
3" fine, 15.0 foot
1шт.
Includes 2 - 17
1шт.
1
451825A2
KNIFE ASSY
3" fine 17.5 foot
1шт.
Includes 2 - 17
1шт.
1
451826A2
KNIFE ASSY
3" fine 20.0 foot
1шт.
Includes 2 - 17
1шт.
1
451827A2
KNIFE ASSY
3" fine, 22.5 foot
1шт.
Includes 2 - 17
1шт.
1
451828A3
KNIFE ASSY
3" fine 25.0 foot
1шт.
Includes 2 - 17
1шт.
1
451829A3
KNIFE ASSY
3" fine 30.0 foot
1шт.
Includes 2 - 17
1шт.
2
NSS
NOT SOLD SEPARAT
Bar
1шт.
3
1316161C94
KNIFE HEAD
HEAD, KNIFE
1шт.
Includes 4
1шт.
3
1316161C95
KNIFE HEAD
HEAD, KNIFE
1шт.
Includes 4
1шт.
4
1345491C2
DUST CAP
cover
1шт.
5
86637930
SLOTTED NUT,5/8"-18, G5
1шт.
7
80708
COTTER PIN,1/8" x 1 1/2"
1шт.
10
1313797C1
BLOCK
knife head
1шт.
10
1313797C2
BLOCK
knife head
1шт.
11
87414
LUBE NIPPLE,1/4" - 28
1шт.
12
436995A1
KNIFE SECTION
SECTION, KNIFE 3" high shoulder
1шт.
12
596321R4
KNIFE SECTION
SECTION, KNIFE overserrated, Chrome, If Used
1шт.
13
324070A1
KNIFE SECTION
SECTION, KNIFE RH end
1шт.
14
1316030C2
KNIFE SECTION
SECTION, KNIFE 3", plain half
1шт.
15
1979166C1
BOLT
#12-24 x 1 1/8"
16шт.
16
700708646
BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"
#12-24 x 5/8" slot bt hd
1шт.
17
1954816C1
LOCK NUT
hex lock, No. 12-24
1шт.
18
321849A1
KIT
reinforcing strap for 3" knives
1шт.
Includes 17, 24, 25
1шт.
18
321849A2
KIT
reinforcing strap for 3" knives
1шт.
Includes 17, 24, 25
1шт.
22
280355
BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8
1шт.
23
396-21066
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
1шт.
24
321848A1
KNIFE CLIP
knife reinforcing, 3" knives
50шт.
25
87423458
BOLT,Truss HD, #12 - 24 x 0.7", Gr 8
#12-24 NC x .70" knurled neck
100шт.
26
88546
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5
1шт.
For bolting extra knife to header
1шт.
27
80702
WASHER,0.44" ID x 1" OD x 0.08" Thk
1шт.
For bolting extra knife to header
1шт.
28
247780
SERRATED NUT,Flg, USR, 3/8"-16
1шт.
For bolting extra knife to header
1шт.
Выбрано товаров: 44
