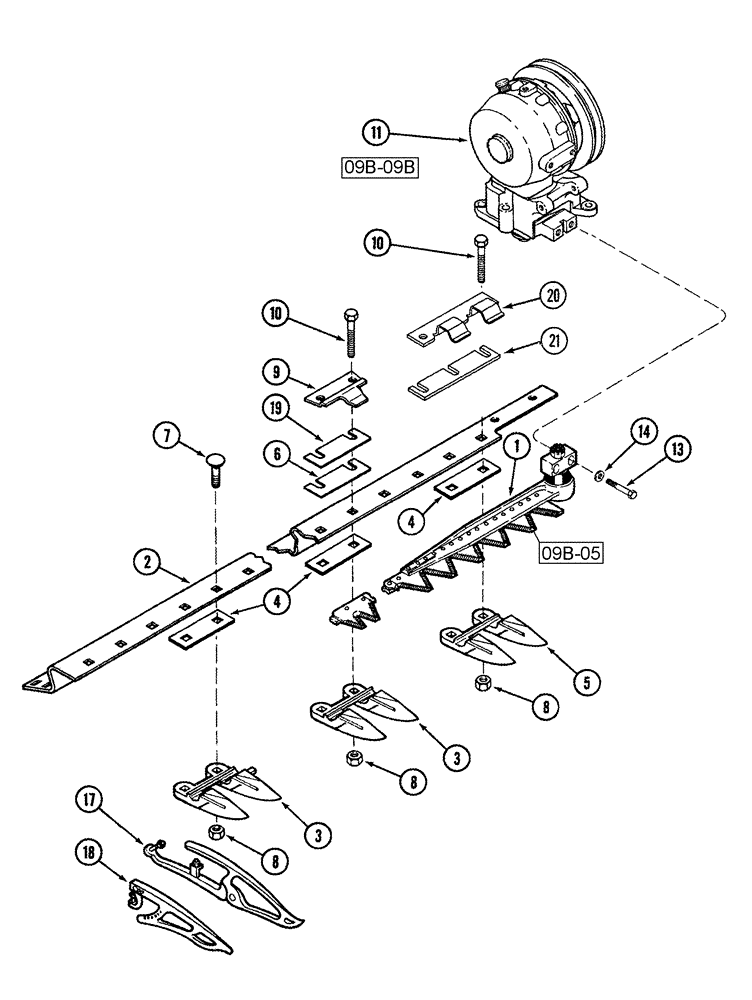

Запчасти Case IH 1010 (09B-02) - KNIFE GUARDS AND CUTTER BAR 3 INCH KNIFE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Knife Assy

1шт.

See Figure(s) 09B-05 - 09B-07

1шт.

2

129305A1

CUTTER BAR

15.0 foot

1шт.

2

87450129

CUTTERBAR

17.5 foot, Start Serial: CBJ023001

1шт.

2

87450130

CUTTERBAR

20.0 foot, Start Serial: CBJ023001

1шт.

2

129308A1

CUTTER BAR

22.5 foot

1шт.

2

87450131

CUTTERBAR

25.0 foot

1шт.

2

87450132

CUTTERBAR

30.0 foot, Start Serial: CBJ023001

1шт.

3

1307299C2

GUARD

knife 3" double

1шт.

3

334305A1

GUARD

knife, 3" double

1шт.

Service Option Only

1шт.

3

87442324

GUARD

knife, Start Serial: CBJ023001

1шт.

4

126628C1

SHIM

knife

1шт.

5

87442329

GUARD

knife, end, Start Serial: CBJ023001

3шт.

6

1316040C1

SHIM,38.1mm OD x 2.1mm Thk

4 1/2" x 1 1/2" x .067

1шт.

7

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

1шт.

8

87323838

FLANGE NUT

Flg, 7/16"-14, GF, Start Serial: CBJ023001

1шт.

9

1307280C3

KNIFE CLIP

hold down, low arch

1шт.

10

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

11

REF

INSTRUCTION

Box Assy

1шт.

See Figure 09B-09A

1шт.

13

280355

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

2шт.

14

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

2шт.

17

608787R91

GRAIN LIFTER

1шт.

18

163417C91

GRAIN LIFTER

heavy duty

1шт.

19

1316039C1

SHIM

4 1/2' x 1 1/2" x .016"

1шт.

20

375900A1

CLIP, KNIFE

hold down LH 3"

1шт.

21

379093A1

SHIM,38.1mm OD x 0.7mm Thk

3" knife, head hold down

3шт.
