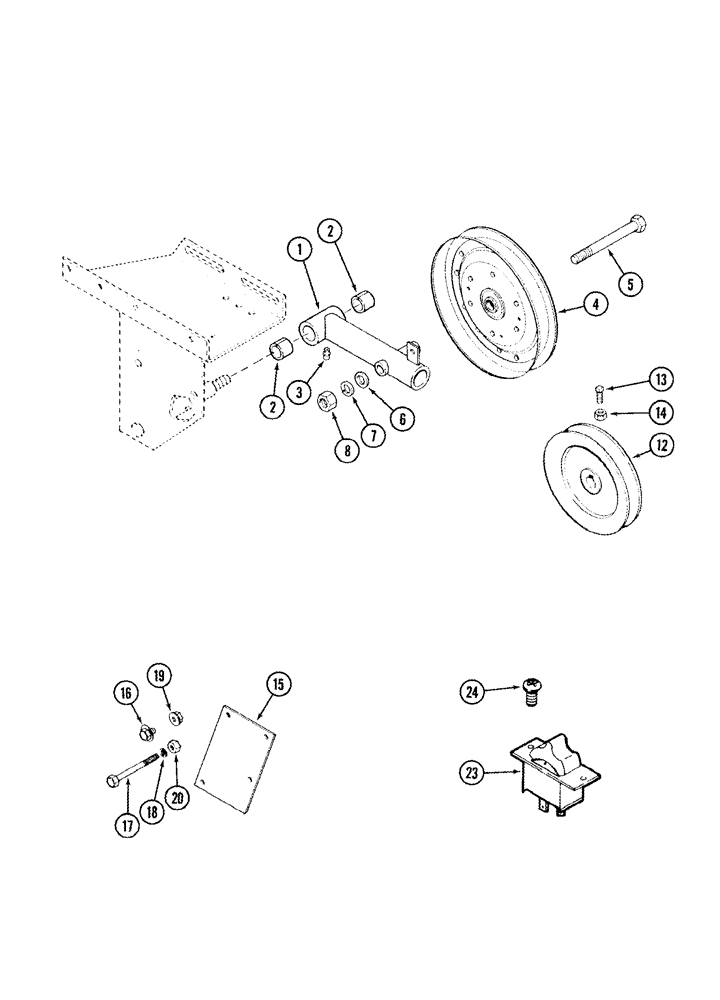

Запчасти Case IH 1010 (09A-24) - REEL DRIVES 1440E, 1460E AND 1480E COMBINES PREVIOUSLY EQUIPPED WITH 825 HEADER (09) - CHASSIS/ATTACHMENTS

1

195528C92

ARM

pump tightener

1шт.

Includes 2

1шт.

2

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

tightener arm

2шт.

3

87414

LUBE NIPPLE,1/4" - 28

1шт.

4

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

idler, belt, 8-3/4" OD

1шт.

5

424-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 2

1шт.

6

495-81175

WASHER,21/32" x 1" x .120"

1шт.

7

12034871

WASHER

5/8"

1шт.

8

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

12

193252C1

PULLEY

pump driven, 7.5" OD, 7/8" ID

1шт.

13

87616

SET SCREW,3/8" - 16 x 3/4"

2шт.

14

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

15

1315461C1

BRACKET

reel speed valve

1шт.

16

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

17

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

2шт.

18

80681

LOCK WASHER,5/16"

2шт.

19

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

2шт.

23

1301176C2

SWITCH

reel speed

1шт.

24

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

1шт.
