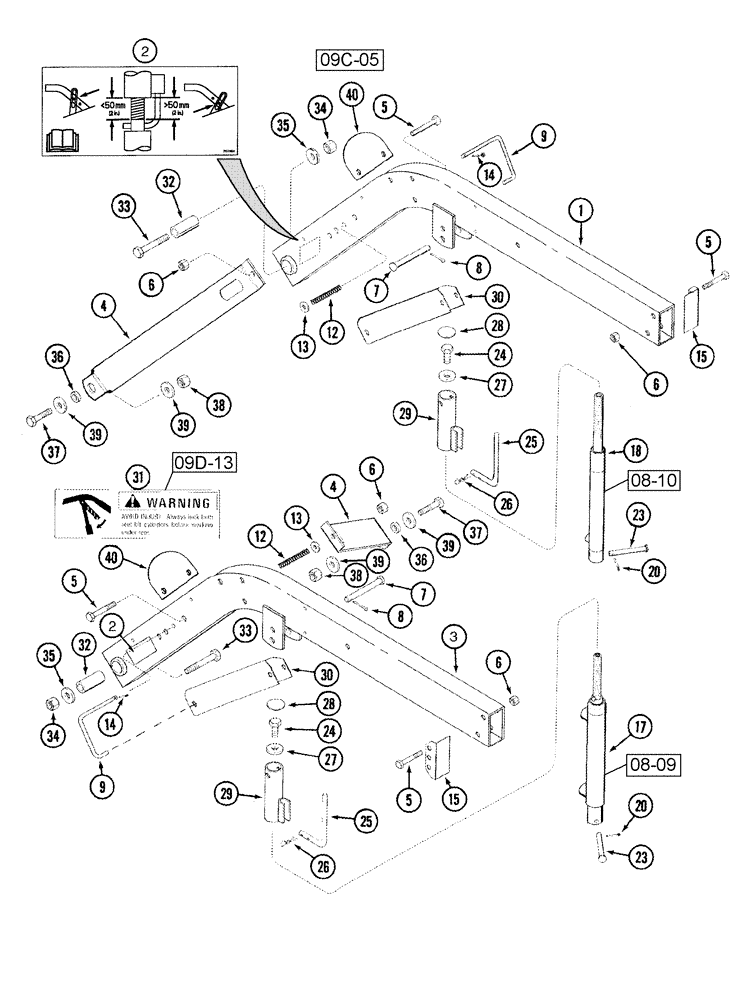

Запчасти Case IH 1010 (09A-21) - REEL SUPPORT ARMS AND LIFT CYLINDERS (09) - CHASSIS/ATTACHMENTS

1

304197A1

ARM

reel support LH

1шт.

Includes 2

1шт.

2

296796A1

DECAL

auger lift bracket

2шт.

3

304198A1

ARM

reel support RH

1шт.

Includes 2

1шт.

4

87450171

SUPPORT

brace, reel arm, Start Serial: CBJ023001

2шт.

5

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

6

86992215

LOCK NUT,1/2"-13, GC

4шт.

7

86979987

HEADED PIN,1/2" x 3", G5

2шт.

8

394818

COTTER PIN,M5 x 25

2шт.

9

1320928C1

ROD

stand support

2шт.

12

M296

SPRING

2шт.

13

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

2шт.

14

80756

COTTER PIN,1/8" x 3/4"

2шт.

15

1305175C4

BRACKET

reflector

2шт.

17

87644249

HYDRAULIC CYLINDER,Double Acting, 28.7mm Rod, 238.51mm Stroke

1 1/2" x 9 3/8", Reel Lift Master, Start Serial: CBJ023001

1шт.

See Figure 08-09

1шт.

18

128726A2

HYDRAULIC CYLINDER,25.32mm Rod, 238.25mm Stroke

1 x 9 3/8", Reel Lift Slave, Start Serial: CBJ023001

1шт.

See Figure 08-10

1шт.

128726A2R

REMAN-HYD CYLINDER

1010 P.I.N. CBJ023001 AND AFTER, Start Serial: CBJ023001 (11/04-)

1шт.

128726A2C

CORE-HYD CYLINDER

Return Number

1шт.

20

394818

COTTER PIN,M5 x 25

2шт.

23

86979987

HEADED PIN,1/2" x 3", G5

2шт.

24

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

25

87045536

ROD

Lock, Start Serial: CBJ023001

2шт.

26

87045537

HAIR PIN COTTER

.148 x 3 5/16"

2шт.

27

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

2шт.

28

87045538

PLUG

Button, Start Serial: CBJ023001

2шт.

29

87045535

TUBE

reel arm adjusting, Start Serial: CBJ023001

2шт.

30

87502140

SUPPORT

lift cylinder, Start Serial: CBJ023001

1шт.

Includes 31

1шт.

30

87502140

SUPPORT

lift cylinder, Start Serial: CBJ023001

1шт.

Includes 31

1шт.

31

185067A1

DECAL

warning, avoid injury, always lock both reel lift cylinders

1шт.

See Figure 09D-13

1шт.

32

128427A1

SPACER

reel arm

2шт.

33

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

2шт.

34

231-41112

LOCK NUT,3/4"-10, GB

2шт.

35

86624162

WASHER,0.81" ID x 1.5" OD x 0.18" Thk

2шт.

36

128426A1

SPACER

reel arm strap

2шт.

37

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

38

85700693

NUT,5/8" - 11, Gr C

2шт.

39

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

, Start Serial: CBJ023001

4шт.

40

87450178

SHIELD

auger lift bracket, Start Serial: CBJ023001

2шт.

See Figure 09C-05

1шт.
