Запчасти Case IH 1010 (09A-13A) - PICKUP REEL - STEEL TINE ASSY (09) - CHASSIS/ATTACHMENTS

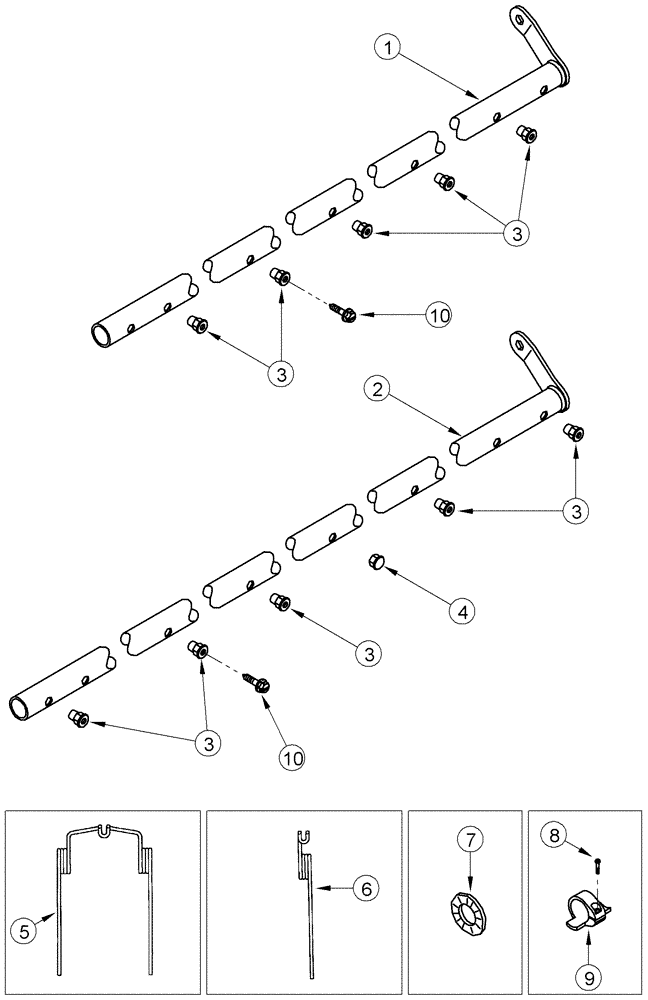

Схема запчастей Case IH 1010 - (09A-13A) - PICKUP REEL - STEEL TINE ASSY (09) - CHASSIS/ATTACHMENTS
10
8
3
10
3
5
2
3
9
7
3
6
1
4
3

Артикул

Название

Примечание

Количество

1

427438A1

TINE BAR

15.0 foot with retainer outboard

3шт.

Includes 3 (15)

1шт.

1

427442A1

TINE BAR

17.5 foot with retainer outboard

3шт.

Includes 3 (18)

1шт.

1

427444A1

TINE BAR

20.0 foot with retainer outboard

3шт.

Includes 3 (21)

1шт.

1

427447A1

TINE BAR

22.5 foot with retainer outboard

3шт.

Includes 3 (24)

1шт.

1

427448A1

TINE BAR

25.0 foot with retainer outboard

3шт.

Includes 3 (25)

1шт.

1

427451A1

TINE BAR

30.0 foot with retainer outboard

3шт.

Includes 3 (32)

1шт.

2

427439A1

TINE BAR

15.0 foot with retainer inboard

3шт.

Includes 3 (17), 4

1шт.

2

427443A1

TINE BAR

17.5 foot with retainer inboard

3шт.

Includes 3 (20), 4

1шт.

2

427445A1

TINE BAR

20.0 foot with retainer inboard

3шт.

Includes 3 (22), 4

1шт.

2

427446A1

TINE BAR

22.5 foot with retainer inboard

3шт.

Includes 3 (25), 4

1шт.

2

427449A1

TINE BAR

25.0 foot with retainer inboard

3шт.

Includes 3 (27), 4

1шт.

2

427450A1

TINE BAR

30.0 foot with retainer inboard

3шт.

Includes 3 (32), 4

1шт.

3

NSS

NOT SOLD SEPARAT

Threaded Inserts (M8 Threads)

1шт.

3a

430246A1

TOOL

threaded insert installation, Not Illustrated

1шт.

4

430501A1

PLUG

plastic 12.7 OD x 10.3 ID

1шт.

5

427459A1

PACKAGE

double coil tine 5 pieces

1шт.

6

427460A1

PACKAGE

single coil tine 5 pieces

1шт.

7

427414A1

WASHER

Special 21/64 x 23/32 x 1/16"

1шт.

8

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

9

427415A1

STRAP

thrust retainer

1шт.

10

126173A1

SELF-TAP SCREW

hex washer head, slotted, special, 3.5 x 1.3 x 16 mm

1шт.

11

427417A1

PACKAGE

threaded insert

1шт.

Includes 3

1шт.

Not Shown

1шт.

Выбрано товаров: 36
