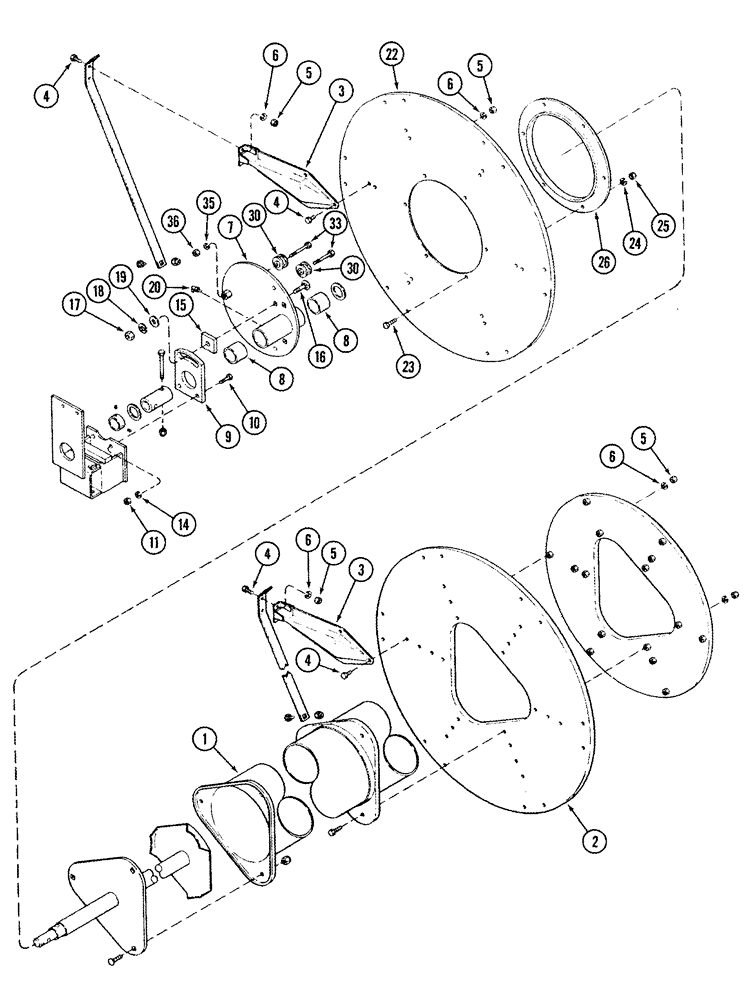

Запчасти Case IH 1010 (09A-03) - PICKUP REEL 6 BAT - 52 INCH REEL WITH STEEL TINES (09) - CHASSIS/ATTACHMENTS

1

1979485C1

SHAFT

center, 17.5 foot

1шт.

1

1316274C1

SHAFT

center (20.0 foot)

1шт.

2

180602C1

PLATE

spider

4шт.

3

167654C1

ARM

reel

36шт.

4

424-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

1шт.

4

424-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 2

24шт.

5

9635082

NUT,5/16" - 18, Gr 5

1шт.

6

80681

LOCK WASHER,5/16"

1шт.

7

180507C1

HUB ASSY.

eccentric roller

2шт.

Includes 8

1шт.

8

167666C1

BUSHING

roller frame

2шт.

9

827703C1

BAR

slot adjusting

2шт.

10

424-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 2

4шт.

11

280717

NUT,7/16"-14, G5

4шт.

14

81547

LOCK WASHER,7/16"

4шт.

15

953254R1

SPACER

slot adjusting

2шт.

16

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

17

280431

NUT,1/2"-13, G5

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

19

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

22

180377C1

PLATE

spider

2шт.

23

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

24

80681

LOCK WASHER,5/16"

12шт.

25

9635082

NUT,5/16" - 18, Gr 5

12шт.

26

167661C1

RING,271.65mm ID x 320.68mm OD

eccentric control

2шт.

30

598242R91

ROLLER BEARING,0.376" ID x 2.25" OD x 1"

ball

6шт.

33

424-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 2

6шт.

35

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

36

9628503

NUT,3/8"-16, G5

6шт.
