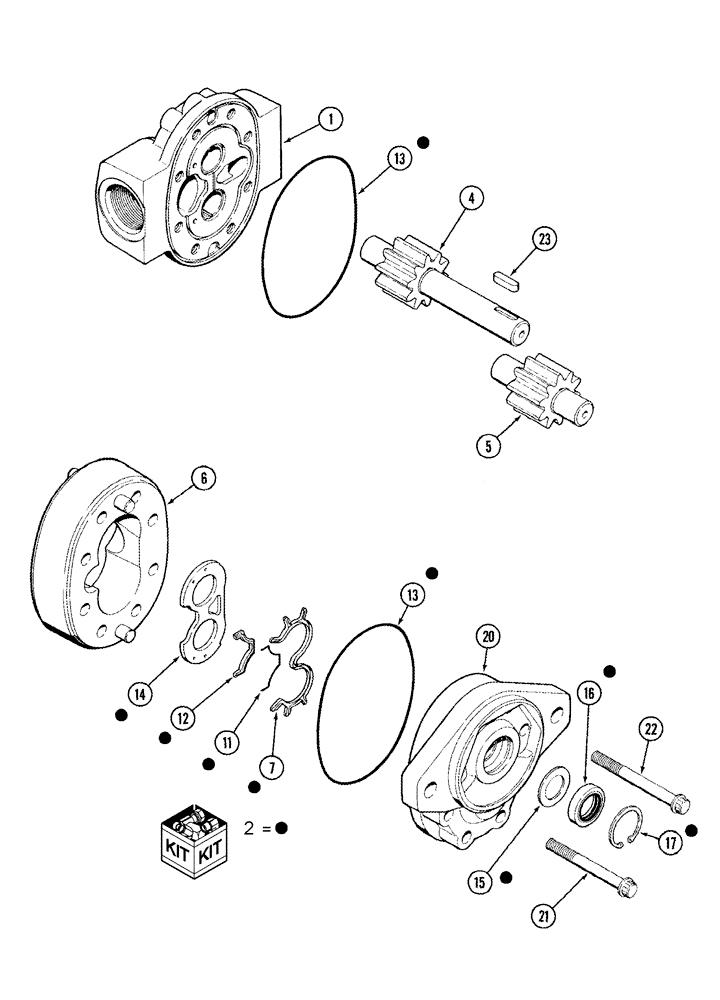

Запчасти Case IH 1010 (08-17) - REEL DRIVE PUMP ASSEMBLY (08) - HYDRAULICS

0

1272633C91

HYDRAULIC PUMP,46.7 CC

reel drive

1шт.

Includes 1- 23

1шт.

0

1949288C1

REMAN-HYD PUMP

1шт.

Only for North America

1шт.

0

1949289C1

CORE-HYDRAULIC PUMP

1шт.

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

92586C1

SEAL KIT

1шт.

Includes 7 - 17

1шт.

4

NSS

NOT SOLD SEPARAT

Gear Assy

1шт.

5

NSS

NOT SOLD SEPARAT

Gear Assy

1шт.

6

NSS

NOT SOLD SEPARAT

Body

1шт.

7

NSS

NOT SOLD SEPARAT

Gasket, Plate

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

238-6159

O-RING,0.103" Thk x 4.977" ID, -159, Cl 6, 90 Duro

2шт.

14

NSS

NOT SOLD SEPARAT

Plate

1шт.

15

NSS

NOT SOLD SEPARAT

Washer

1шт.

16

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

shaft

1шт.

17

86629584

SNAP RING,1.375", Int, #137

1шт.

20

NSS

NOT SOLD SEPARAT

Housing

1шт.

21

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

4шт.

22

272419

SCREW

12 Pt Flg, 3/8"-16 x 3 3/4", G8

4шт.

23

H233445

KEY

1шт.
