Запчасти Case IH 1010 (08-14) - REEL DRIVE SYSTEM 1440E, 1460E AND 1480E COMBINE (08) - HYDRAULICS

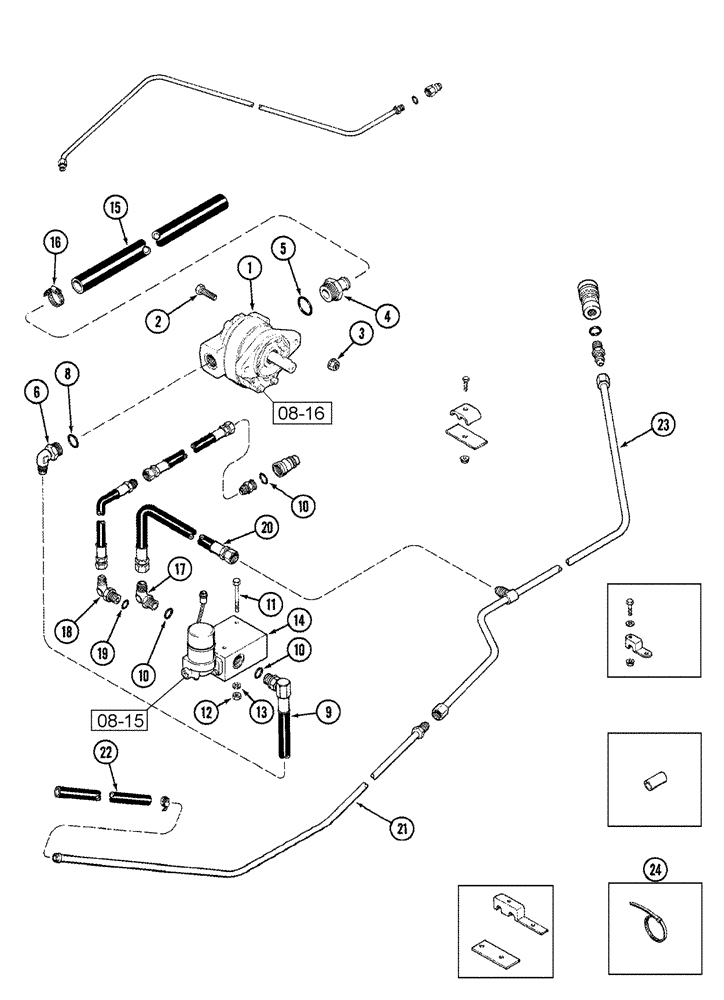

Схема запчастей Case IH 1010 - (08-14) - REEL DRIVE SYSTEM 1440E, 1460E AND 1480E COMBINE (08) - HYDRAULICS
2
3
12
8
16
19
10
24
10
1
17
14
6
13
5
08-16
9
4
23
08-15
22
18
11
20
15
10
21

Артикул

Название

Примечание

Количество

1

1272633C91

HYDRAULIC PUMP,46.7 CC

reel drive

1шт.

See Figure 08-17

1шт.

2

86512179

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/2"

2шт.

3

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

4

1282383C1

FITTING,1-5/8" - 12 ORB x

1 5/8-12 x 1 flared

1шт.

5

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

6

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

1315460C1

HOSE,12.7mm ID x 900mm L, SAE 100R7

pump pressure, 900 mm (35 inch) long, hydraulic, 1/2 ID

1шт.

10

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

280275

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

2шт.

13

80681

LOCK WASHER,5/16"

2шт.

14

1282369C92

VALVE

reel drive

1шт.

See Figure 08-16

1шт.

15

198303C1

HYDRAULIC HOSE,1.00" ID x 40.00", SAE 100R4 Class 4

Reel Drive Suction

1шт.

Cut From S118401X

1шт.

16

86536660

HOSE CLAMP,25mm - 44mm

2шт.

17

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

18

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

1317073C1

HOSE

635 mm (25") long, hydraulic, 1/2 ID

1шт.

21

196746C1

HYD TUBE

reel drive return

1шт.

1440E Combine

1шт.

1460E Combine

1шт.

21

187830C1

HYD TUBE

reel drive return

1шт.

1480E Combine

1шт.

22

NSS

NOT SOLD SEPARAT

Hose

1шт.

Cut From S118576

1шт.

23

1312411C1

HYD TUBE

reel drive return

1шт.

1440E Combine

1шт.

1460E Combine

1шт.

23

1325306C1

HYD TUBE,16 mm Diameter, 1570, 135 mm Length

reel drive return

1шт.

1480E Combine

1шт.

24

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

Выбрано товаров: 35
