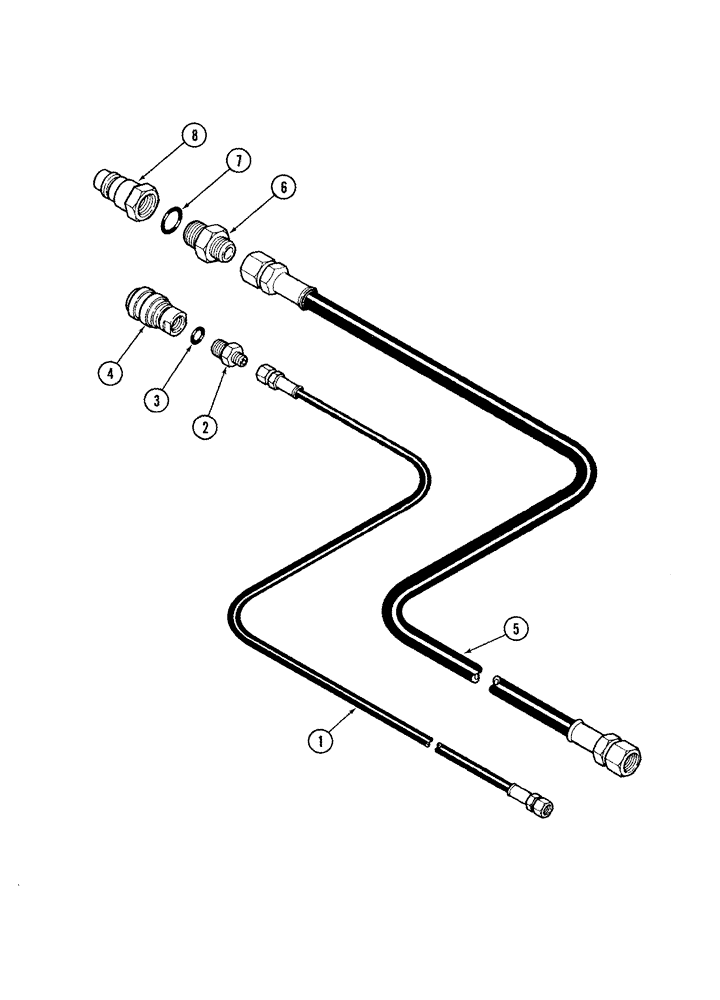

Запчасти Case IH 1010 (08-11) - HEADER TO COMBINE CONNECTING HOSES 1400 SERIES COMBINES (08) - HYDRAULICS

0

1326596C91

PACKAGE

hydraulic hose completing

1шт.

Includes 1- 8

1шт.

1

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

1727 mm (68") long, header to combine reel lift

1шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

187563C1

COUPLING, QUICK, FEM

9/16"-18

1шт.

5

D51685

HOSE

reel drive, 1676 mm (66 in)

2шт.

6

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

7

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

395149R1

QUICK MALE COUPLING

male, 7/8 inch NF

1шт.

8

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

1шт.
