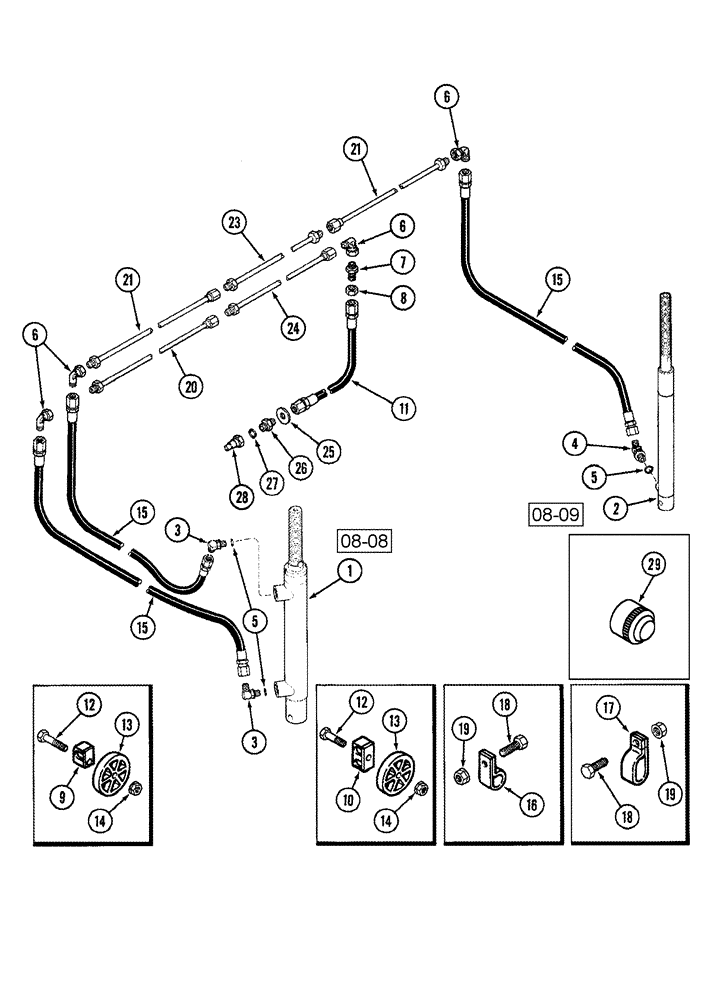

Запчасти Case IH 1010 (08-05) - REEL LIFT HYDRAULIC SYSTEM - 22.5, 25.0 AND 30.0 FOOT (08) - HYDRAULICS

1

87644249

HYDRAULIC CYLINDER,Double Acting, 28.7mm Rod, 238.51mm Stroke

1 1/2" x 9 3/8", Reel Lift Master, Start Serial: CBJ023001

1шт.

See Figure 08-09

1шт.

2

128726A2

HYDRAULIC CYLINDER,25.32mm Rod, 238.25mm Stroke

1 x 9 3/8", Reel Lift Slave, Start Serial: CBJ023001

1шт.

See Figure 08-10

1шт.

128726A2R

REMAN-HYD CYLINDER

1010 P.I.N. CBJ023001 AND AFTER, Start Serial: CBJ023001 (11/04-)

1шт.

128726A2C

CORE-HYD CYLINDER

Return Number

1шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

4

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

6

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

4шт.

7

87500971

ADAPTER,9/16" - 18 JIC x 9/16" - 18 JIC

, Start Serial: CBJ023001

1шт.

8

86525

LOCK NUT,Blkhd, 9/16"-18

1шт.

9

183821C1

CLAMP

tube, single, 3/8" OD tube

2шт.

10

183825C1

CLAMP

3/8" tubes

4шт.

11

1254527C2

HYDRAULIC HOSE

1/4" x 37" fl

1шт.

12

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

6шт.

13

1326572C1

SPACER

10 mm, long

6шт.

14

9626558

FLANGE NUT,Flg, 1/4"-20

6шт.

15

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

3шт.

16

86637979

CLAMP,20.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

17

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

18

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

2шт.

19

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

20

1316597C1

TUBE,0.375" OD, 1413 mm Length

reel lift

1шт.

22.5 foot

1шт.

20

1316601C1

TUBE,0.375" OD, 1794 mm Length

reel lift

1шт.

25.0 foot

1шт.

20

1316604C1

TUBE,0.375" OD, 2556 mm Length

3/8" x 100"

1шт.

30.0 foot

1шт.

21

1316603C1

TUBE,0.375" OD, 2655 mm Length

reel lift

2шт.

22.5 foot

1шт.

21

1316605C1

HYD TUBE,0.375" OD, 3035 mm Length

3/8" x 119 1/2"

2шт.

25.0 foot

1шт.

21

1338420C1

HYDRAULIC HOSE,0.375" OD, 3080 mm Length

reel lift

2шт.

30.0 foot

1шт.

23

1316598C1

TUBE,0.375" OD, 1613 mm Length

reel lift

1шт.

22.5 and 25.0 foot

1шт.

23

1338421C1

TUBE,0.375" OD, 3080 mm Length

reel lift

1шт.

30.0 foot

1шт.

24

1338419C1

TUBE,0.375" OD, 3027 mm Length

reel lift

1шт.

25

1541804C1

WASHER

black, special

1шт.

26

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

1шт.

27

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

1шт.

29

251635A1

CAP

fitting aluminum 3/8" with seal

4шт.
