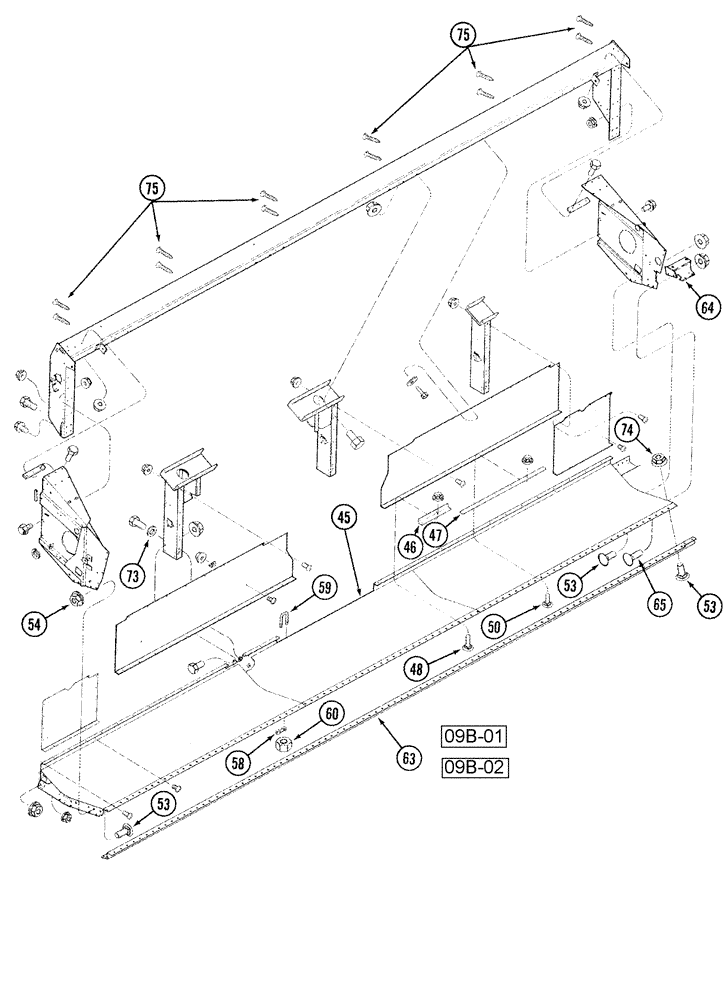

Запчасти Case IH 1010 (09D-04) - MAIN FRAME 22.5, 25.0 AND 30.0 FOOT HEADER (PART 2 OF 2) (09) - CHASSIS/ATTACHMENTS

45

132962A1

BEAM

lower 22.5 foot

1шт.

45

87500680

BEAM

lower 25.0 foot, Start Serial: CBJ023001

1шт.

45

87500679

BEAM

lower 30.0 foot, Start Serial: CBJ023001

1шт.

46

87450170

ANGLE

, Start Serial: CBJ023001

2шт.

47

87450186

STRIPPER

bar, Start Serial: CBJ023001

1шт.

48

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

50

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

53

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

15шт.

54

86512371

SERRATED NUT,Flg, USR, 1/2"-13

8шт.

58

86619254

PLATE,100mm L

bar feeder, Start Serial: CBJ023001

2шт.

59

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

BOLT "U" 5/8"-11, 4.6" ID Height, 2.18" ID Width

2шт.

60

86520346

NUT,5/8"-11, GB

4шт.

63

REF

INSTRUCTION

Bar

1шт.

See Figure(s) 09B-01, 09B-02

1шт.

64

125450A1

SUPPORT

knife box

1шт.

65

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

73

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

4шт.

74

232-5318

FLANGE NUT,Flg, 1/2"-13

9шт.

75

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

1шт.

76

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

Used to plug holes on lower beam.

1шт.

77

86624148

WASHER,0.53" ID x 1.5" OD x 0.18" Thk

2шт.

Used to plug holes on lower beam.

1шт.

78

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

Used to plug holes on lower beam.

1шт.
