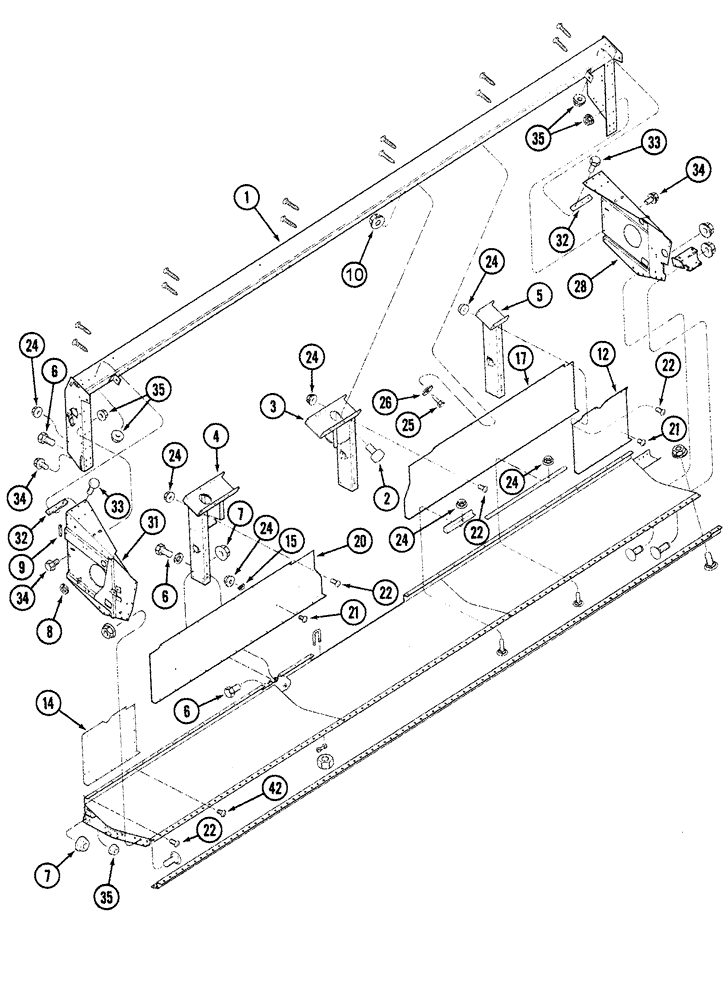

Запчасти Case IH 1010 (09D-03) - MAIN FRAME 22.5, 25.0 AND 30.0 FOOT HEADER (PART 1 OF 2) (09) - CHASSIS/ATTACHMENTS

1

87500686

BEAM

main 22.5 foot, Start Serial: CBJ023001

1шт.

1

87500687

BEAM

main 25.0 foot, Start Serial: CBJ023001

1шт.

1

87500688

BEAM

main 30.0 foot, Start Serial: CBJ023001

1шт.

2

87034823

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

20шт.

3

87500671

POST

vertical LH, Start Serial: CBJ023001

1шт.

4

87500672

POST

vertical RH, Start Serial: CBJ023001

1шт.

5

87500673

POST

intermediate LH, Start Serial: CBJ023001

1шт.

5

87500683

POST

intermediate RH, Start Serial: CBJ023001

1шт.

6

87301495

BOLT

5/8 x 1 1/4, G8, Start Serial: CBJ023001

40шт.

7

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

14шт.

8

135370A1

PROTECTION STRIP

194 mm (7-5/8 in), Cut From 1330108CX

1шт.

Cut From 1330108CX

1шт.

9

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

76 mm (3") long, cut from 1330108CX bulk

1шт.

Cut From 1330108CX

1шт.

10

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

, Start Serial: CBJ023001

40шт.

12

87502074

SHEET

back 22.5 foot LH, Start Serial: CBJ023001

1шт.

Includes Decal

1шт.

12

87502075

SHEET

back 25' LH, Start Serial: CBJ023001

1шт.

Includes Decal

1шт.

12

87502076

SHEET

back 30.0 foot LH, Start Serial: CBJ023001

1шт.

Includes Decal

1шт.

14

87502077

SHEET

back 22.5 foot RH, Start Serial: CBJ023001

1шт.

Includes Decal

1шт.

14

87502079

SHEET

back 25.0 foot RH, Start Serial: CBJ023001

1шт.

Includes Decal

1шт.

14

87502080

SHEET

back 30.0 foot RH, Start Serial: CBJ023001

1шт.

Includes Decal

1шт.

15

87450148

ANGLE

shield chain, Start Serial: CBJ023001

4шт.

17

1326062C93

SHIELD

backsheet center LH

1шт.

Includes Decal

1шт.

20

1326063C94

SHIELD

backsheet center RH

1шт.

Includes Decal

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

39шт.

24

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

25

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

1шт.

26

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

1шт.

28

130816A5

SUPPORT

endsheet header LH

1шт.

Includes 32

1шт.

31

130817A4

SUPPORT

endsheet RH

1шт.

Includes 32

1шт.

32

1313966C1

BAR

shim

2шт.

33

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

6шт.

34

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

16шт.

35

247780

SERRATED NUT,Flg, USR, 3/8"-16

22шт.

42

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.
