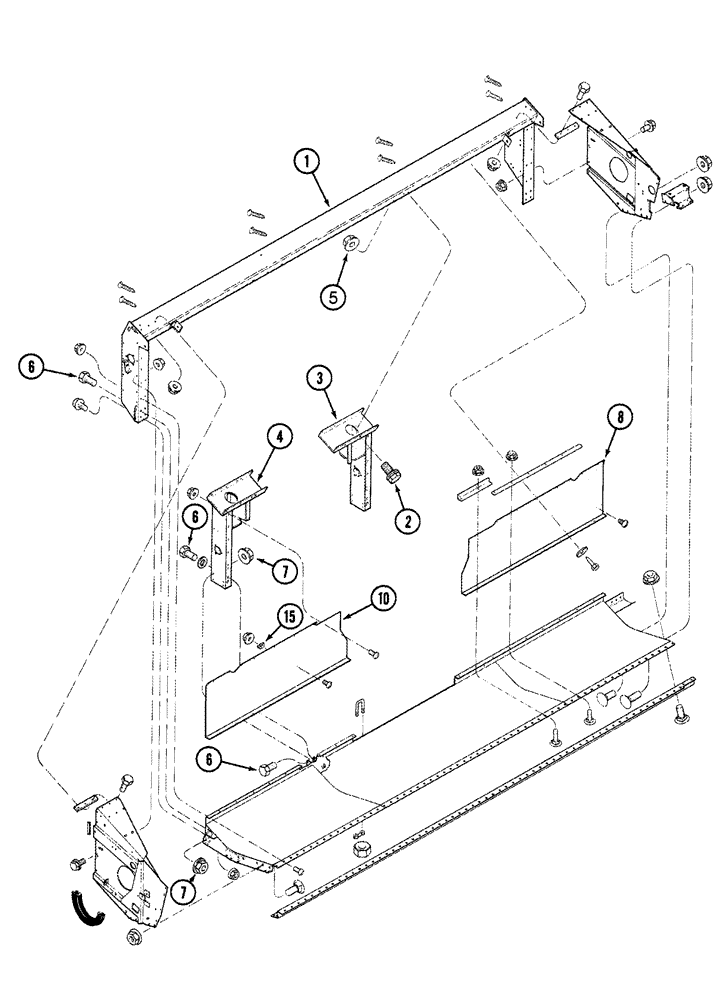

Запчасти Case IH 1010 (09D-01) - MAIN FRAME 15.0, 17.5 AND 20.0 FOOT HEADER (PART 1 OF 2) (09) - CHASSIS/ATTACHMENTS

1

125995A3

BEAM

main 15.0 foot

1шт.

1

87500684

BEAM

main 17.5 foot, Start Serial: CBJ023001

1шт.

1

87500685

BEAM

main 20.0 foot, Start Serial: CBJ023001

1шт.

2

87301495

BOLT

5/8 x 1 1/4, G8, Start Serial: CBJ023001

12шт.

3

87500671

POST

vertical LH, Start Serial: CBJ023001

1шт.

4

87500672

POST

vertical RH, Start Serial: CBJ023001

1шт.

5

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

, Start Serial: CBJ023001

12шт.

6

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

22шт.

7

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

18шт.

8

1326056C93

SHIELD

back with decal, LH 15.0 foot

1шт.

Includes Decal

1шт.

8

1326058C93

SHIELD

backsheet 17.5 foot LH

1шт.

Includes Decal

1шт.

8

1326060C93

SHIELD

backsheet 20.0 foot LH

1шт.

Includes Decal

1шт.

10

1326057C94

SHIELD

back with decal, RH 15.0 foot

1шт.

Includes Decal

1шт.

10

1326059C94

SHIELD

backsheet 17.5 foot RH

1шт.

Includes Decal

1шт.

10

1326061C94

SHIELD

backsheet 20.0 foot RH

1шт.

Includes Decal

1шт.

15

87450148

ANGLE

shield chain, Start Serial: CBJ023001

4шт.
