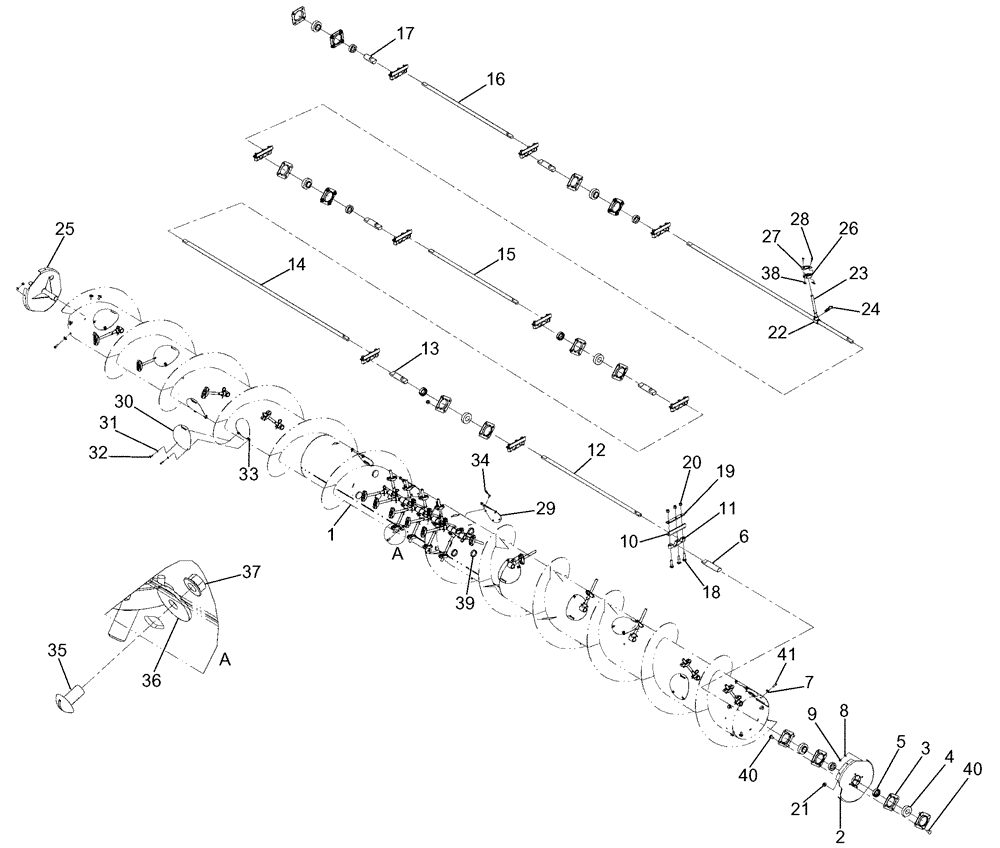

Запчасти Case IH 1010 (09C-17) - AUGER ASSEMBLY - FULL FINGERED ASN CBJ0330001 (09) - CHASSIS/ATTACHMENTS

1

87395785

AUGER

30.0 foot full fingered

1шт.

30 FT

1шт.

1

87519880

AUGER

25.0 foot full fingered with extension

1шт.

25 FT

1шт.

2

87541124

BULKHEAD

LH

1шт.

3

1307583C1

FLANGED BEARING

bearing 80 mm 4 bolt

14шт.

4

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

auger shaft

7шт.

5

455112R11

COLLAR

locking, bearing, with set screw

7шт.

6

444038A1

SHAFT

auger finger, adjusting, 175 mm

1шт.

7

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

12шт.

9

280136

NUT,3/8"-16, G8

12шт.

10

1320698C1

ANGLE

Auger Finger Shaft

10шт.

11

1326467C1

CLAMP

finger shaft

10шт.

12

87383149

SHAFT

auger finger

1шт.

25 FT

1шт.

13

444036A1

SHAFT

auger finger 162 mm

4шт.

14

87383146

SHAFT

auger finger

1шт.

25FT, Q = 2; 30FT, Q = 3

1шт.

15

87383145

SHAFT

auger finger, main

1шт.

16

87383148

SHAFT

auger finger

1шт.

25 FT

1шт.

16

87383147

SHAFT

auger finger

1шт.

30 FT

1шт.

17

435255A1

SHAFT

auger finger RH end 100 mm

1шт.

18

280504

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

30шт.

19

87441009

PLATE

auger tube

10шт.

20

86992215

LOCK NUT,1/2"-13, GC

30шт.

21

231-5348

FLANGE NUT,Flg, 1/2"-13

28шт.

22

1308425C1

HUB

Auger Finger

1шт.

25FT, Q = 28; 30FT, Q = 32

1шт.

23

434295A2

FINGER ASSY.,31.75mm OD x 227mm L

auger retractable

1шт.

25FT, Q = 28; 30FT, Q = 32

1шт.

24

185309A1

HAIR PIN COTTER

Quick Attachable

1шт.

25FT, Q = 28; 30FT, Q = 32

1шт.

25

435404A1

SHAFT

auger drive

1шт.

26

1307259C2

GUIDE

finger

1шт.

25FT, Q = 28; 30FT, Q = 32

1шт.

27

87383524

SPACER

auger finger guide

1шт.

25FT, Q = 10; 30FT, Q = 12

1шт.

28

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

25FT, Q = 56; 30FT, Q = 64

1шт.

29

87450151

COVER

auger drum

1шт.

25FT, Q = 2; 30FT, Q = 4

1шт.

30

87017844

COVER

10шт.

31

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

20шт.

32

120100

BOLT,M6 x 20mm, Cl 8.8

20шт.

33

86014250

SPRING NUT,M6 x 1.0

20шт.

34

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

12шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

36

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

2шт.

37

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

38

127550

NUT,Tee, 1/4"-20

1шт.

25FT, Q = 56; 30FT, Q = 64

1шт.

39

353-417

PLUG,Dome, 2.000" hole, Nylon

6шт.

40

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

41

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

12шт.

42

87539026

SELF-TAP SCREW,HWH, #12 - 24 x 1/2"

#12-24 x 1/2"

12шт.

30 FT

1шт.
