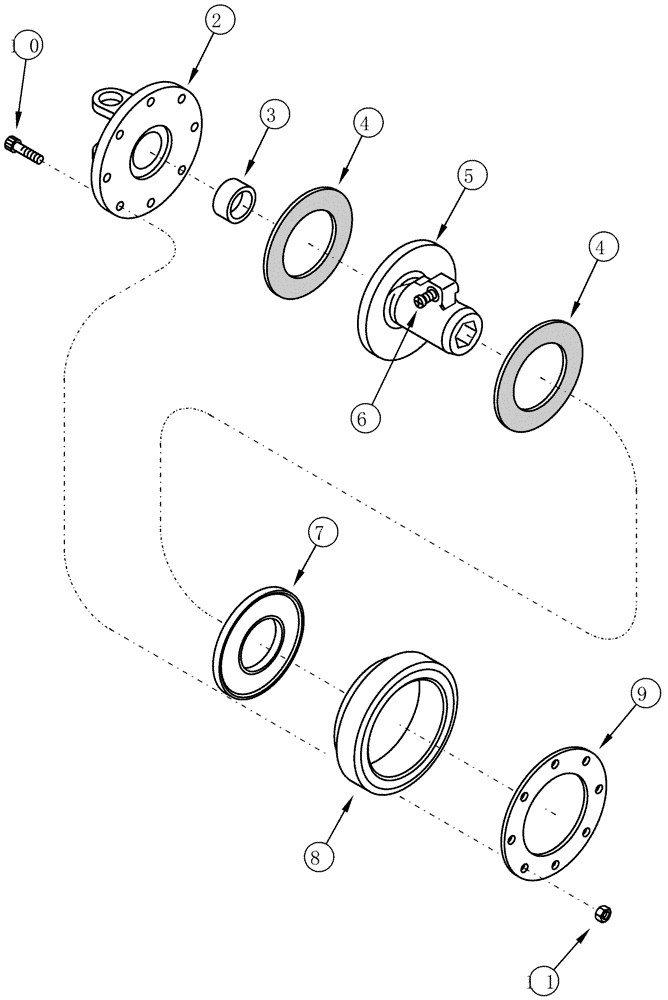

Запчасти Case IH 1010 (09C-15A) - SLIP CLUTCH AUGER DRIVE SHAFT (09) - CHASSIS/ATTACHMENTS

0

106089A2

CLUTCH ASSEMBLY

drive shaft

1шт.

Includes 2 - 11

1шт.

2

86984908

FLANGE

slip clutch yoke

1шт.

3

86984909

BUSHING

PTO Slip Clutch

1шт.

4

224584A2

CLUTCH PLATE

friction

2шт.

5

86984912

HUB

assembly, slip clutch

1шт.

Includes 6

1шт.

6

782083

LOCK PIN

And Spring

1шт.

Includes 6A, 6B

1шт.

6a

NSS

NOT SOLD SEPARAT

Pin, Latch

1шт.

Not Shown

1шт.

6b

NSS

NOT SOLD SEPARAT

Spring, Latch Pin Return

1шт.

Not Shown

1шт.

7

86984911

PLATE

slip clutch thrust

1шт.

8

86984914

COVER

slip clutch, ring

1шт.

9

86984913

BELLEVILLE WASHER

spring, slip clutch belleville washer

1шт.

10

86625002

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

8шт.

11

832-41308

NUT,M8 x 1.25, Cl 10

8шт.
