(1010) - GRAIN HEADER (P.I.N. CBJ023001 AND AFTER) (11/04-12/11)
/
(09) - CHASSIS/ATTACHMENTS
/

(09C-12A[01]) - DRIVE SHAFT 15.0, 17.5 AND 20.0 FOOT HEADER BEFORE 08/2008

Запчасти Case IH 1010 (09C-12A[01]) - DRIVE SHAFT 15.0, 17.5 AND 20.0 FOOT HEADER BEFORE 08/2008 (09) - CHASSIS/ATTACHMENTS

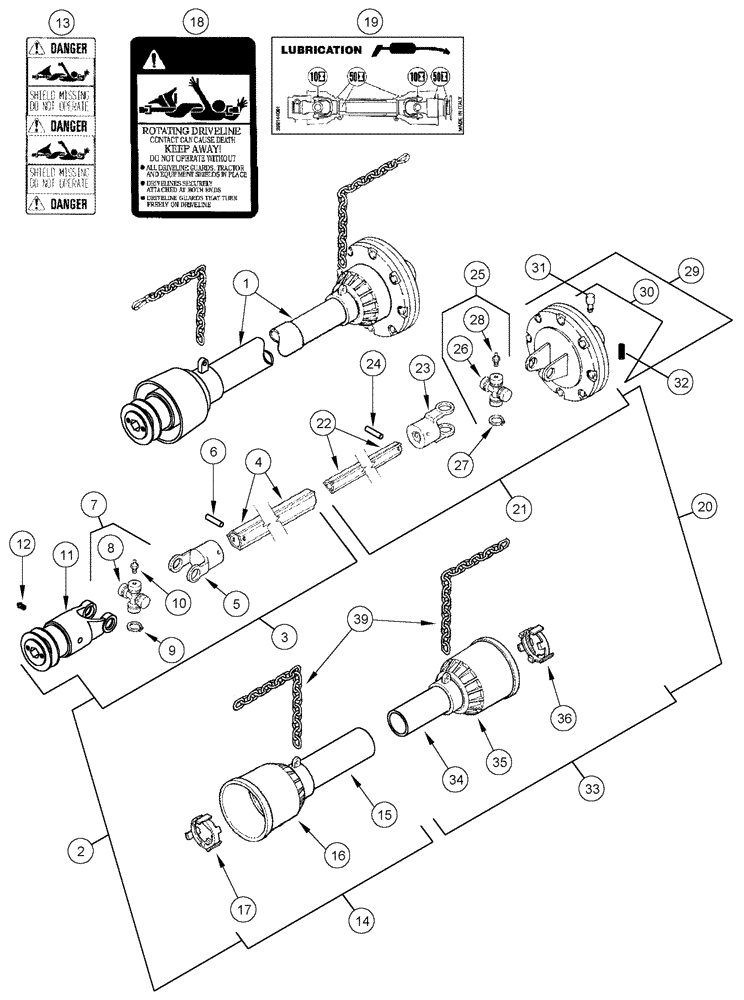

Схема запчастей Case IH 1010 - (09C-12A[01]) - DRIVE SHAFT 15.0, 17.5 AND 20.0 FOOT HEADER BEFORE 08/2008 (09) - CHASSIS/ATTACHMENTS
2
16
12
5
26
14
20
22
17
23
36
10
21
33
13
31
29
9
19
34
39
7
27
3
28
4
1
24
15
30
18
32
25
6
8
35
11

№

Артикул

Название

Примечание

Количество

1

106044A3

DRIVE SHAFT

PTO auger

1шт.

Includes 2 - 37

1шт.

2

86984228

DRIVE SHAFT

inboard half with shield, female

1шт.

Includes 3, 14

1шт.

3

86984229

SHAFT

female half

1шт.

Includes 4 - 13

1шт.

4

86984230

SHAFT

female

1шт.

5

1545200C1

YOKE

UNIVERSAL JOINT YOKE Female Tube

1шт.

6

838-5855

LOCK PIN,M8 x 55, Slotted

1шт.

7

1330586C1

REPAIR KIT

cross and bearing

1шт.

Includes 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Cross, Yoke with Bearings

1шт.

9

800-21240

SNAP RING,M240, Int

4шт.

10

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

11

368285A2

COLLAR

yoke, inboard shaft with coupler

1шт.

Includes 12

1шт.

12

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

13

1326528C1

DECAL

Danger, shield missing, do not operate

1шт.

14

86985326

SHIELD

female half shaft, kit

1шт.

Includes 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

Tube, Shield

1шт.

16

433495A1

SHIELD

PTO driveline quick attach coupler

1шт.

17

1544660C1

BEARING

shield support

1шт.

18

80672C1

DECAL

danger, rotating driveline

1шт.

19

433531A2

DECAL

PTO driveline lubrication

1шт.

20

86984302

SHAFT

outboard half with shield

1шт.

Includes 21, 33

1шт.

21

106110A2

SHAFT

male drive

1шт.

Includes 22 - 37

1шт.

22

86984233

SHAFT

male

1шт.

23

1545199C1

YOKE

UNIVERSAL JOINT YOKE inner shaft

1шт.

24

838-5845

LOCK PIN,M8 x 45, Slotted

1шт.

25

1330586C1

REPAIR KIT

cross and bearing

1шт.

Includes 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

Cross, Yoke with Bearings

1шт.

27

800-21240

SNAP RING,M240, Int

4шт.

28

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

29

106089A2

CLUTCH ASSEMBLY

drive shaft

1шт.

Includes 30

1шт.

See Figure 09C-15A

1шт.

30

782083

LOCK PIN

And Spring

1шт.

Includes 31, 32

1шт.

31

NSS

NOT SOLD SEPARAT

Pin, Latch

1шт.

32

NSS

NOT SOLD SEPARAT

Spring, Latch Pin Return

1шт.

33

106106A2

INNER SHIELD

inner male shaft

1шт.

Includes 34 - 37

1шт.

34

NSS

NOT SOLD SEPARAT

Tube, Shield

1шт.

35

86984322

SHIELD

male shaft cone with collar

1шт.

36

1544650C1

BEARING

Shield Support

1шт.

39

1326632C1

CHAIN

safety

2шт.
