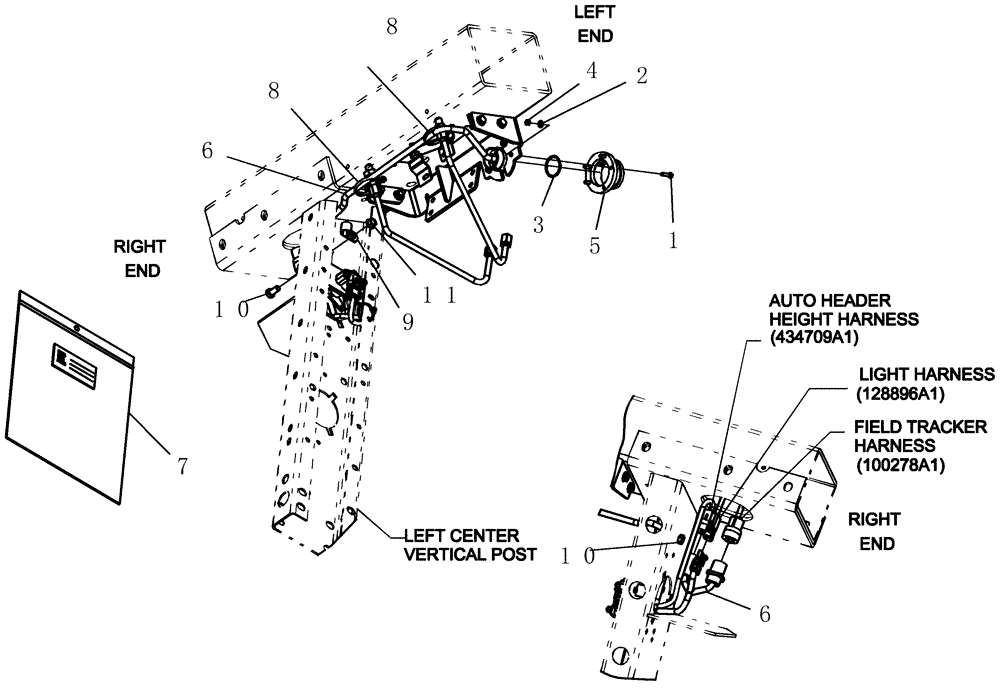

Запчасти Case IH 1010 (04-04) - KIT, CONVERSION FOR BRAZILIAN AF COMBINES, ELECTRICAL (04) - ELECTRICAL SYSTEMS

1

87662929

PACKAGE

harness assembly

1шт.

Includes ref 1 to 3

1шт.

2

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

3

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

4

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

5

86508813

NUT,M5, Cl 8

4шт.

6

86606228

COVER

1шт.

7

87639291

HARNESS

32.7' [830 mm] Long, Lights and AHHC

1шт.

8

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

6шт.

9

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

10

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.
