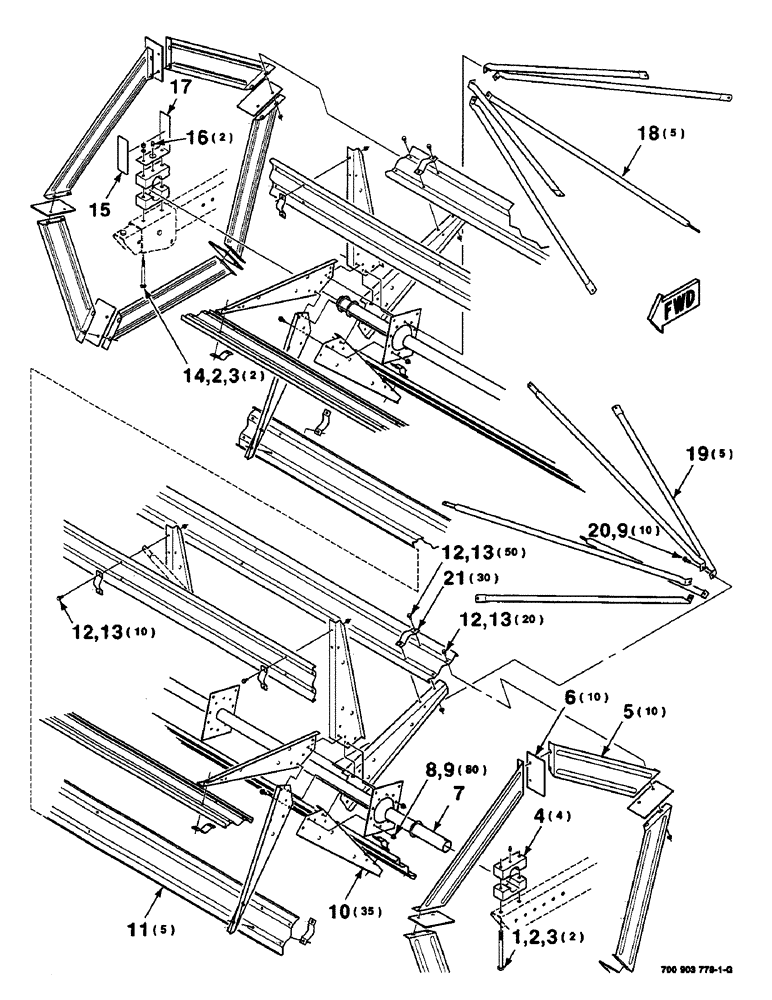

Запчасти Case IH 8840 (9-136) - REEL BAT KIT, HEAVY DUTY, 18 FOOT, HK60893 KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (58) - ATTACHMENTS/HEADERS

HK60893

REEL

BAT KIT (Heavy duty)

1шт.

1

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8-16 X 4-1/2 C

2шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

3

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

4шт.

4

700707236

BEARING HALF

BEARING - wood

4шт.

5

700118409

SHIELD

- end, reel

10шт.

6

700118408

FLAP

WEBBING

10шт.

7

700124379

TUBE,5480 mm Length

WA - reel

1шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

80шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

90шт.

10

700116314

ARM

- reel

35шт.

11

700715097

BAT

- reel (Heavy duty)

5шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

80шт.

13

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

80шт.

14

433-672

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

3/8-16 X 4-1/2 RHSNB

2шт.

15

878694

REFLECTOR

- amber

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 NPTF ZERK

2шт.

17

700116313

BRACKET

CAP - bearing

1шт.

18

700116315

ARM

TUBE - reel arm, right

5шт.

19

700116362

REINFORCEMENT,25.4 mm OD, 1058.5 mm Length

TUBE - reel arm, left

5шт.

20

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 X 1 HFSS

10шт.

21

6825418

CLIP

30шт.
