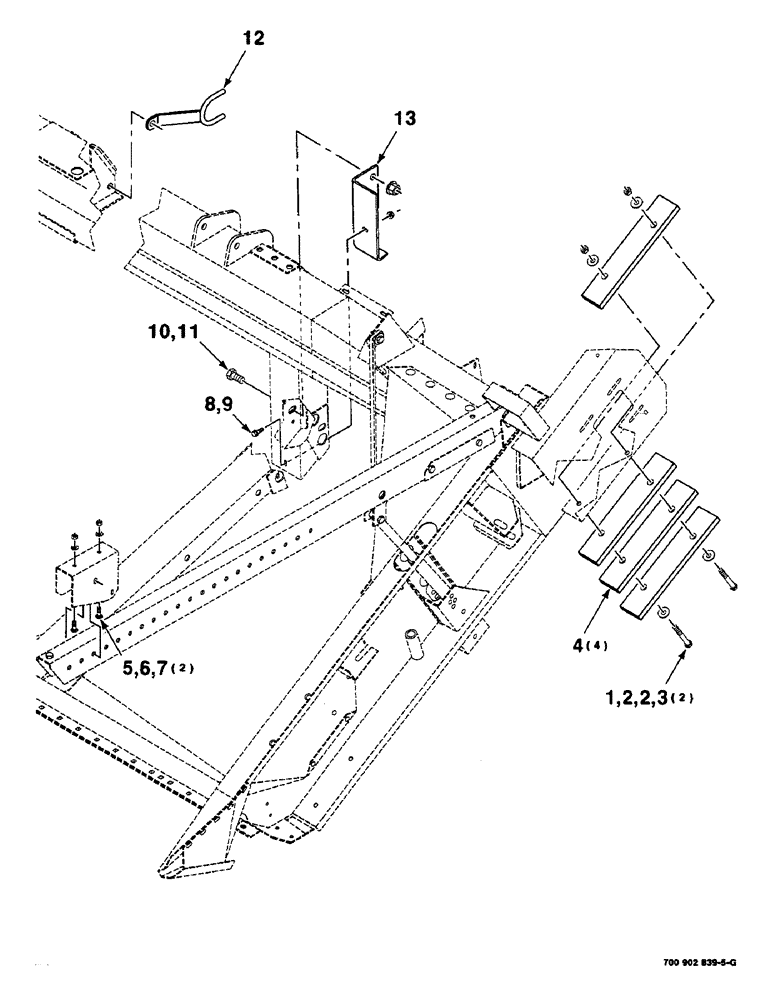

Запчасти Case IH 8840 (9-130) - BALANCE WEIGHTS AND LIFT ARM STOP ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

2шт.

2

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

4шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

4

700111574

BAR

- weight

4шт.

5

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

10

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

3/4-10 X 1-1/2 C

1шт.

11

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

1шт.

12

700124490

ANCHOR

WA - hose

1шт.

13

700124494

ANGLE

- stop

1шт.
