Запчасти Case IH 8830 (9-040) - HAY CONDITIONER PRIMARY DRIVE AND SHIELDS ASSEMBLY (58) - ATTACHMENTS/HEADERS

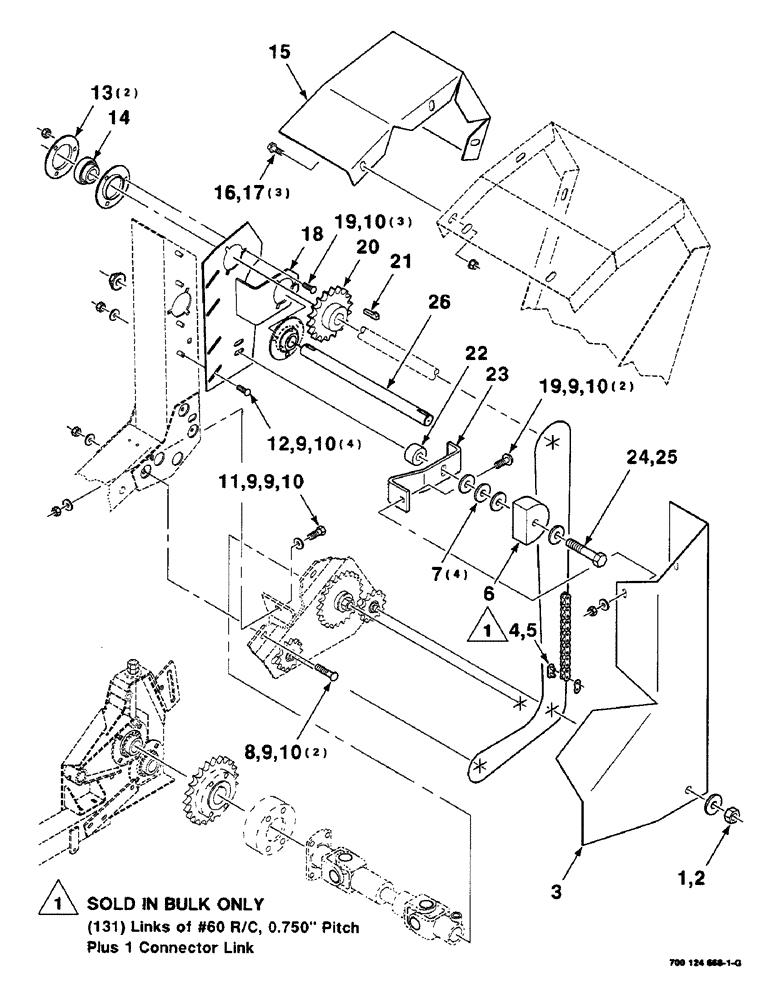

Схема запчастей Case IH 8830 - (9-040) - HAY CONDITIONER PRIMARY DRIVE AND SHIELDS ASSEMBLY (58) - ATTACHMENTS/HEADERS
10
9
14
18
7
22
24
25
9
21
26
23
13
10
16
10
17
15
19
9
12
5
10
10
9
3
9
1
19
2
20
11
4
6
8

Артикул

Название

Примечание

Количество

1

425-1010

NUT,5/8"-11, G5

1шт.

2

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

1шт.

3

700121791

SHIELD

1шт.

4

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 Foot bulk)

1шт.

5

241-1416

LINK

- connector, #60 R/C

1шт.

6

760728

BLOCK ASSY.

BLOCK - idler, chain

1шт.

7

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

4шт.

8

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

10шт.

10

425-106

NUT,3/8"-16, Cl 5

12шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

12

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

13

617863R1

FLANGED BEARING

- bearing

2шт.

14

710004

PTO SHAFT

- spherical

1шт.

15

700124664

SHIELD

1шт.

16

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

18

700124660

PLATE

- mounting

1шт.

19

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

5шт.

20

700124663

SPROCKET ASSY.

SPROCKET

1шт.

21

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 X 1-1/2 GIB KEY

1шт.

22

6833081

BUSHING

SPACER

1шт.

23

700124659

STRAP

- mounting

1шт.

24

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

25

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

26

700129123

SHAFT

1шт.

Выбрано товаров: 26
