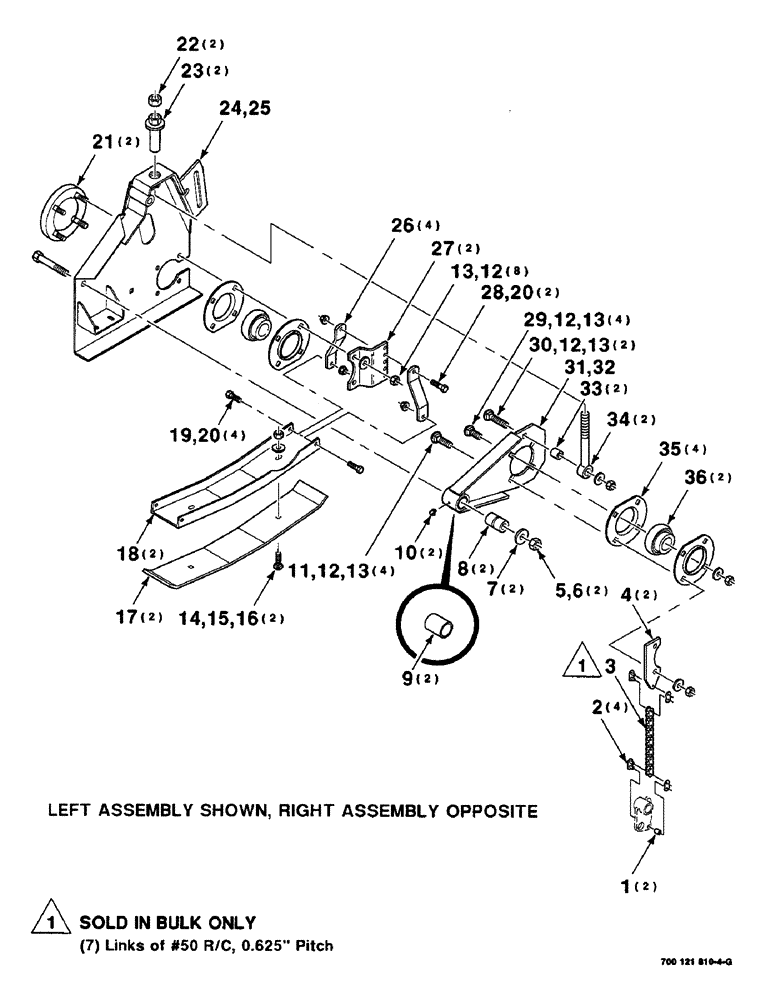

Запчасти Case IH 8830 (9-036) - HAY CONDITIONER PANEL ASSEMBLY, LEFT AND RIGHT (58) - ATTACHMENTS/HEADERS

1

700118104

SPACER

2шт.

2

47530

LINK, CONNECTING

CONNECTOR LINK - #50 R/C

4шт.

3

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 Foot bulk)

1шт.

4

700121834

STRAP

- anchor

2шт.

5

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

6834402

WASHER

2шт.

8

6834394

BUSHING,17.46mm ID x 31.75mm OD x 53.5mm L

2шт.

9

87010285

GUARD

- bronze

2шт.

10

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

11

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

4шт.

12

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

18шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

18шт.

14

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 X 1-1/4 PLOW BOLT

2шт.

15

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

16

425-106

NUT,3/8"-16, Cl 5

2шт.

17

700121840

PLATE

- skid shoe

2шт.

18

700121835

SHOE

SKID SHOE

2шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

20

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

21

700121844

RING

GRASS RING WA

2шт.

22

425-1112

NUT,3/4"-16, G5

3/4-16 H

2шт.

23

700108786

STOP

WA

2шт.

24

700121812

PANEL

WA-H/C, left

1шт.

25

700121813

PANEL

WA-H/C, right

1шт.

26

700121841

STRAP

4шт.

27

700121842

PLATE

- anchor

2шт.

28

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

29

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

4шт.

30

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

2шт.

31

700121827

ARM

WA - left (Includes item 9)

1шт.

32

700121828

ARM

WA - right (Includes item 9)

1шт.

33

700108790

SPACER

2шт.

34

700108789

EYEBOLT

DRAWBOLT

2шт.

35

428896

FLANGE

- bearing

4шт.

36

50328

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 18, 56.36 mm

- spherical

2шт.
