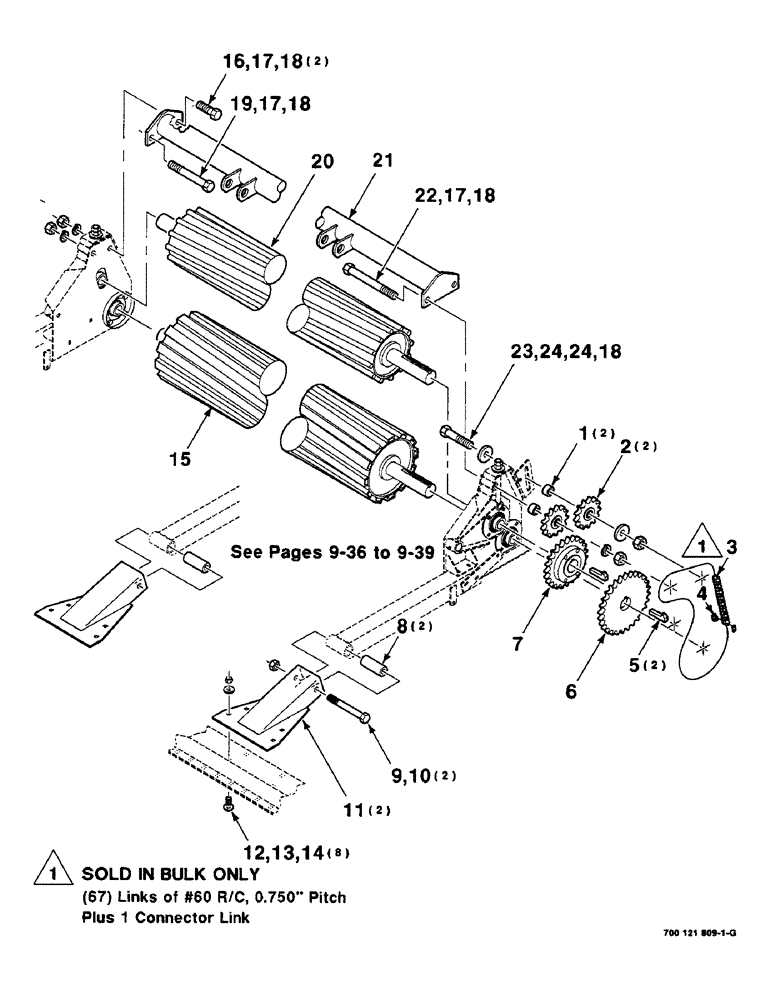

Запчасти Case IH 8830 (9-034) - HAY CONDITIONER KIT, 15 FOOT ONLY, HAY CONDITIONER SERIAL NUMBER HC00400 AND LATER (58) - ATTACHMENTS/HEADERS

HK60631

HAY CONDITIONER KIT COMPLETE

1шт.

1

6368930

BUSHING

SPACER

2шт.

2

154113C91

DRIVE SPROCKET

IDLER - sprocket, 60B13 tooth

2шт.

3

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 Foot bulk)

1шт.

4

241-1416

LINK

- connector, #60 R/C

1шт.

5

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 X 1-1/2 GIB KEY

2шт.

6

85977

SPROCKET ASSY.

SPROCKET - 60B28 tooth

1шт.

7

700121851

SPROCKET ASSY.

SPROCKET WA-60B23 tooth

1шт.

8

700121857

BUSHING

2шт.

9

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

.75 X 5.5 UNC GR5 YZD

2шт.

10

425-1012

NUT,3/4"-10, G5

2шт.

11

700121853

MOUNTING PARTS

MOUNT WA

2шт.

12

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

8шт.

13

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

8шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

15

6180756

ROLLER

ROLL WA-H/C, lower

1шт.

16

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

2шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

425-1010

NUT,5/8"-11, G5

5шт.

19

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

5/8-11 X 4 C

1шт.

20

6233795

ROLLER

ROLL WA-H/C, upper

1шт.

21

700121846

SUPPORT

WA

1шт.

22

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

23

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

24

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.
